Removal and Installation

REMOVAL

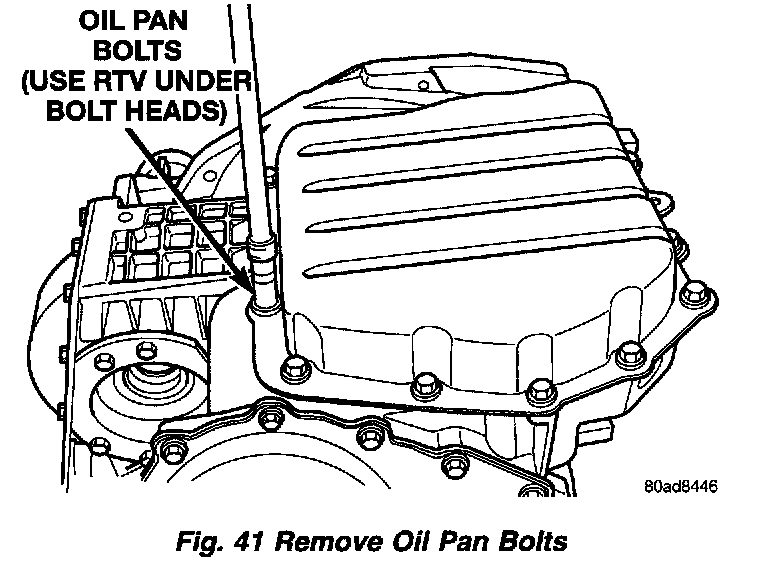

Fig. 41:

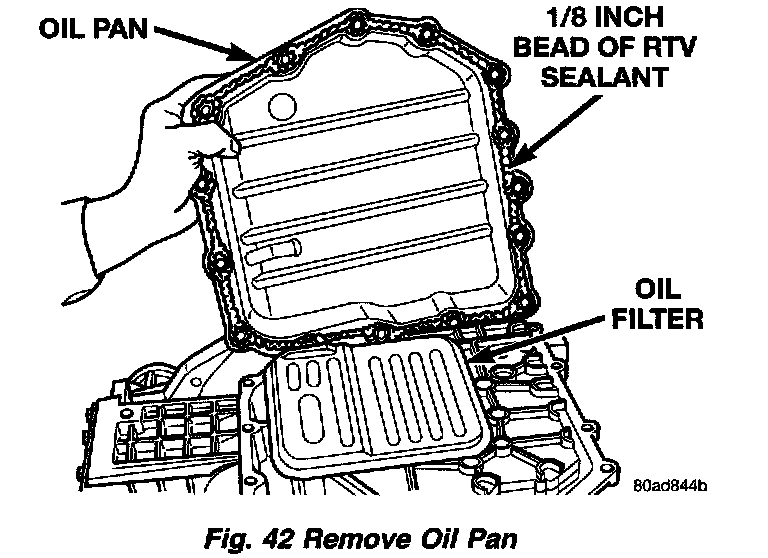

Fig. 42:

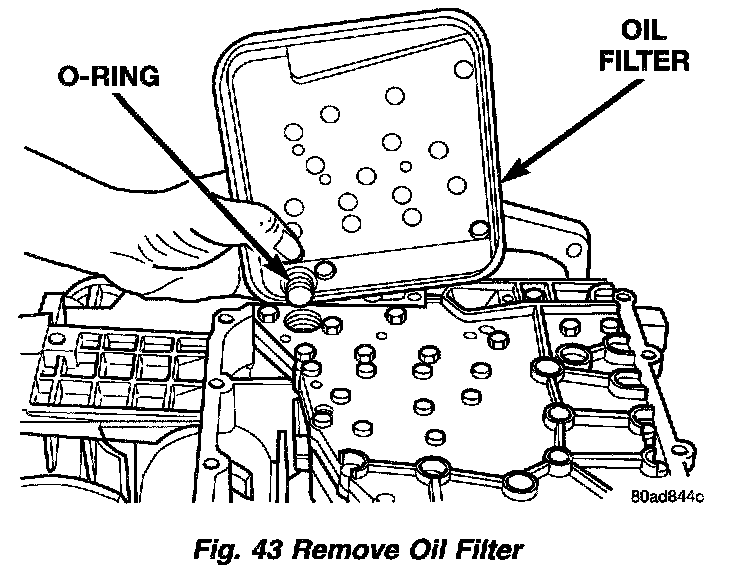

Fig. 43:

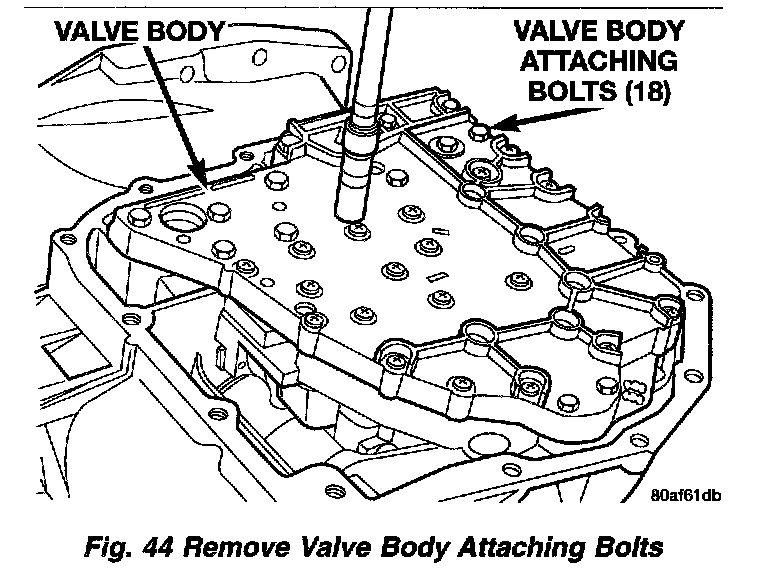

Fig. 44:

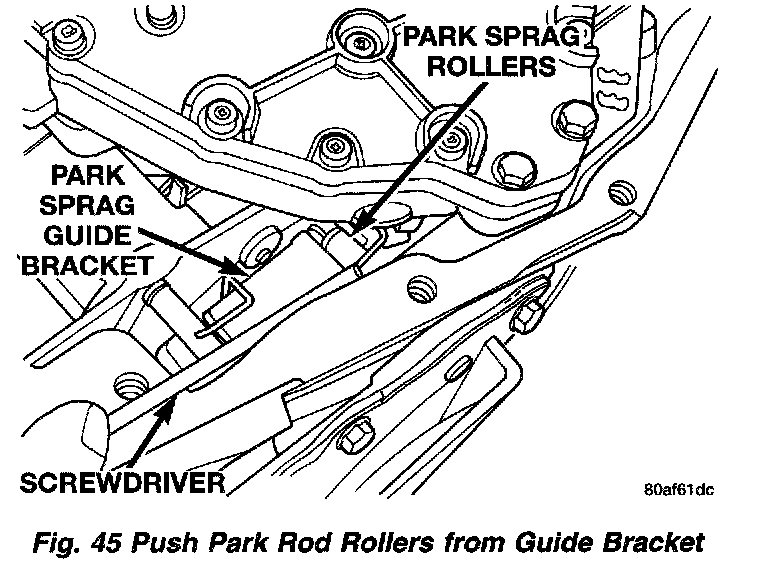

Fig. 45:

NOTE: To ease removal of the valve body, turn the manual valve lever fully clockwise.


INSTALLATION

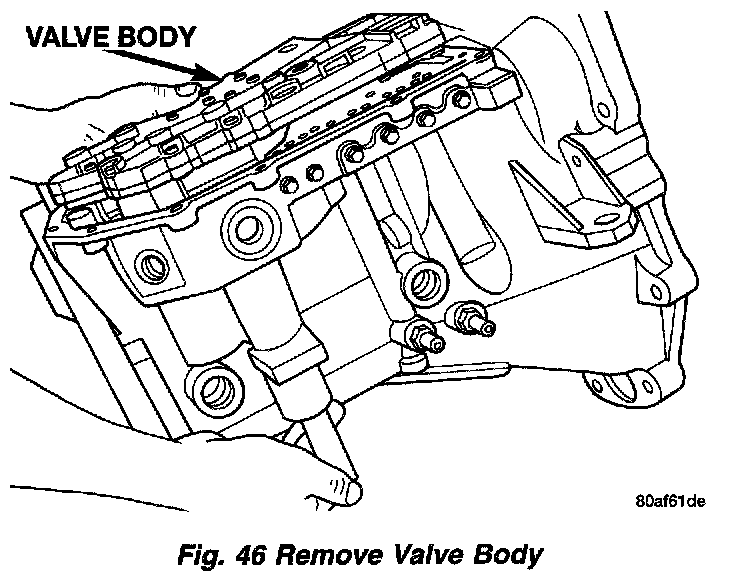

Fig. 46:

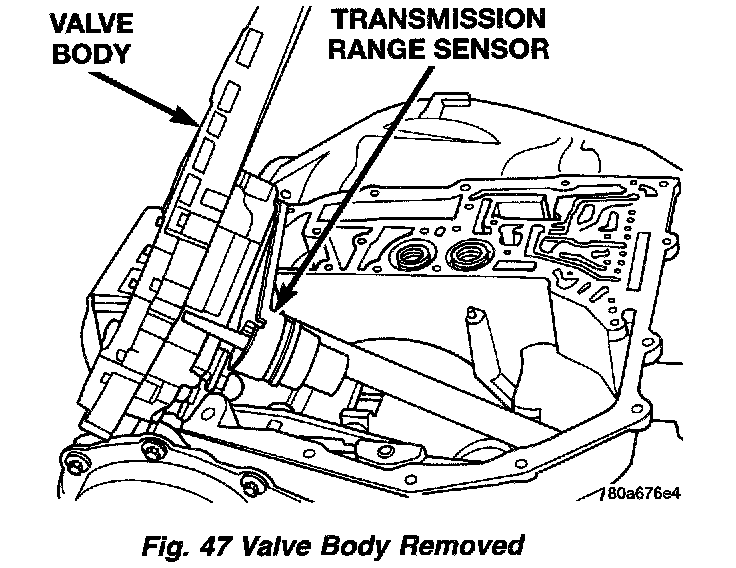

Fig. 47:

To install valve body, reverse removal procedure.

CAUTION: The valve body manual shaft pilot may distort and bind the manual valve if the valve body is mishandled or dropped.

NOTE: To ease installation of the valve body, turn the manual valve lever fully clockwise.

Guide park rod rollers into guide bracket, while shifting manual lever assembly out of the installation position.
