Home >> Dodge >> 1999 >> Stratus L4-2.0L VIN C >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Valve Body >> Locations

Valve Body: Locations

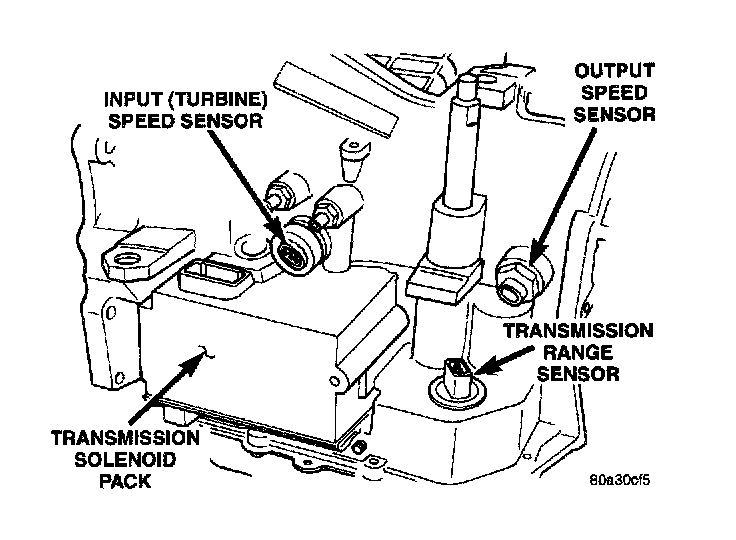

Input (Turbine) Speed Sensor, Output Speed Sensor, Transmission Range Sensor, Transmission Solenoid Pack:
