Steering Column: Description and Operation

Steering Column:

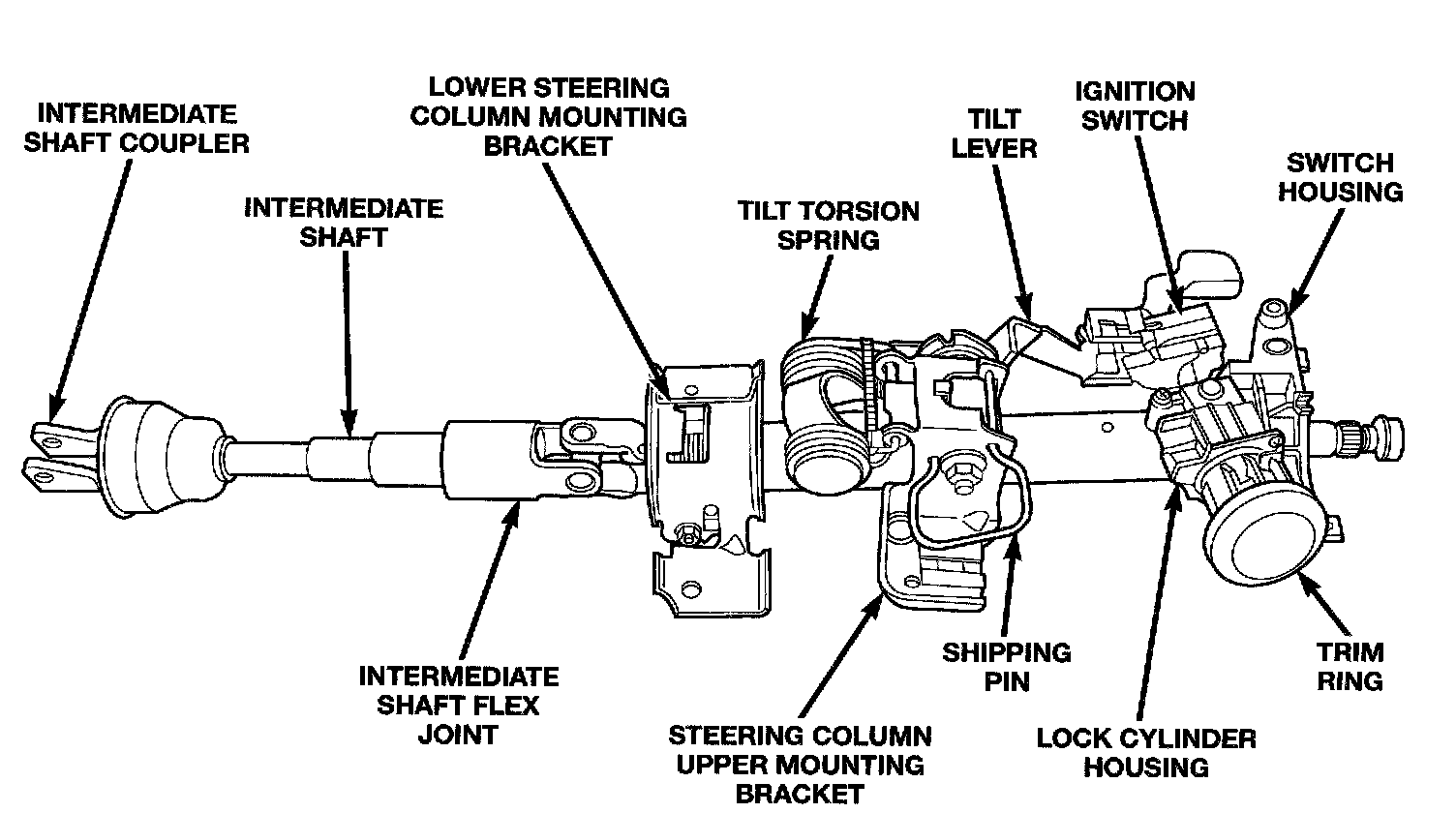

The steering column used in this vehicle has been designed to be serviced only as a complete assembly if it is determined to be defective. The replaceable components mounted on the steering column assembly are the key cylinder, ignition switch, multi-function switch, clockspring, speed control switches, lock cylinder trim ring, SKIM module, trim shrouds, driver airbag and steering wheel. These replaceable components of the steering column can be serviced without requiring removal of the steering column from the vehicle.
