Power Steering Fluid Cooler: Service and Repair

REMOVAL
1. Raise vehicle using a frame contact type hoist or supported as required using jack stands using proper vehicle lifting procedures.
2. Remove the front fascia and the grill as an assembly from the vehicle.

Hose Clamps At Power Steering Fluid Cooler:

3. Remove the crimp clamps from the power steering fluid hoses. Drain power steering fluid from the hoses and the power steering fluid cooler.

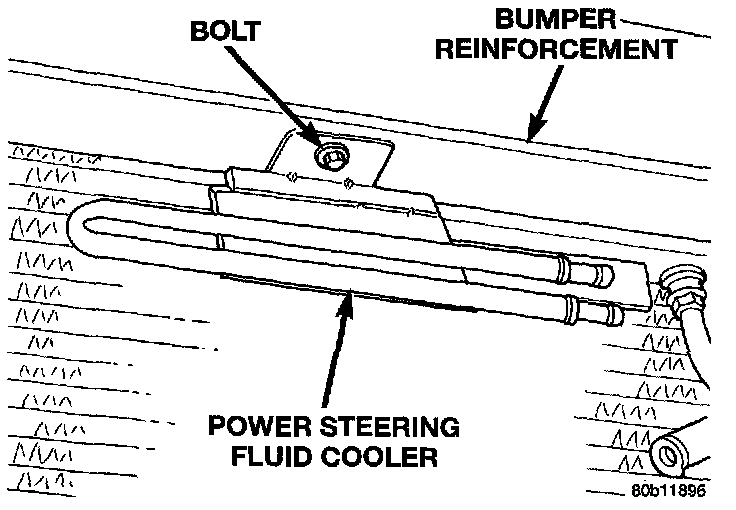

Power Steering Fluid Cooler Attachment:

4. Remove bolt attaching the power steering fluid cooler to the bumper reinforcement.

INSTALLATION
1. Install the power steering fluid cooler on the bumper reinforcement as shown.
2. Install bolt attaching the power steering fluid cooler to the bumper reinforcement. Tighten the attaching bolt to a torque of 7 Nm (60 inch lbs.).
3. Install power steering fluid hoses on the power steering fluid cooler. Install NEW crimp style hose clamps on the power steering fluid hoses. Be sure hose clamps are installed on hose past the upset bead on the power steering oil cooler.
4. Install the front fascia and grill on the vehicle.
5. Lower the vehicle to a point where front tires are just off the ground.
6. Start the engine and let run for a few seconds. Then turn the engine off.
7. Add fluid if necessary. Repeat the above procedure until the fluid level remains constant after running the engine.
8. Start the engine. Slowly turn the steering wheel right and left, lightly contacting the wheel stops.
9. Add power steering fluid if necessary.
10. Stop the engine. Check the fluid level and refill as required.
11. If the fluid is extremely foamy, allow the vehicle to stand a few minutes and repeat the above procedure.
