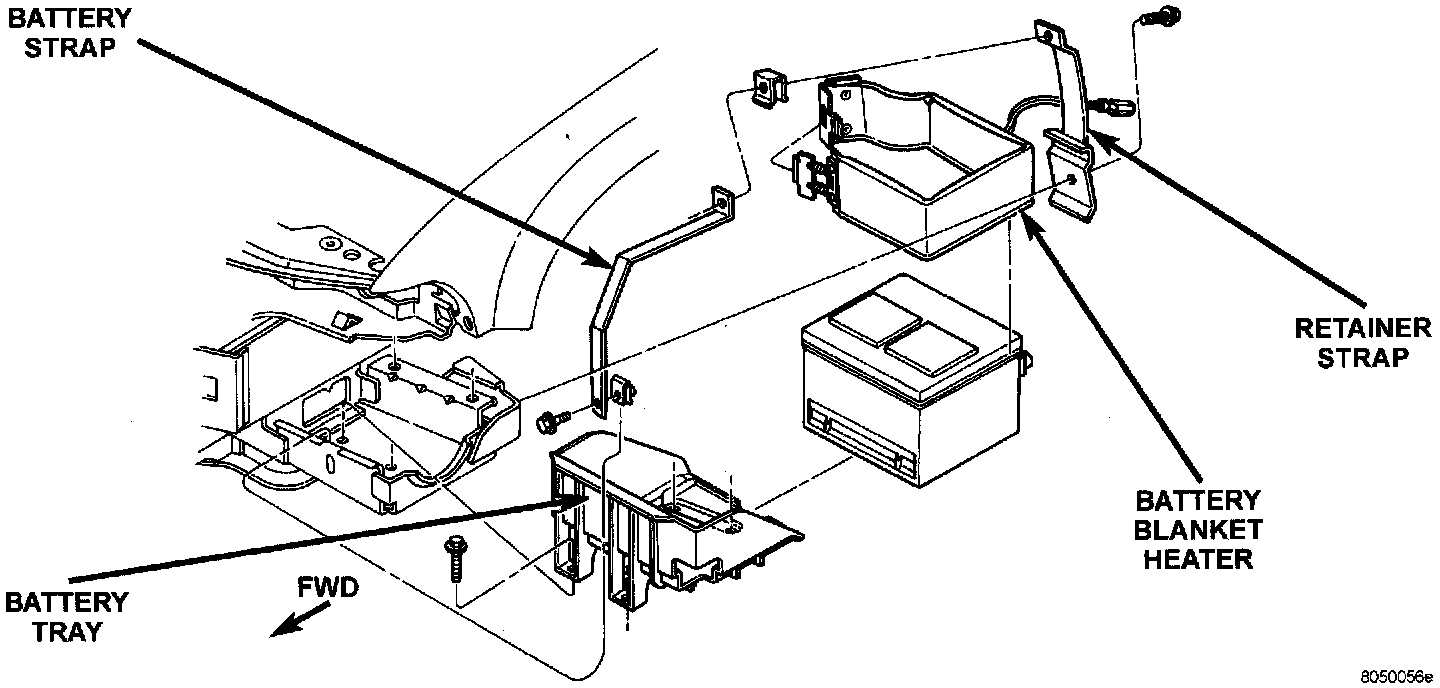

Battery Tray Replacement
REMOVAL1. Remove battery.
Battery Tray Removal:
2. Remove the battery tray attaching bolts.
3. Remove battery tray.
4. Remove battery strap.
INSTALLATION
- For installation, reverse the above procedures.
1. Remove battery.
2. Remove the battery tray attaching bolts.
3. Remove battery tray.
4. Remove battery strap.
INSTALLATION
- For installation, reverse the above procedures.
