Back-Up Lamp Problem

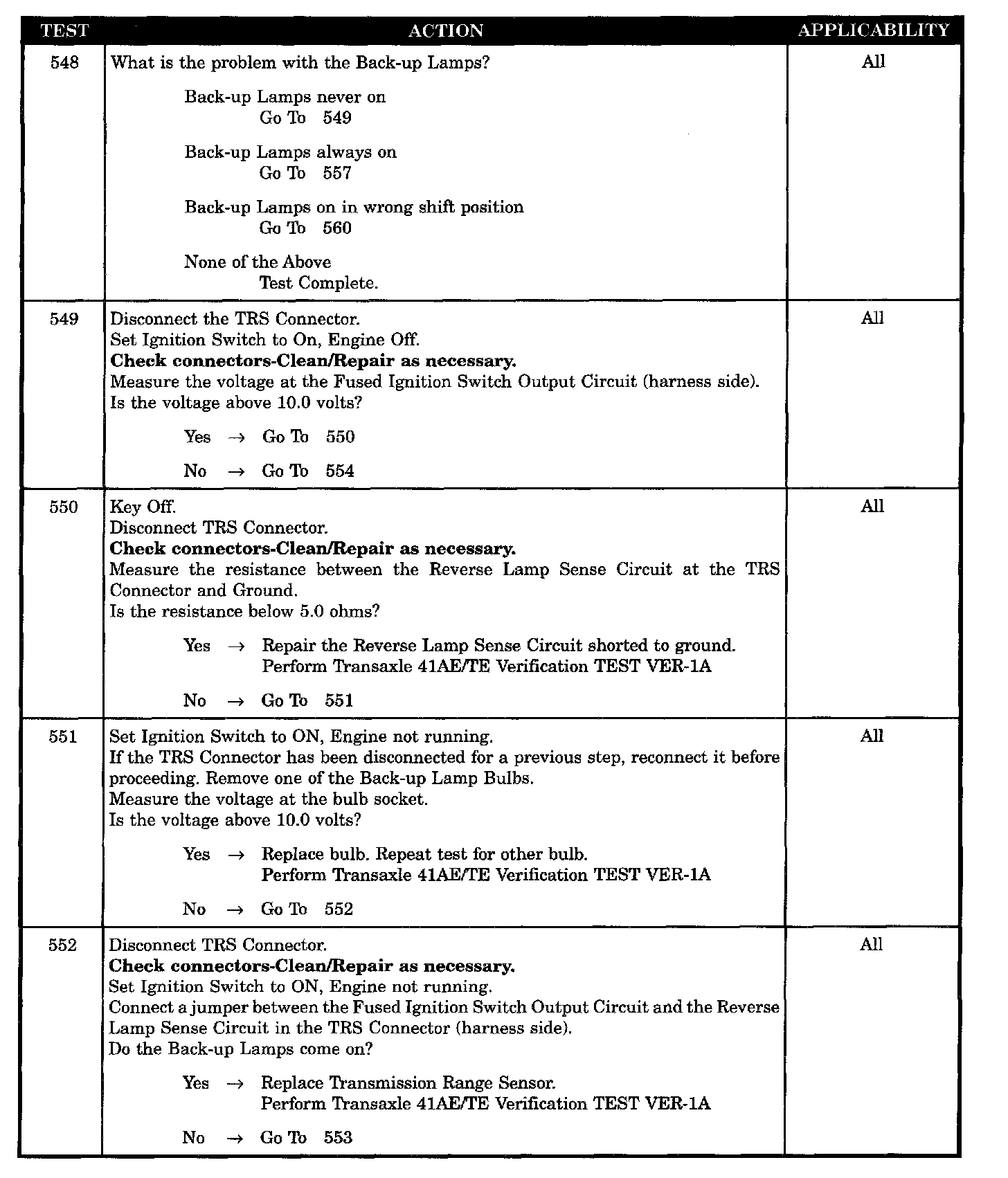

Test 548 Through 552:

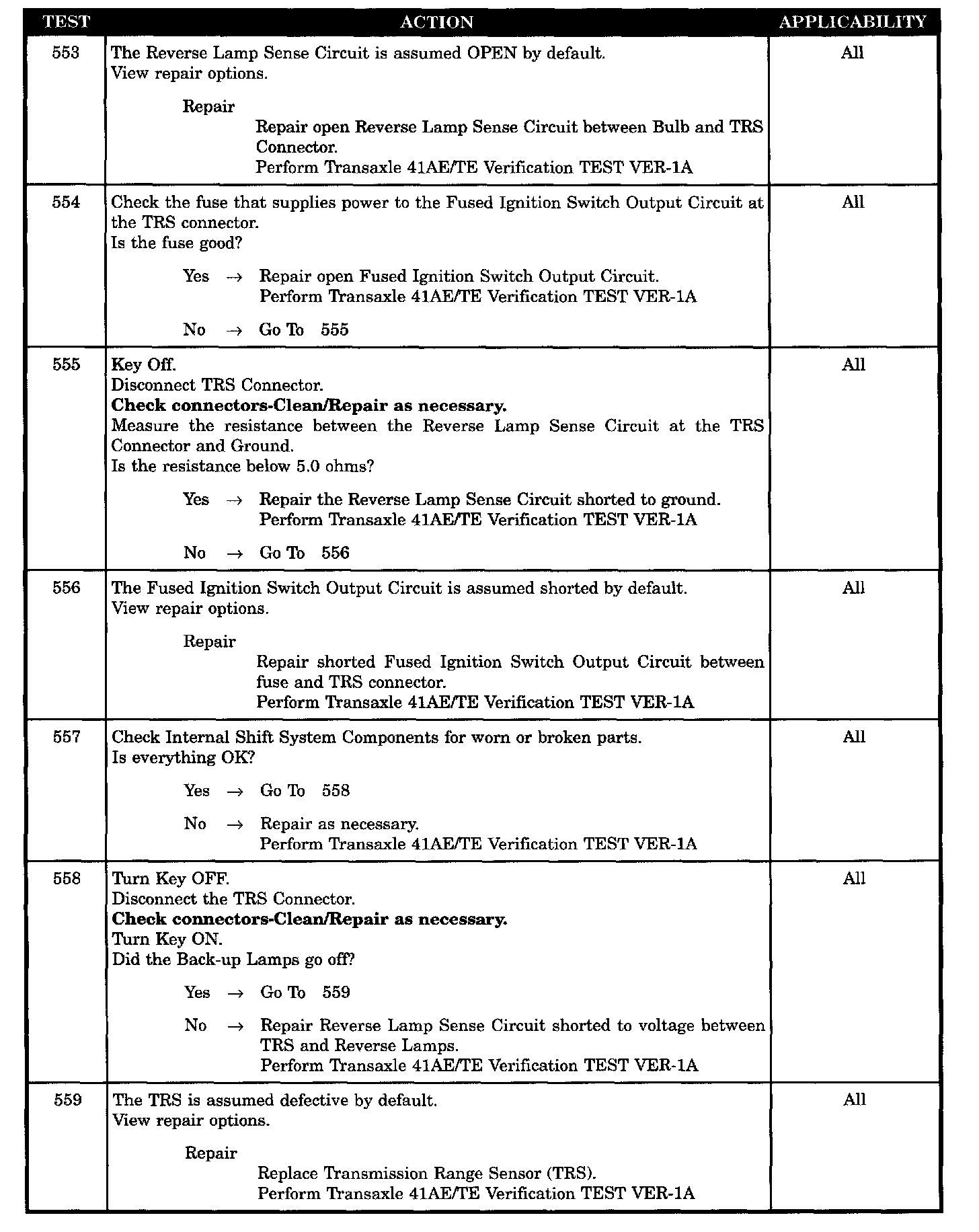

Test 553 Through 559:

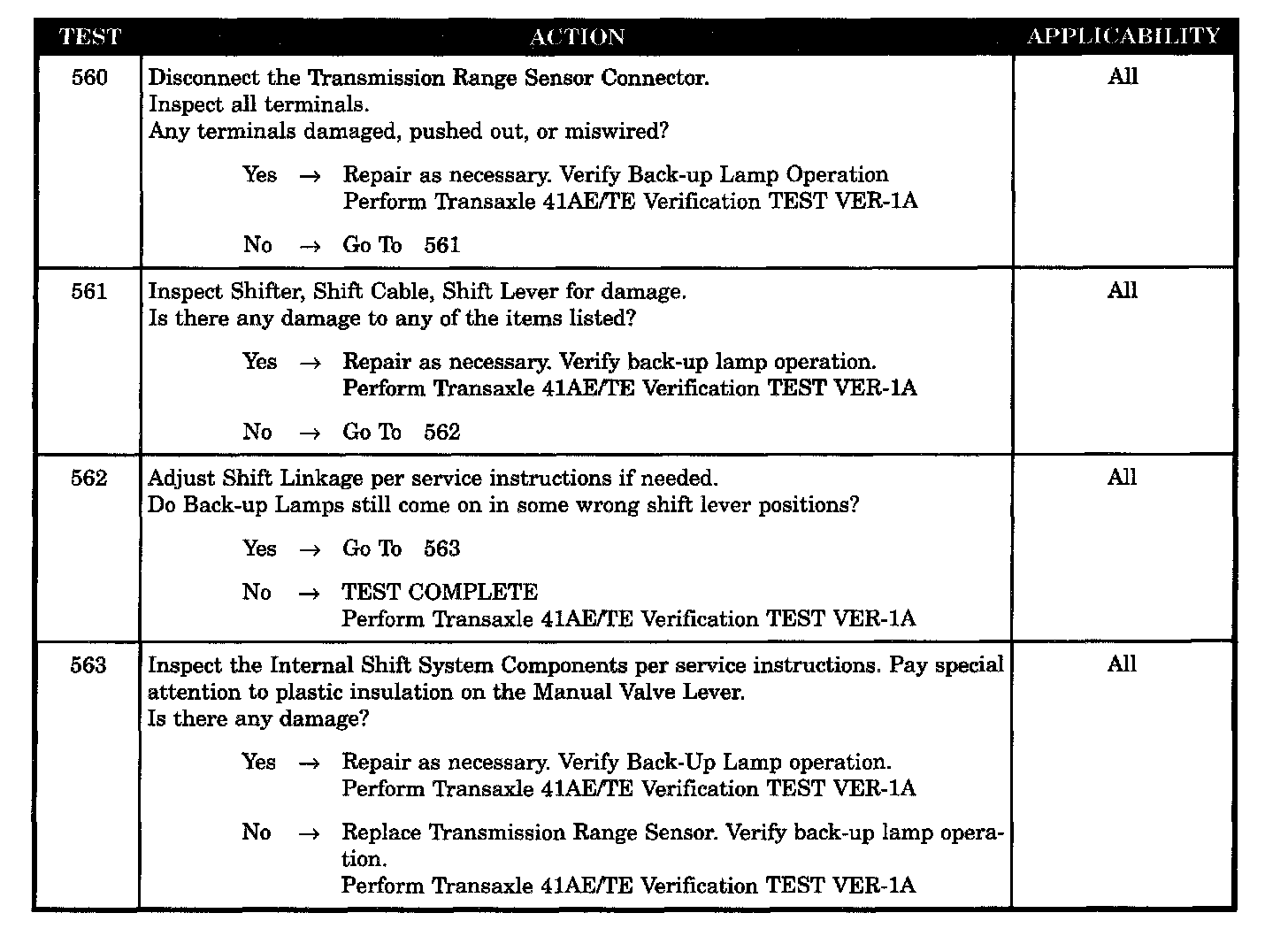

Test 560 Through 563:

Symptom:
* BACK-UP LAMP PROBLEM

POSSIBLE CAUSES
FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN
FUSED IGNITION SWITCH OUTPUT CIRCUIT TO TRS SHORTED
TRS CONNECTOR DAMAGED
TRS REVERSE SWITCH ALWAYS CLOSED
TRS REVERSE SWITCH DEFECTIVE
TRS SWITCHES CLOSE IN WRONG POSITION
BACK-UP LAMP BULB DEFECTIVE
INTERNAL SHIFT SYSTEM COMPONENTS DAMAGED
INTERNAL SHIFT SYSTEM COMPONENTS WORN OR BROKEN PARTS
REVERSE LAMP SENSE CIRCUIT OPEN
REVERSE LAMP SENSE CIRCUIT SHORTED TO GND
REVERSE L.AMP SENSE CIRCUIT SHORTED TO VOLTAGE
SHIFTER LINKAGE OUT OF ADJUSTMENT
SHIFTER, SHIFT CABLE, SHIFT LEVER DAMAGE
