Fuel Filler Hose: Service and Repair

REMOVAL
1. Loosen fuel filler tube cap.

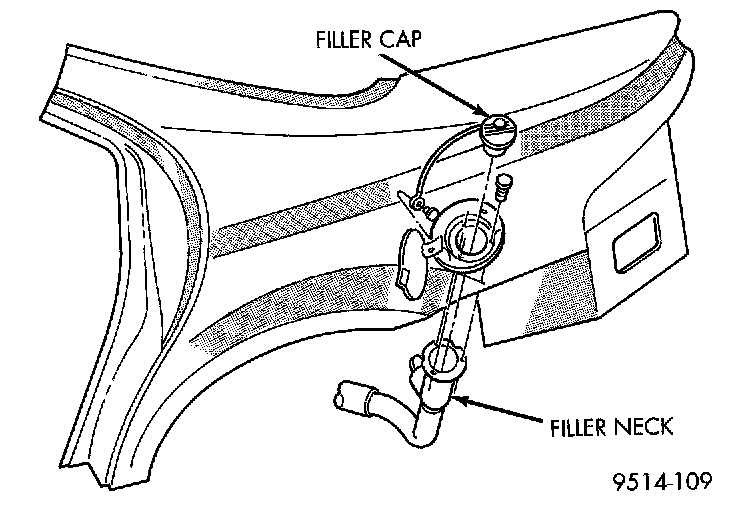

Fuel Filler Neck Removal/Installation:

2. Remove fuel filler neck screws.
3. Disconnect Ground strap from body.
4. Disconnect fuel filler tube hose from fuel tank neck. Remove fuel filler tube assembly.

INSTALLATION
1. Reverse for installation.
