Home >> Dodge >> 1999 >> Stratus L4-2.0L VIN C >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Injector >> Testing and Inspection

Fuel Injector: Testing and Inspection

Fuel Injector Diagnosis:

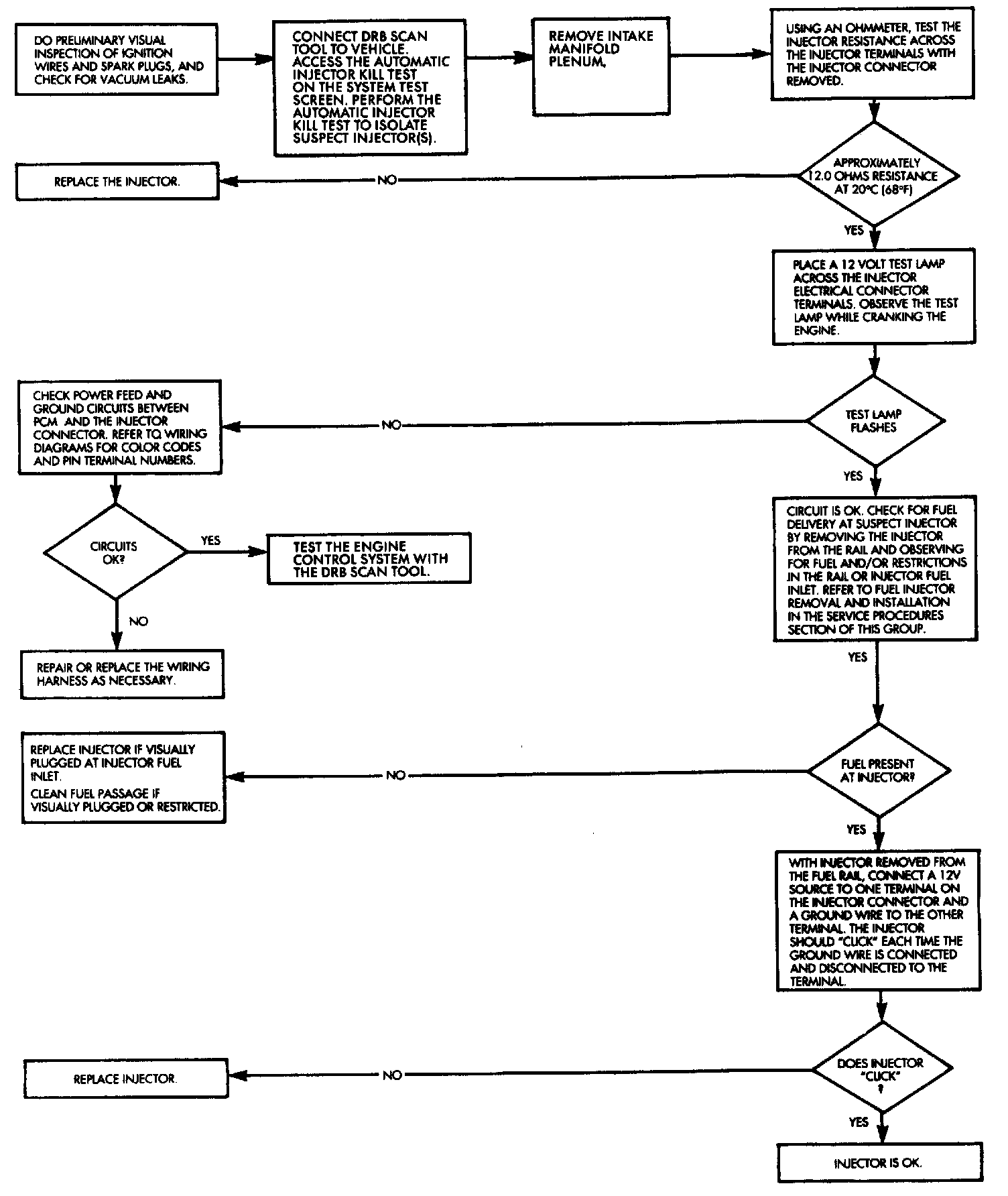

For Fuel Injector Diagnosis, refer to the Fuel Injector Charts
