Home >> Dodge >> 1999 >> Stratus L4-2.0L VIN C >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> EGR Control Solenoid >> Locations

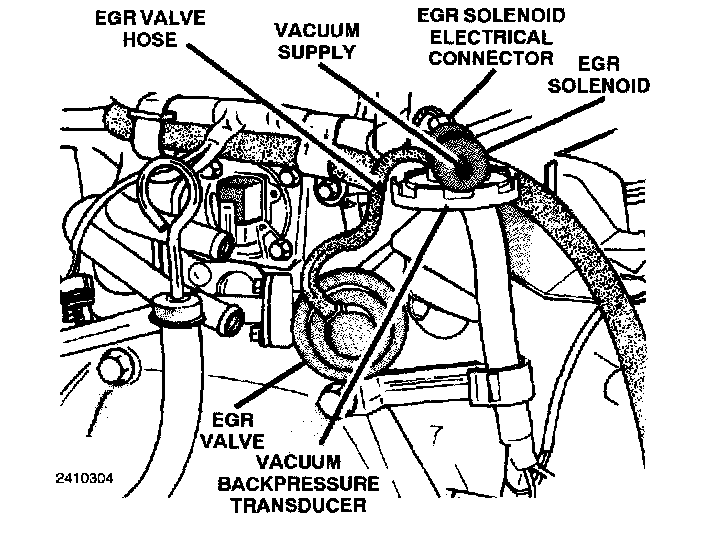

EGR Control Solenoid: Locations

EGR Valve Hose, Vaccum Supply, EGR Solenoid Electrical Connector, EGR Solenoid, Vaccum Backpressure Transducer, EGR Valve:
