No Crank Condition

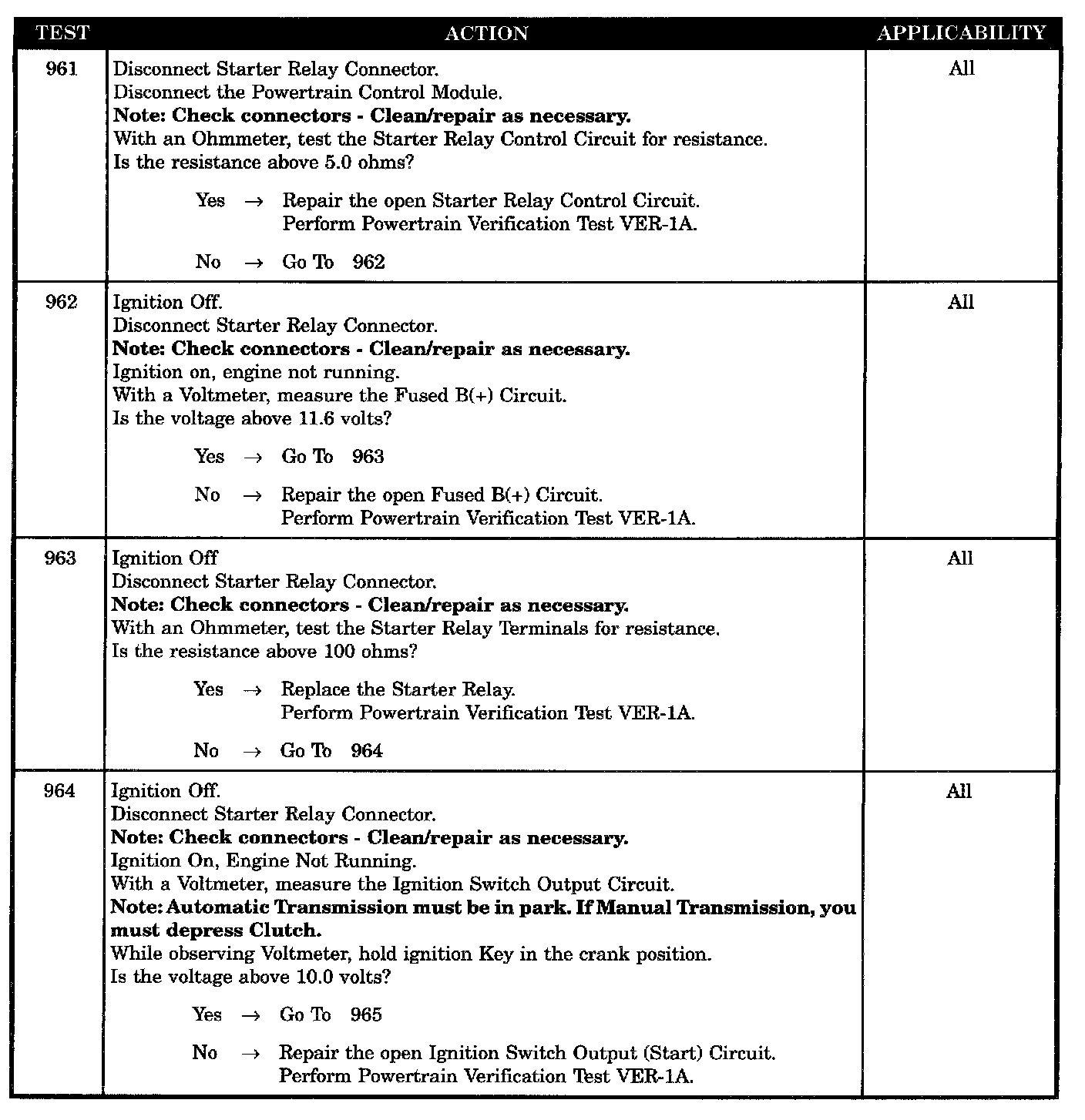

Tests 961 - 964:

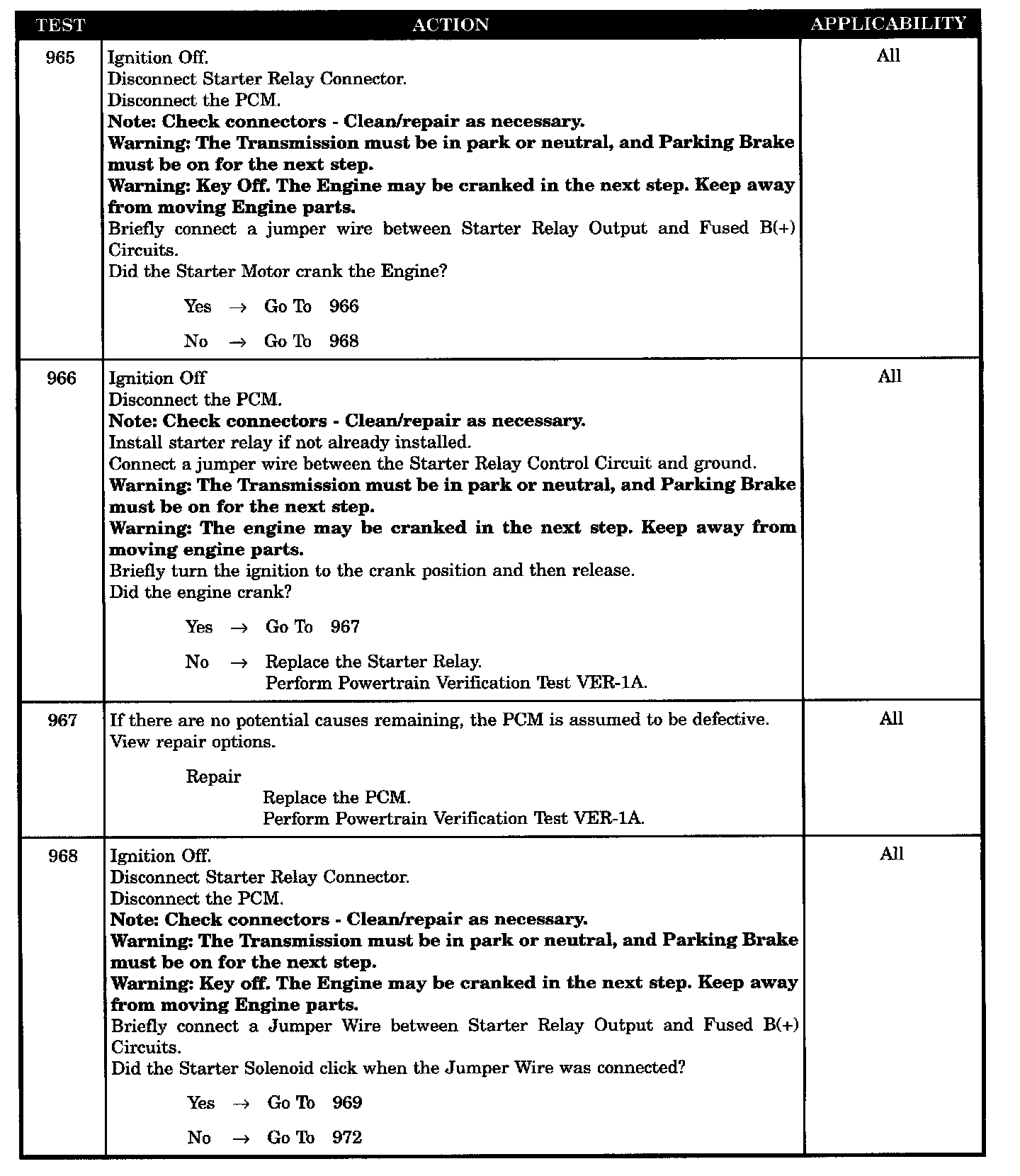

Tests 965 - 968:

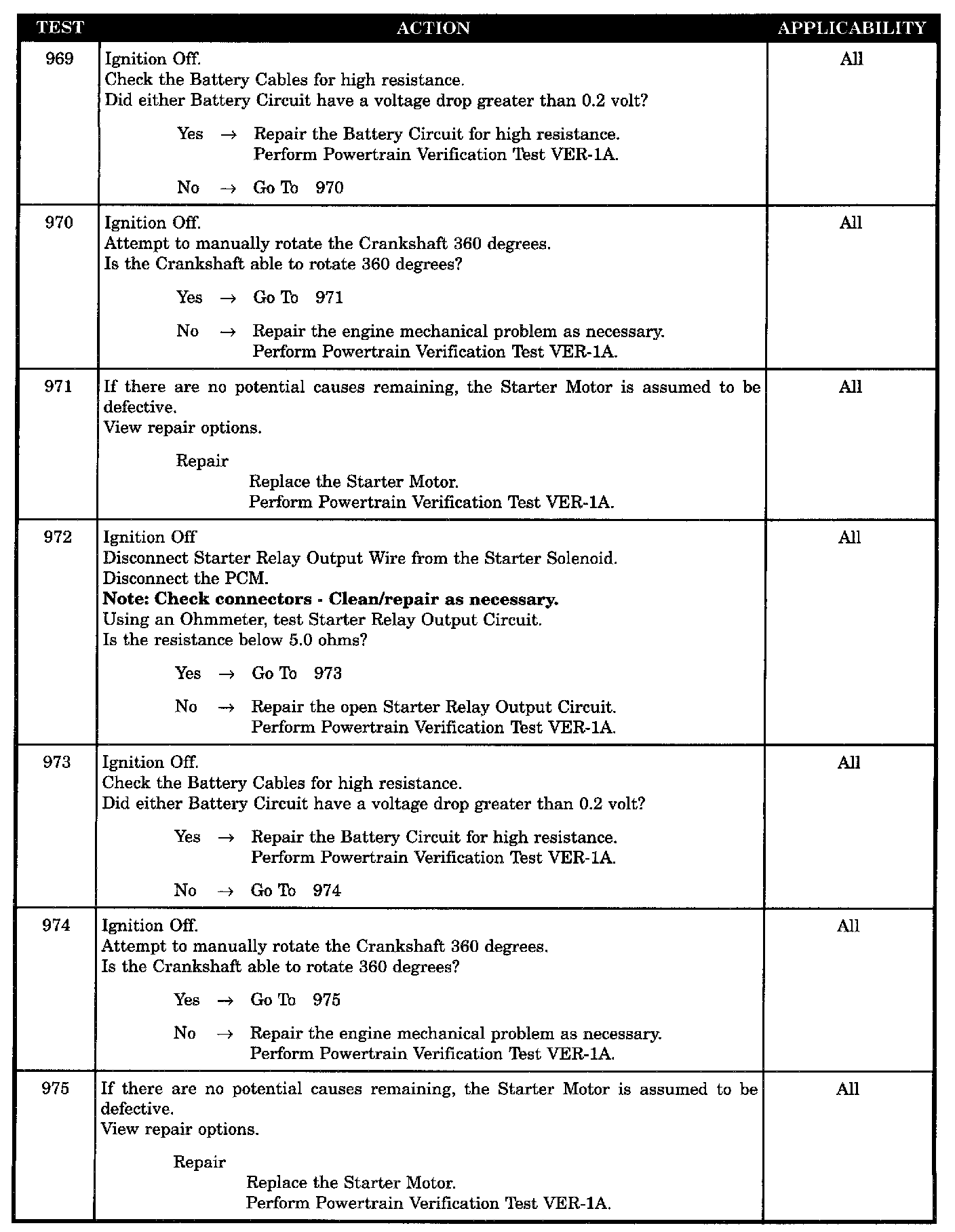

Tests 969 - 975:

SYMPTOM
* NO CRANK CONDITION

POSSIBLE CAUSES
- Battery circuit high resistance
- Starter relay output circuit open
- Engine mechanical problem
- PCM defective
- Starter motor defective
- Starter relay defective
- Fused B(+) circuit open
- Ignition switch output circuit open
- Starter relay control circuit open
- Starter relay defective
