Fuel Pump Inoperative

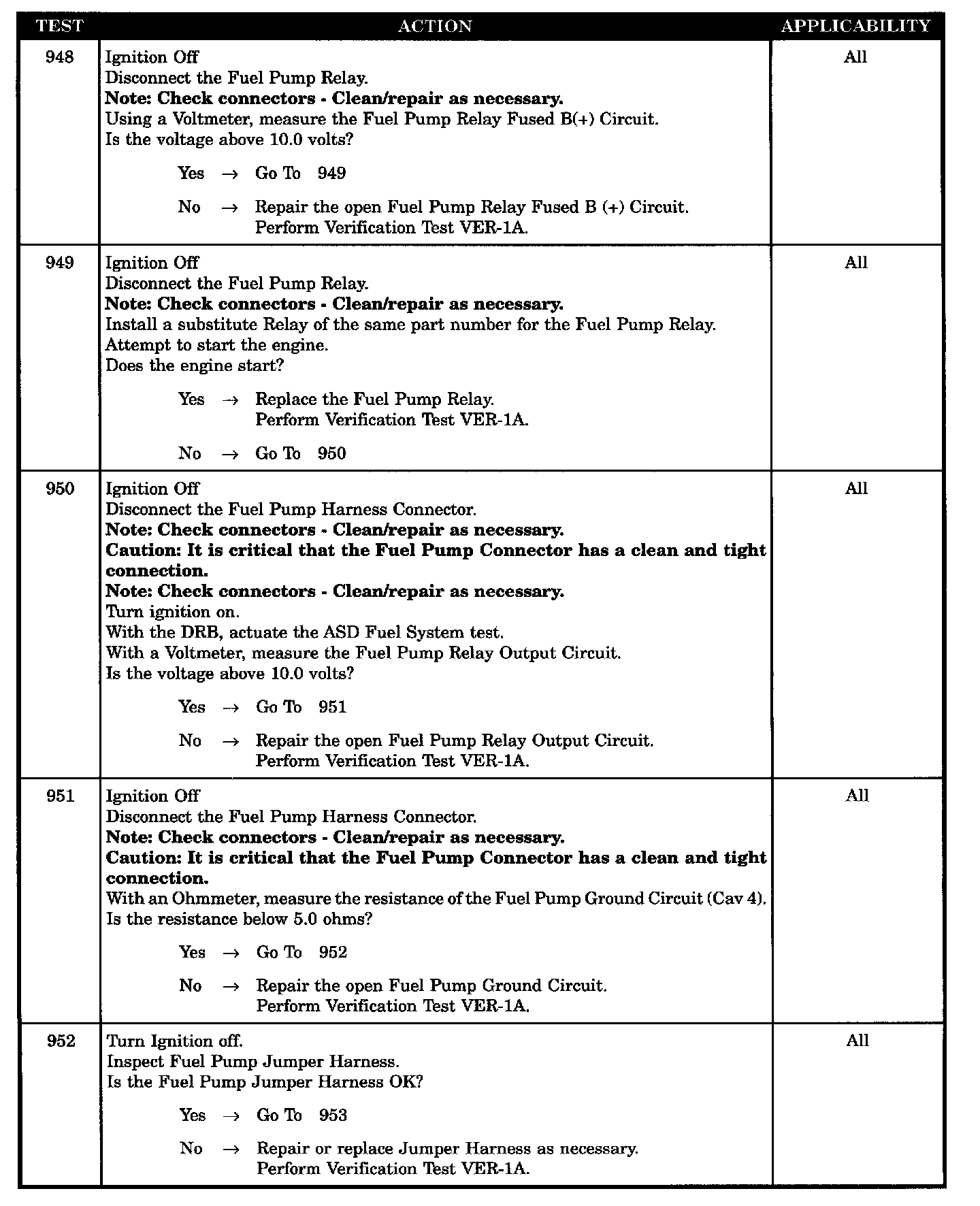

Tests 948 - 952:

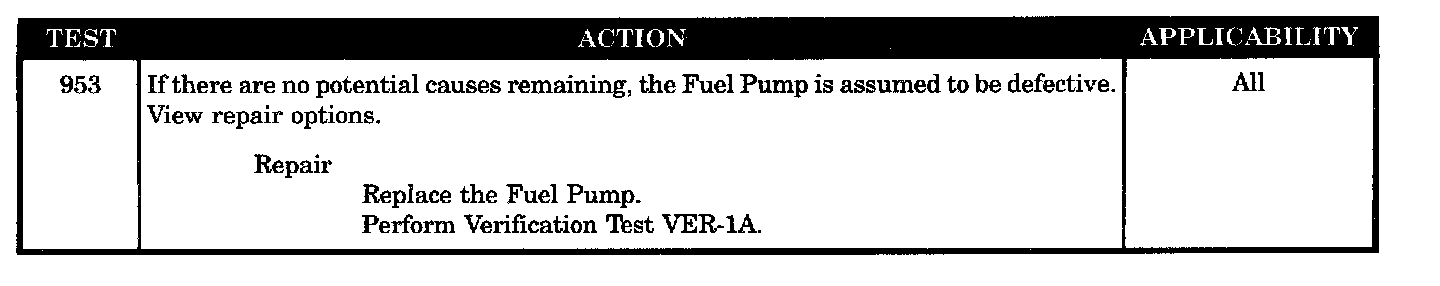

Test 953:

SYMPTOM
* FUEL PUMP INOPERATIVE

POSSIBLE CAUSES
- Fuel pump relay defective
- Fuel pump defective
- Fuel pump ground circuit open
- Fuel pump relay fused B(+) circuit open
- Fuel pump relay output circuit open
- Jumper wiring defective
