Checking Fuel System

Tests 939 - 944:

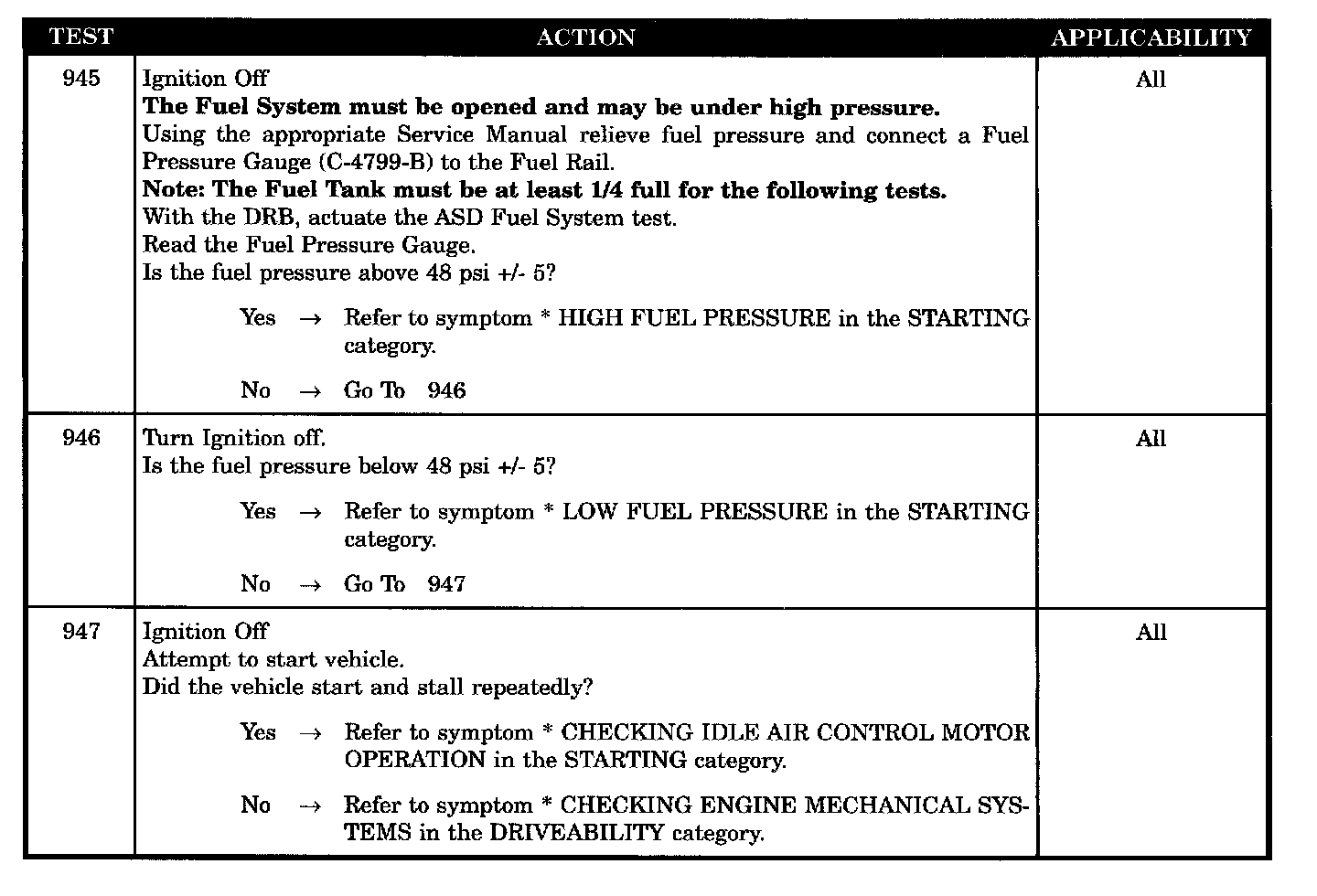

Tests 945 - 947:





SYMPTOM
* CHECKING FUEL SYSTEM

POSSIBLE CAUSES
- Throttle position sensor defective
- Throttle stuck open
- Powertrain control module defective
