Removal

1. Disconnect negative cable from auxiliary jumper terminal.
2. Remove accessory drive belts.

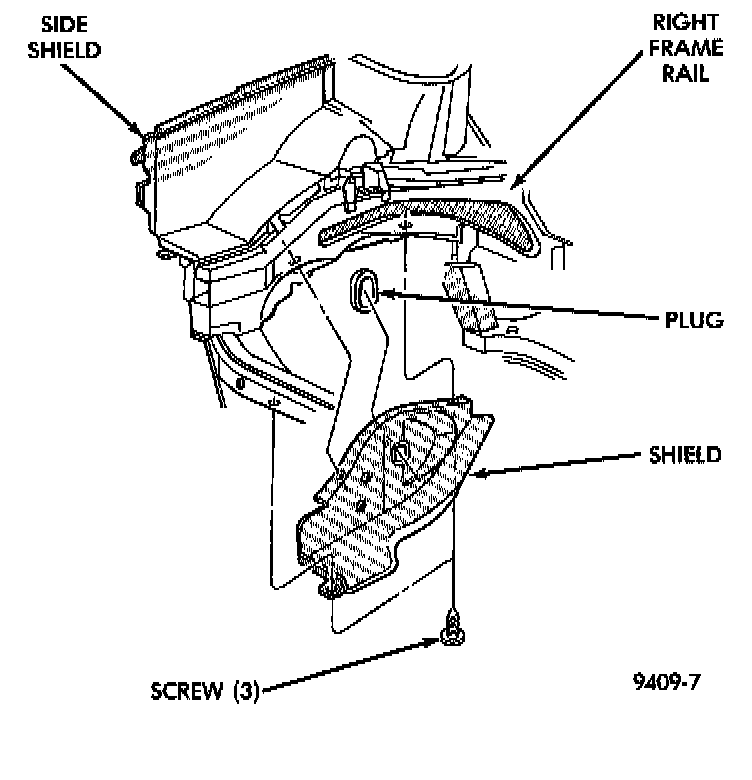

Right Inner Splash Shield:

3. Raise vehicle on a hoist and remove right inner splash shield.

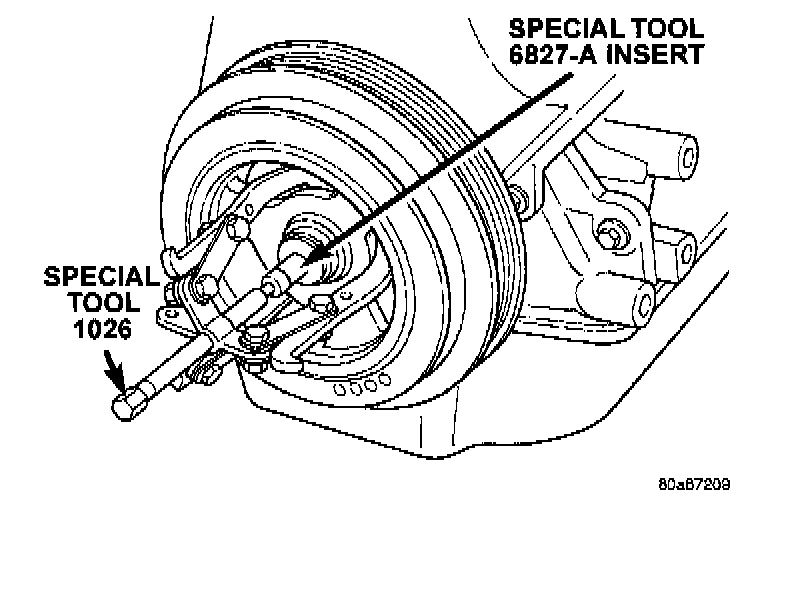

Crankshaft Damper - Removal:

4. Remove crankshaft damper bolt. Remove damper using the large side of Special Tool 1026 and insert 6827-A.
5. Lower vehicle and place a jack under engine.
6. Remove right engine mount.

Generator And Brackets:

7. Remove generator and bracket.

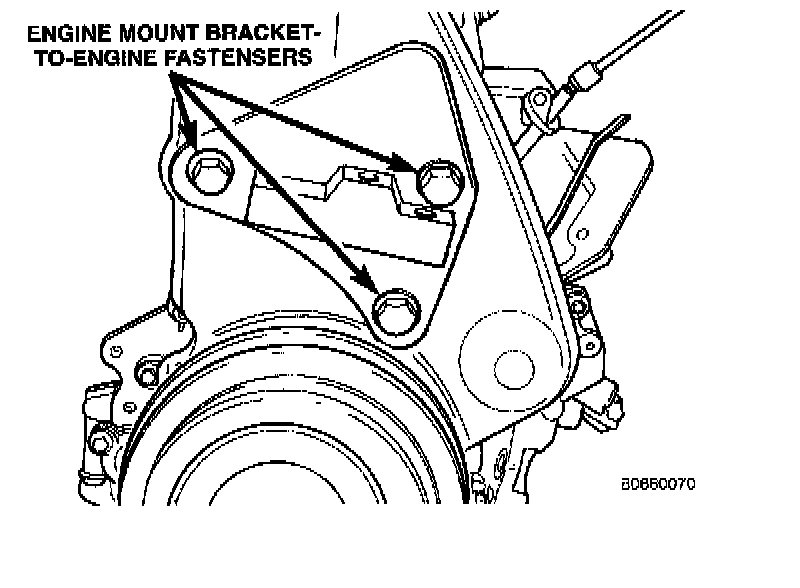

Right Engine Mount Brackets:

8. Remove right engine mount bracket.

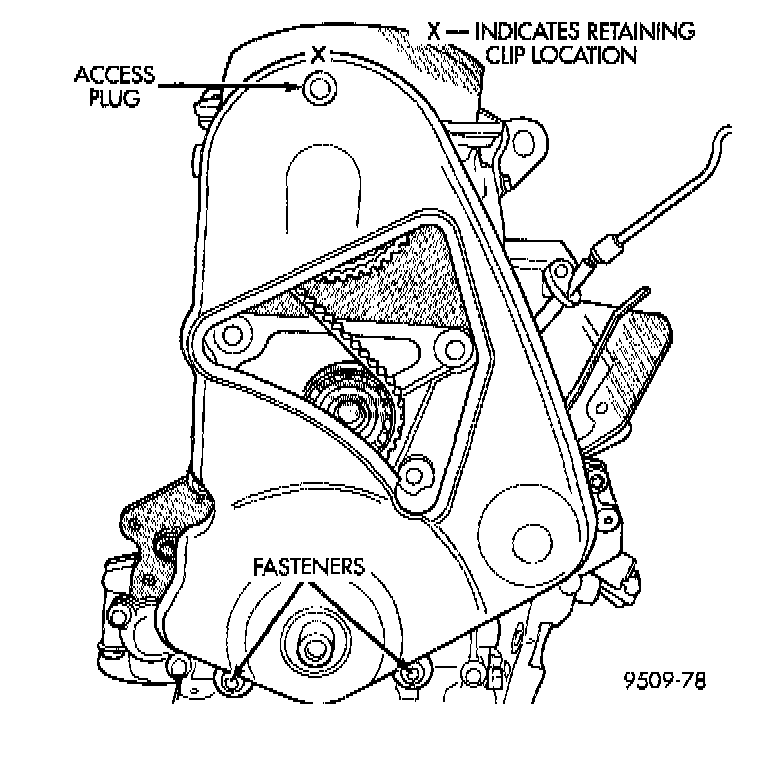

Timing Belt Cover:

9. Remove front timing belt cover.

CAUTION: Align camshaft and crankshaft timing marks before removing the timing belt.

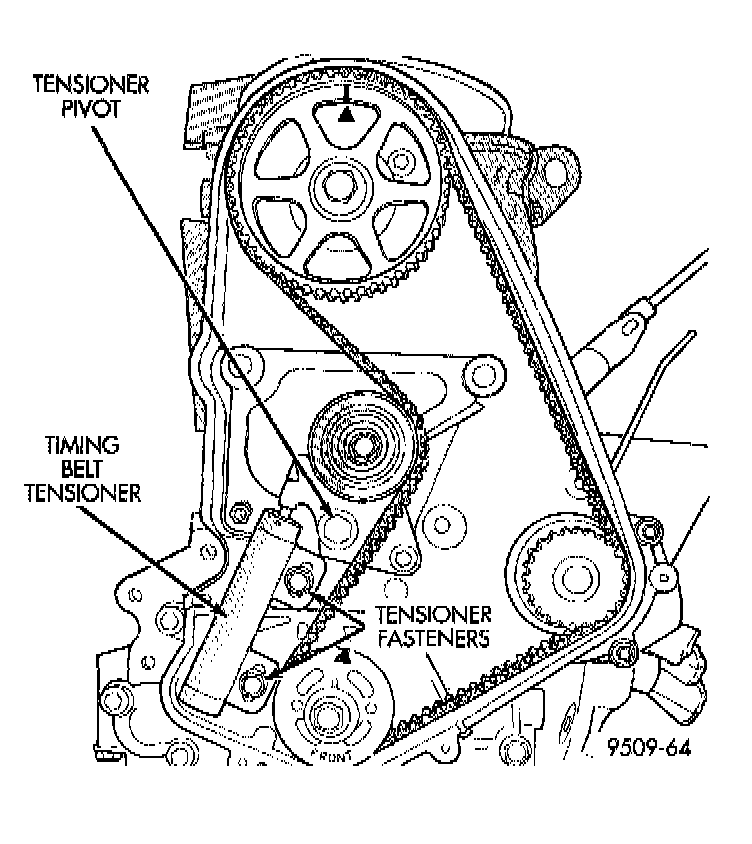

Remove Timing Belt:

10. Loosen timing belt tensioner fasteners and remove timing belt and tensioner.

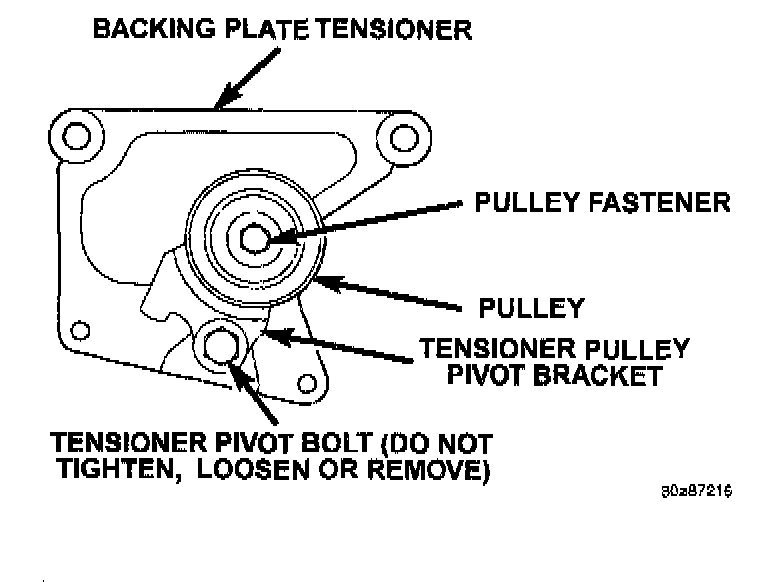

Tensioner Pulley Assembly:

CAUTION: Do not loosen, tighten, or remove the tensioner pivot bolt.
