Removal

REMOVAL
1. Using a siphon pump, remove as much power steering fluid as possible from the remote power steering fluid reservoir.

CAUTION: Care must be used when removing the power steering fluid supply hose from power steering fluid reservoir. If excessive force is used when trying to remove hose from nipple on power steering fluid reservoir, nipple can break off of the reservoir.

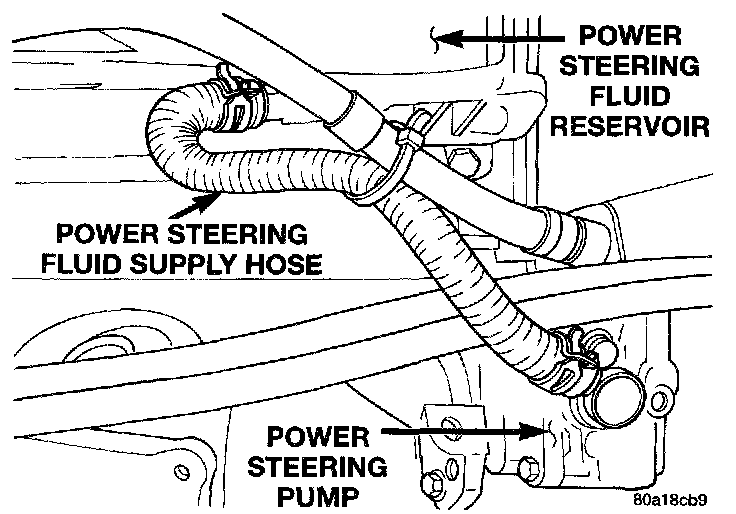

Power Steering Fluid Supply Hose 2.0 And 2.4 Liter Engine:

2. Remove the tie-strap holding the power steering fluid supply hose to the power steering pressure hose.
3. Remove hose clamp, attaching power steering fluid supply hose to power steering fluid reservoir. Then remove power steering fluid supply hose from power steering fluid reservoir.
4. Remove hose clamp, attaching power steering fluid supply hose to the power steering pump. Then remove power steering fluid supply hose from power steering pump fitting.
5. Remove power steering fluid supply hose from engine.
