A/C Belt

Air Conditioning Compressor And Generator Belt Adjustment:

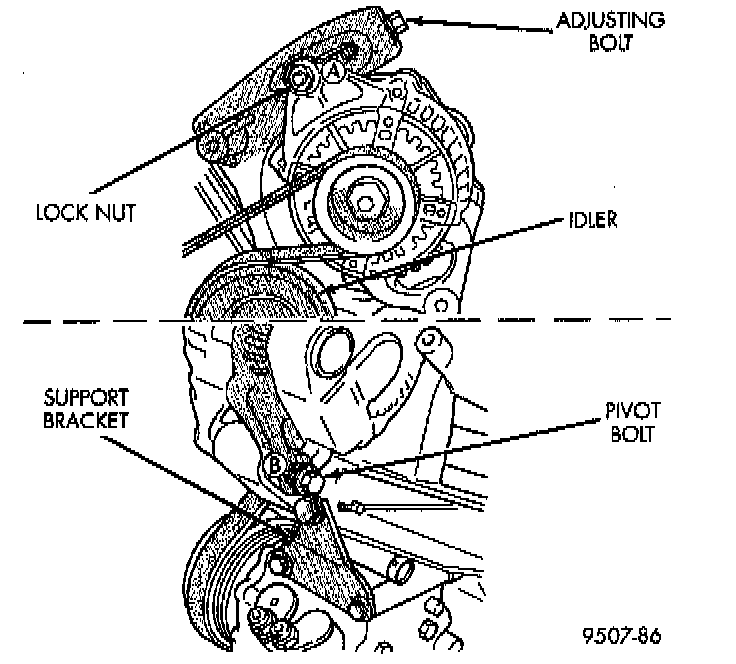

1. Loosen T-Bolt locking nut A and pivot bolt B to remove and install Poly V belt and/or adjust belt tension.
2. Tighten adjusting bolt to adjust belt tension to specification shown in Belt Tension Chart.
3. Tighten T-Bolt locking nut A and pivot bolt B to 54 Nm (40 ft. lbs.).





Belt Tension Chart
