Turn Signal Bulb: Service and Repair

REMOVAL
1. Release hood latch and open hood.
2. Remove screws holding park and turn signal lamp to headlamp module.
3. Remove headlamp from module from radiator closure panel.
4. Remove socket counter clockwise one quarter turn.

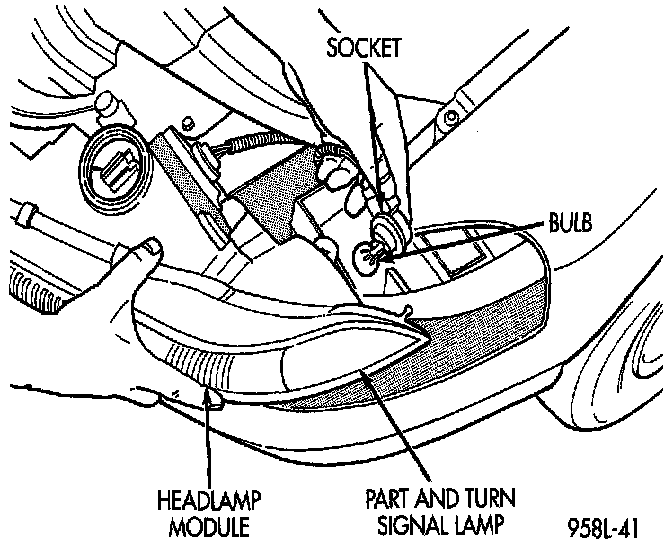

Park And Turn Signal Lamp Bulb:

5. Pull socket from back of lamp
6. Pull bulb from socket.

INSTALLATION
- Reverse the preceding operation.
