License Plate Lamp: Service and Repair

REMOVAL

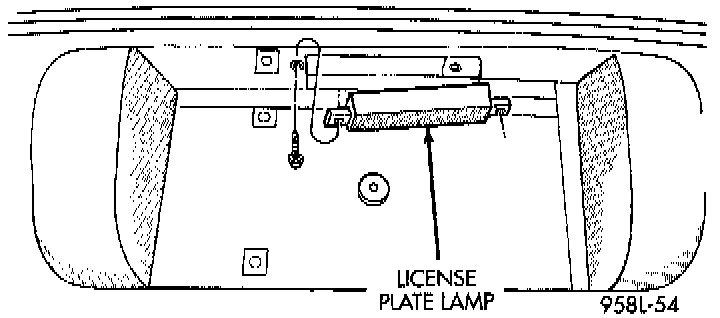

License Plate Lamp:




1. Remove screws attaching license plate lamp to rear bumper fascia.
2. Remove license plate lamp from fascia.
3. Remove socket from lamp.
4. Remove lamp from vehicle.

INSTALLATION
- Reverse the preceding operation.
