License Plate Bulb: Service and Repair

REMOVAL

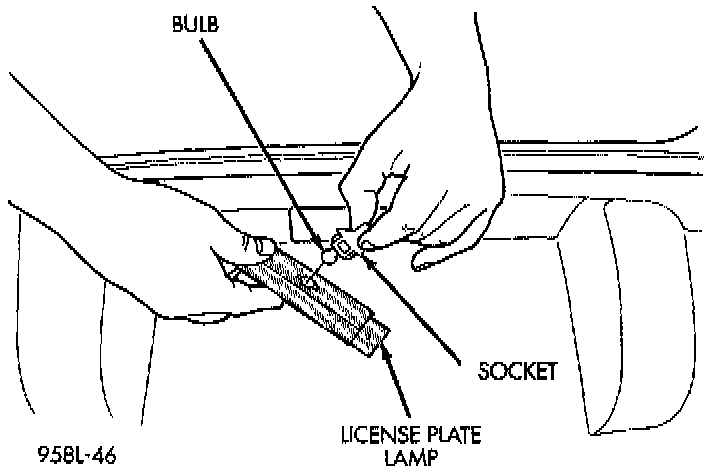

License Plate Lamp Bulb:




1. Remove screws holding license plate lamp to rear bumper fascia.
2. Remove license plate lamp from rear fascia.
3. Rotate socket counterclockwise one quarter turn.
4. Pull socket from back of lamp.
5. Pull bulb from socket.

INSTALLATION
- Reverse the preceding operation.
