Headlamp: Service and Repair

Housing Replacement

The headlamp module contains the park and turn signal lamps and is serviced as an assembly.

REMOVAL
1. Release hood latch and open hood.

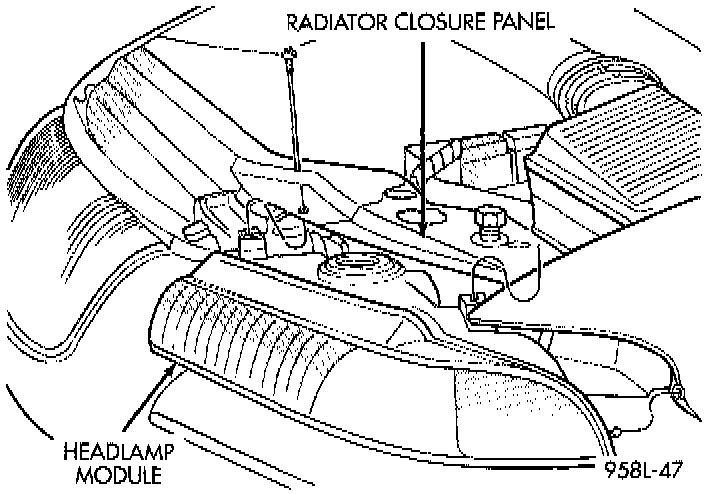

Headlamp Module:

2. Remove screws holding headlamp module to radiator closure panel.
3. Separate headlamp module from radiator closure panel.
4. Disengage wire connector from back of headlamp bulb.
5. Rotate Park lamp socket counterclockwise one quarter turn.
6. Pull socket from back of lamp.
7. Separate headlamp module from vehicle.

INSTALLATION
- Reverse the preceding operation.
