Headlamp Bulb: Service and Repair

REMOVAL

CAUTION: Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result.

1. Release hood latch and open hood.
2. Remove screws holding headlamp module to radiator closure panel.
3. Remove headlamp module from radiator closure panel.

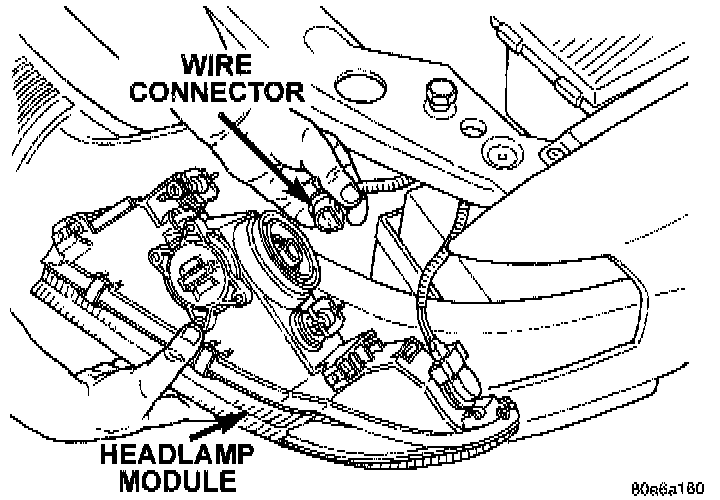

Headlamp Connector:

4. Disconnect wire connector from back of headlamp bulb.
5. Rotate retaining ring counterclockwise one quarter turn.

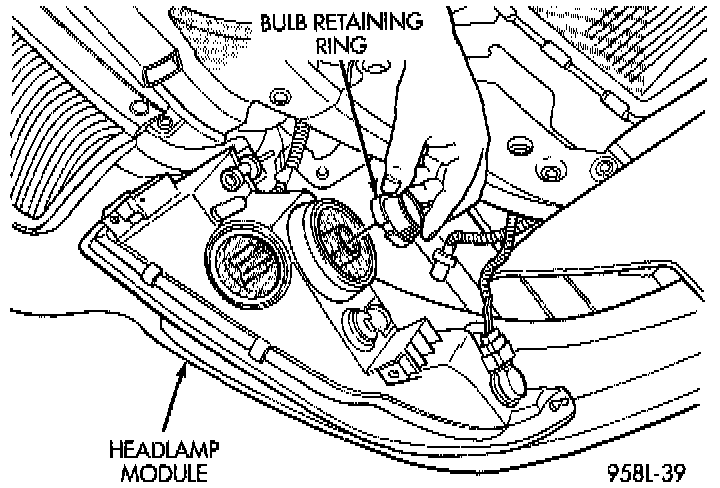

Headlamp Bulb Retaining Ring:

6. Rotate retaining ring from headlamp module.

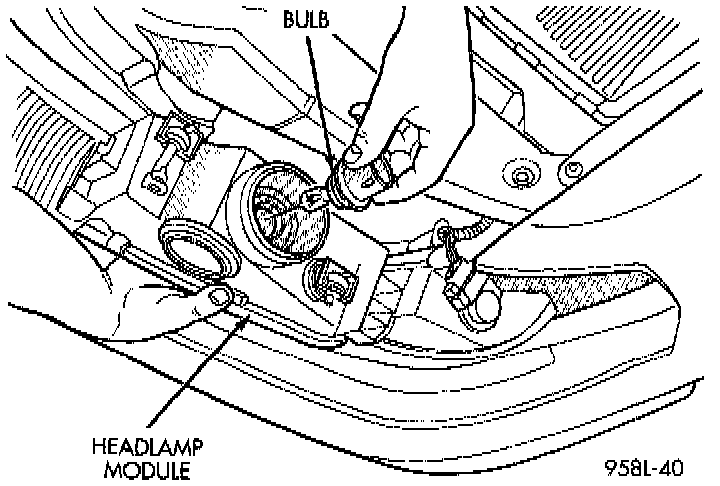

Headlamp Bulb:

7. Pull bulb from headlamp module.

INSTALLATION
- Reverse the preceding operation.
