Center Mounted Brake Lamp Bulb: Service and Repair

REMOVAL
1. Release decklid latch and open decklid.
2. Rotate socket counterclockwise one quarter turn.
3. Pull socket from back of lamp.

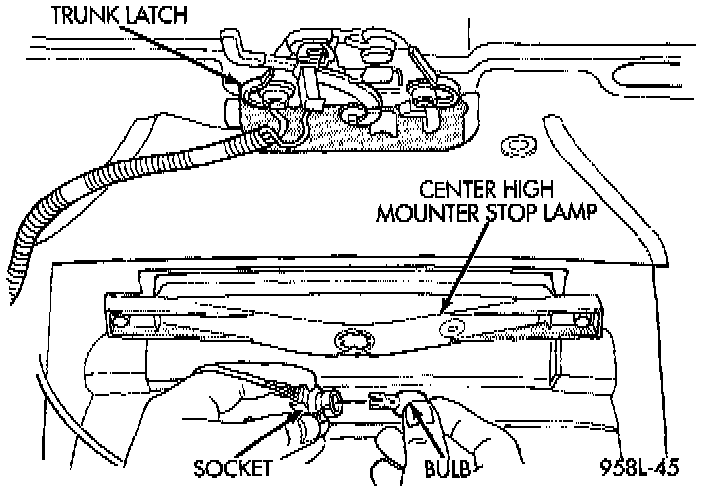

Center High Mounted Stop Lamp Bulb:




4. Pull bulb from socket.

INSTALLATION
- Reverse the preceding operation.
