Backup Lamp: Service and Repair

REMOVAL
1. Release decklid latch and open decklid lid.

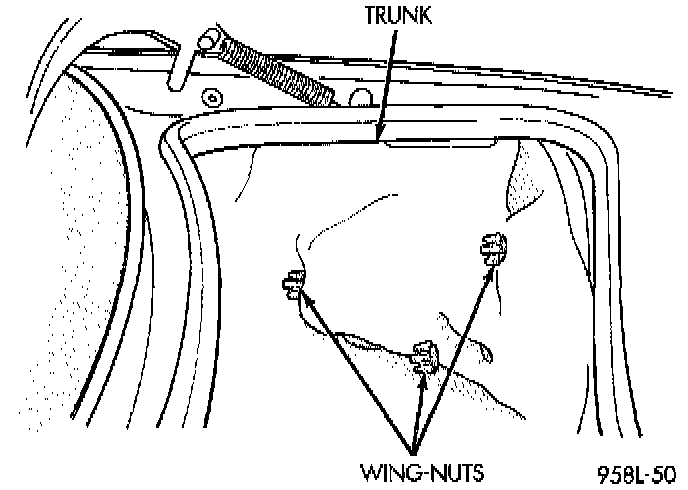

Tail Lamp:

2. Remove wing-nuts holding tail lamp to rear closure panel.
3. Separate lamp from opening in quarter panel.

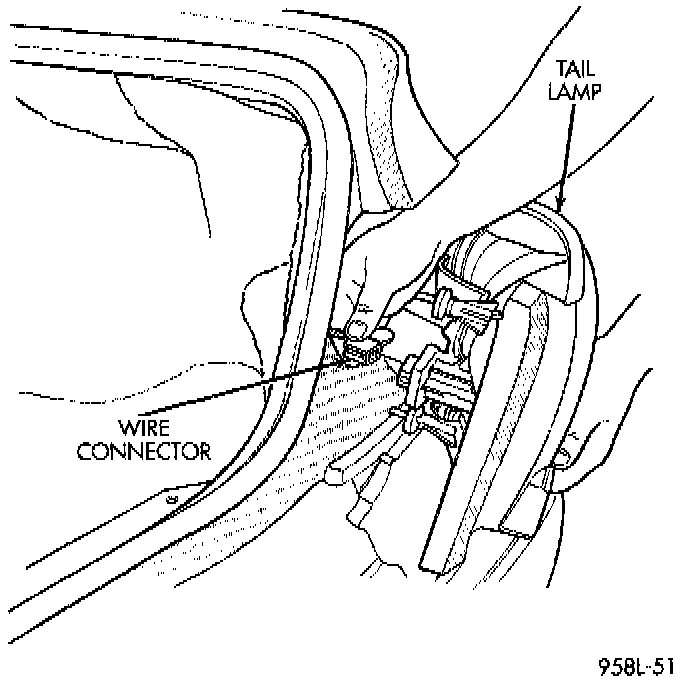

Tail Lamp Wire Connector:

4. Disengage wire connector from back of tail lamp.
5. Separate tail lamp from vehicle.

INSTALLATION
- Reverse the preceding operation.
