Backup Light Bulb: Service and Repair

REMOVAL
1. Release decklid latch and open decklid.
2. Remove wing-nuts holding tail tamp to rear closure panel.
3. Separate lamp from opening in quarter panel.
4. Disengage wire connector from back of tail lamp.
5. Rotate socket counterclockwise one quarter turn.

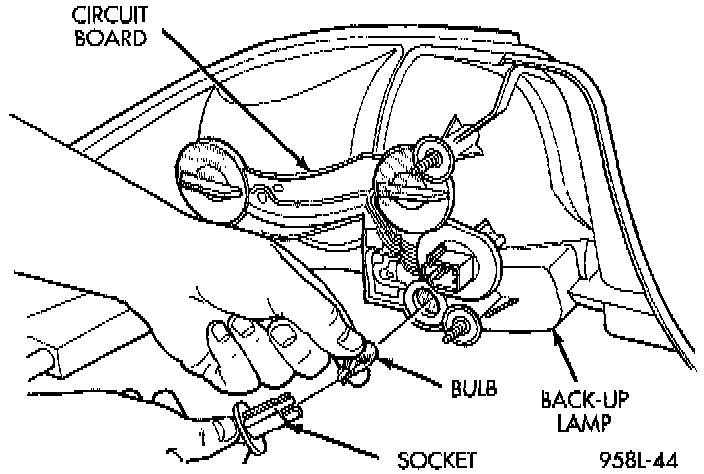

Back-Up Lamp Bulb:

6. Pull socket from back of lamp.
7. Pull bulb from socket.

INSTALLATION
- Reverse the preceding operation.
