Instrument Cluster Printed Circuit Board Replacement

REMOVAL
1. Remove six cluster back cover retaining screws and remove the cover.
2. Disconnect odometer/Transmission range indicator connector from the printed circuit board.

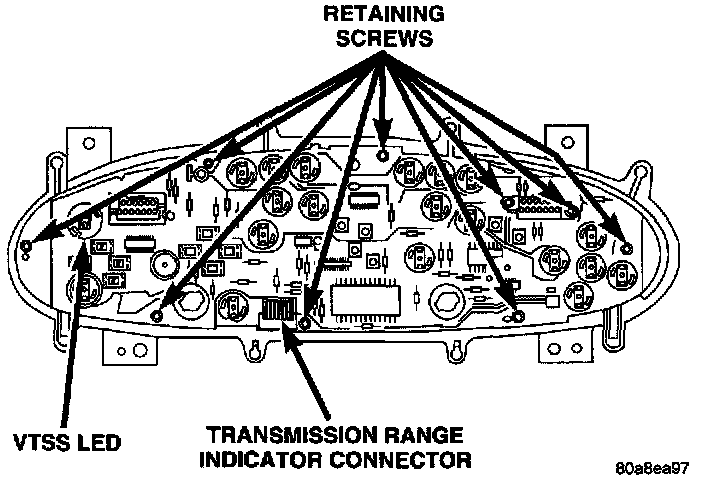

Printed Circuit Board:

3. Remove nine printed circuit board attaching screws and remove. There are two screws located at the base of each connector.

INSTALLATION
- For installation, reverse the above procedures.
