Air Conditioning Special Tools

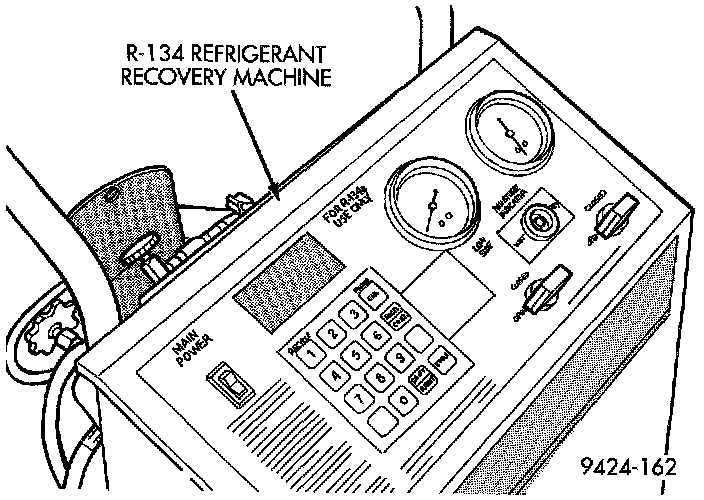

Refrigerant Recovery/Recycling Station Typical:

When servicing a system, it is required that an air conditioning charging recovery/recycling machine be used. Contact an automotive service equipment supplier for proper equipment. Refer to the operating instructions provided with the equipment for proper operation.

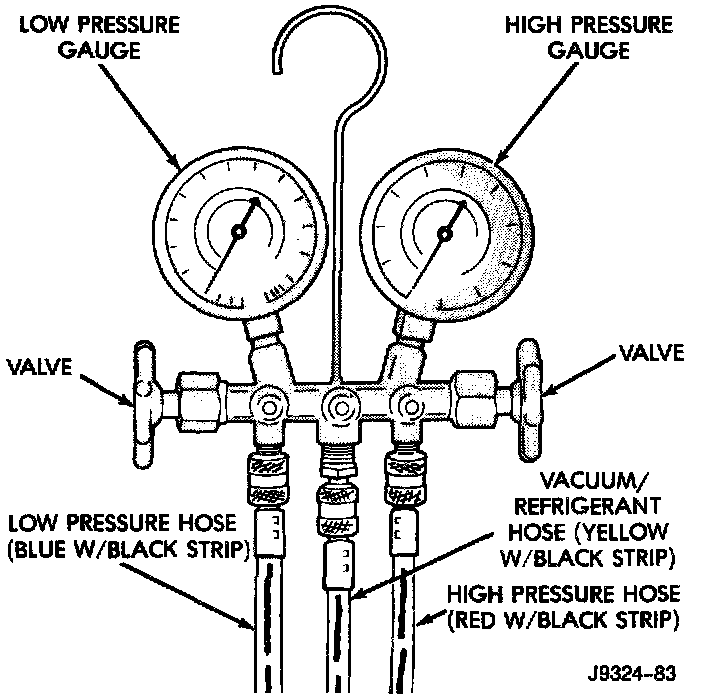

Manifold Gauge set - Typical:

A manifold gauge set must also be used in conjunction with the charging and/or recovery/recycling device. Only use gauges that have not been used for R-12. The service hoses on the gauge set should have manual (turn wheel) or automatic back flow valves at the service port connector ends. This will prevent refrigerant R-134a from being released into the atmosphere.

A/C Line Disconnect Tool 7193:

A/C line quick connect fitting tools.
