Evaporator Core: Service and Repair

The Heater A/C housing must be removed from the vehicle when replacing the evaporator.

REMOVAL
1. Disconnect battery negative remote cable.

CAUTION: The refrigerant must be removed from the system before removing Heater-A/C housing. Use a refrigerant recovery machine.

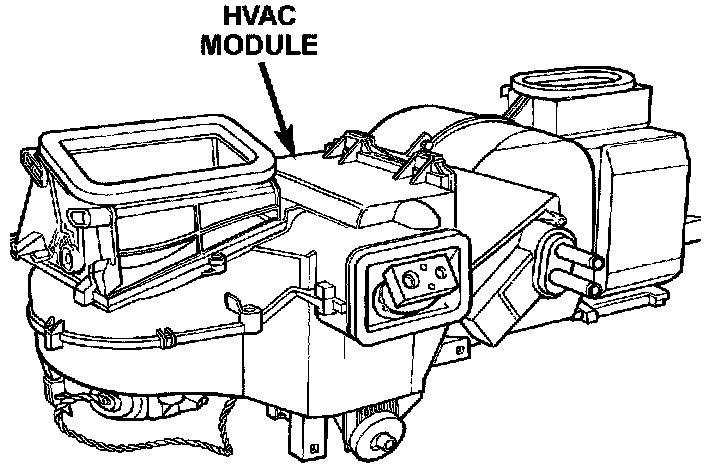

A/C Housing:

2. Remove A/C housing from vehicle. Refer to: "Heating and Air Conditioning : Service and Repair" Service and Repair
3. Remove recirculation door inlet cover.
4. Remove evaporator temperature probe.

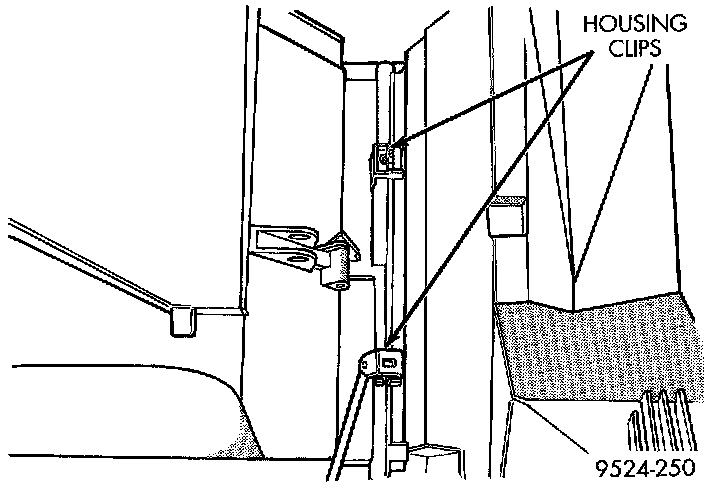

Housing Clips:

5. Remove clips retaining evaporator housing to heater/distribution housing.

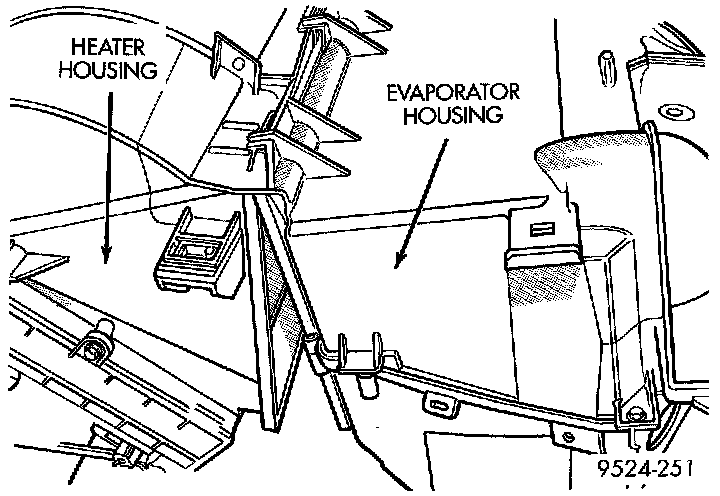

Separate Housings:

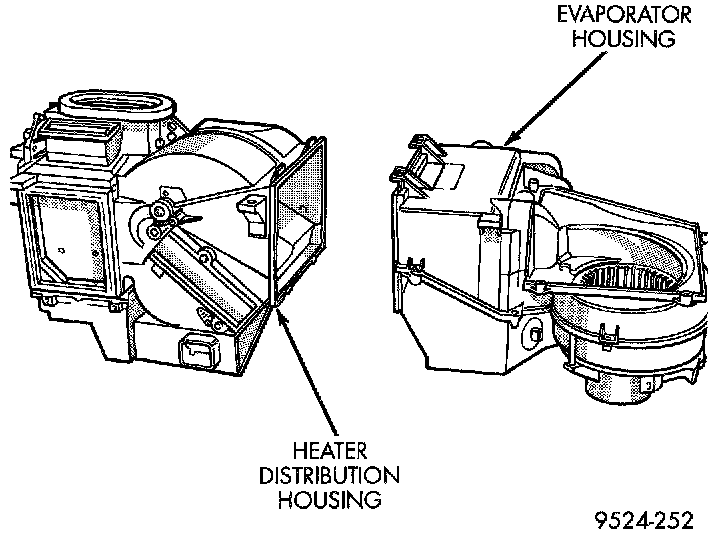

Housings:

6. Separate evaporator housing from heater/distribution housing.
7. Remove seal around evaporator tube inlet.

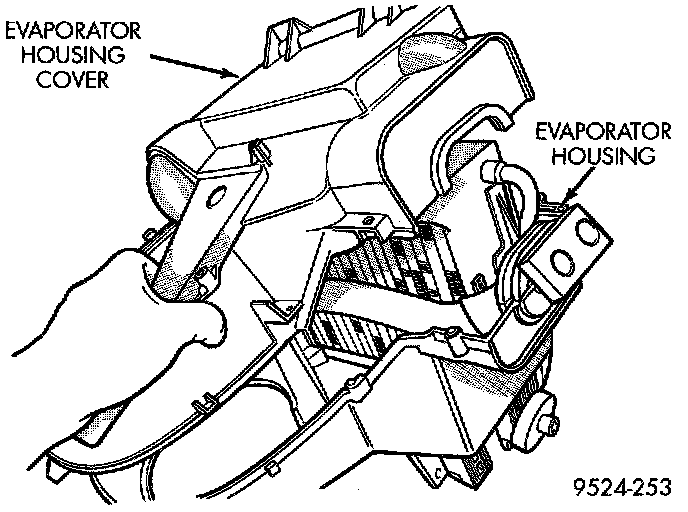

Evaporator Housing Upper Cover:

8. Remove evaporator housing upper cover.

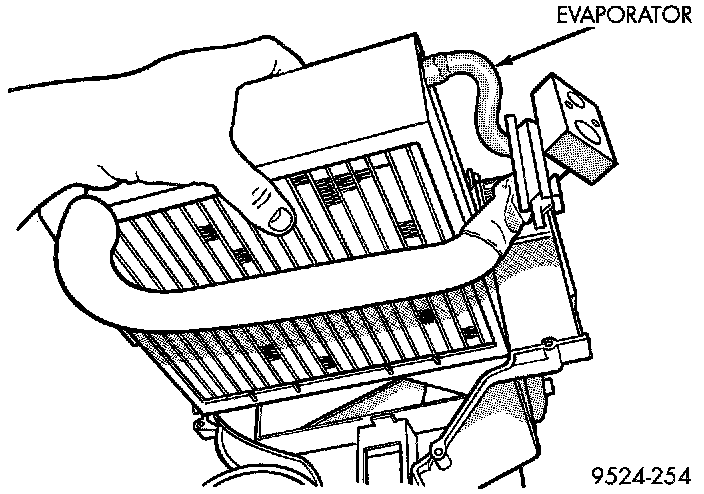

Remove Evaporator From Housing:

9. Lift evaporator out of lower housing.
10. Remove styrofoam seal around evaporator.
11. Transfer evaporator sensor. Place the evaporator sensor in the same location as on the previous evaporator.

INSTALLATION
- For installation, reverse the above procedure.
