Exhaust Flex Joint Coupling

Flexi-Joint Coupleing:

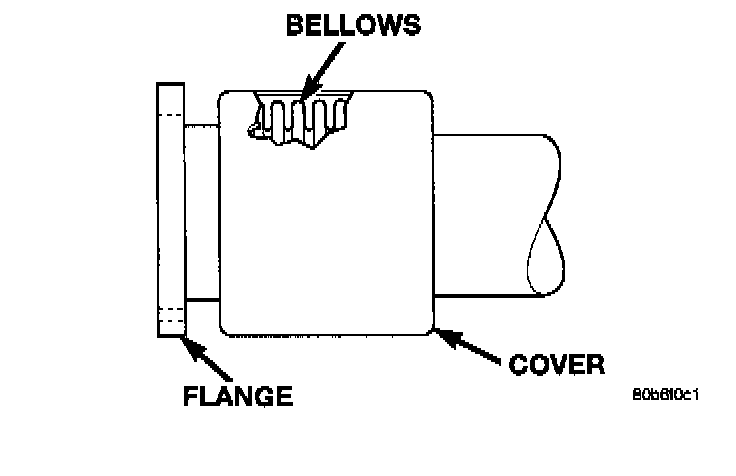

A exhaust flex-joint coupling is used to secure the catalytic converter to the engine manifold. This joint actually moves back and forth as the engine moves, preventing breakage that could occur from the back-and-forth motion of a transverse mounted engine.
The exhaust flex-joint is welded to the catalytic converter.

CAUTION: When servicing, care must be exercised not to dent or bend the bellows or bellows cover of the flex-joint. Should this occur, the flex-joint will eventually fail and require the catalytic converter be replaced.
