Valve Cover: Service and Repair

Removal

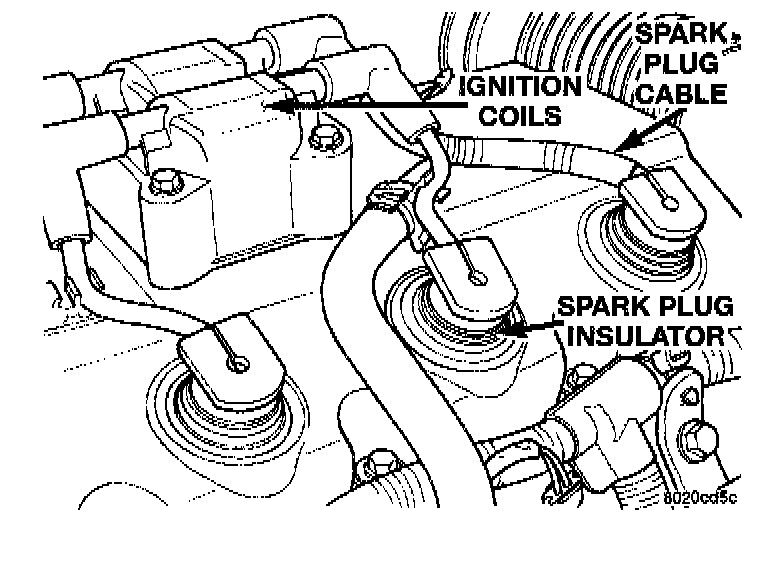

Ignition Coil Pack:

1. Remove ignition coil pack.
2. Remove the cylinder head cover bolts.
3. Remove cylinder head cover from cylinder head.

Installation
Before installation, clean cylinder head and cover mating surfaces. Make certain the cylinder head cover mating surface is flat.
1. Install new valve cover gasket.

Caution: Do not allow oil or solvents to contact the timing belt as they can deteriorate the rubber and cause tooth skipping.

2. Install cover assembly to head and tighten fasteners to 12 Nm (105 inch lbs.).
3. Install ignition coil pack. Tighten fasteners to 23 Nm (200 inch lbs.).
