Component Diagrams

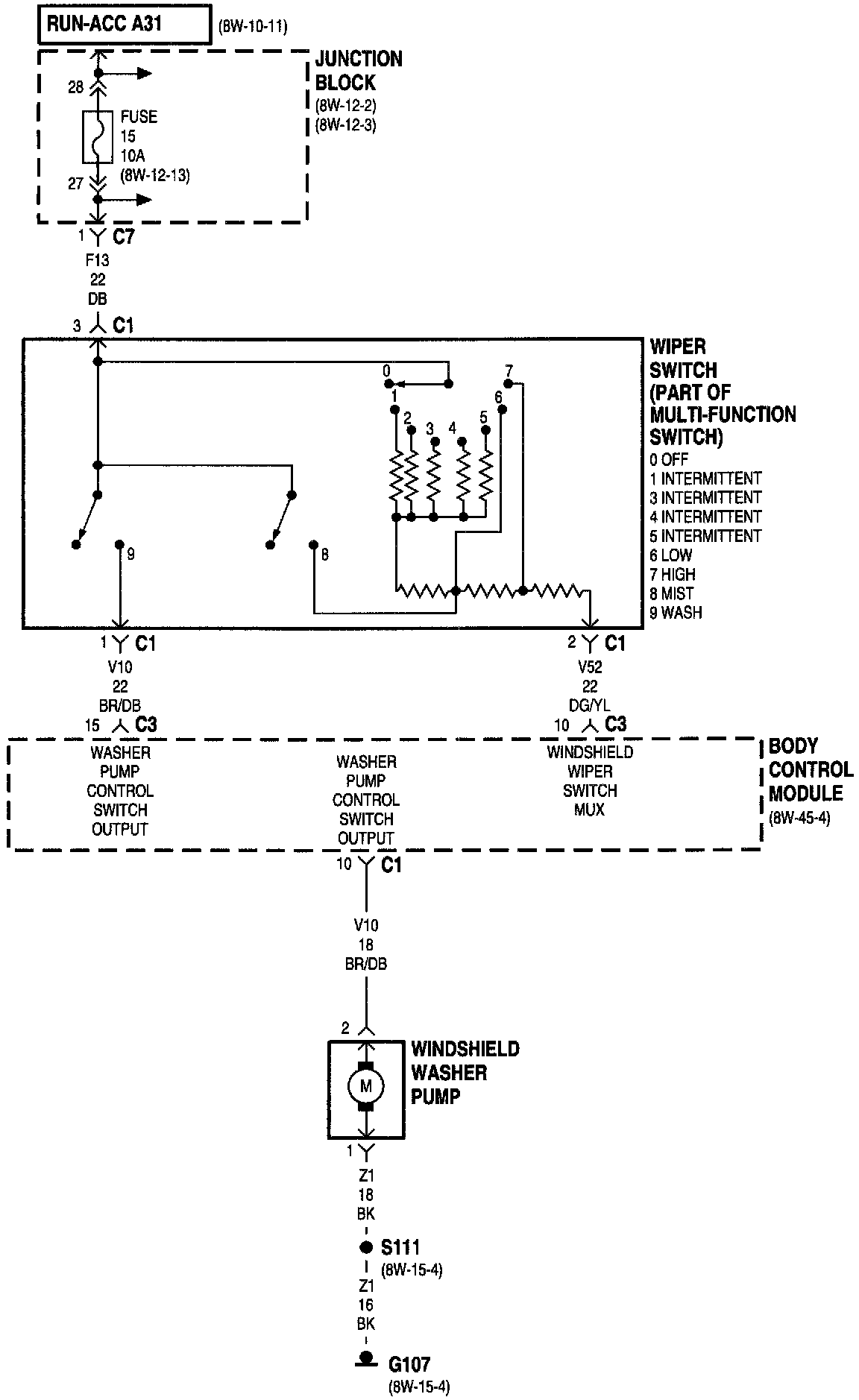

8w-53-2:

Body Control Module
Fuse 15 (JB)
G107
Junction Block
Windshield Washer Pump
Wiper Switch

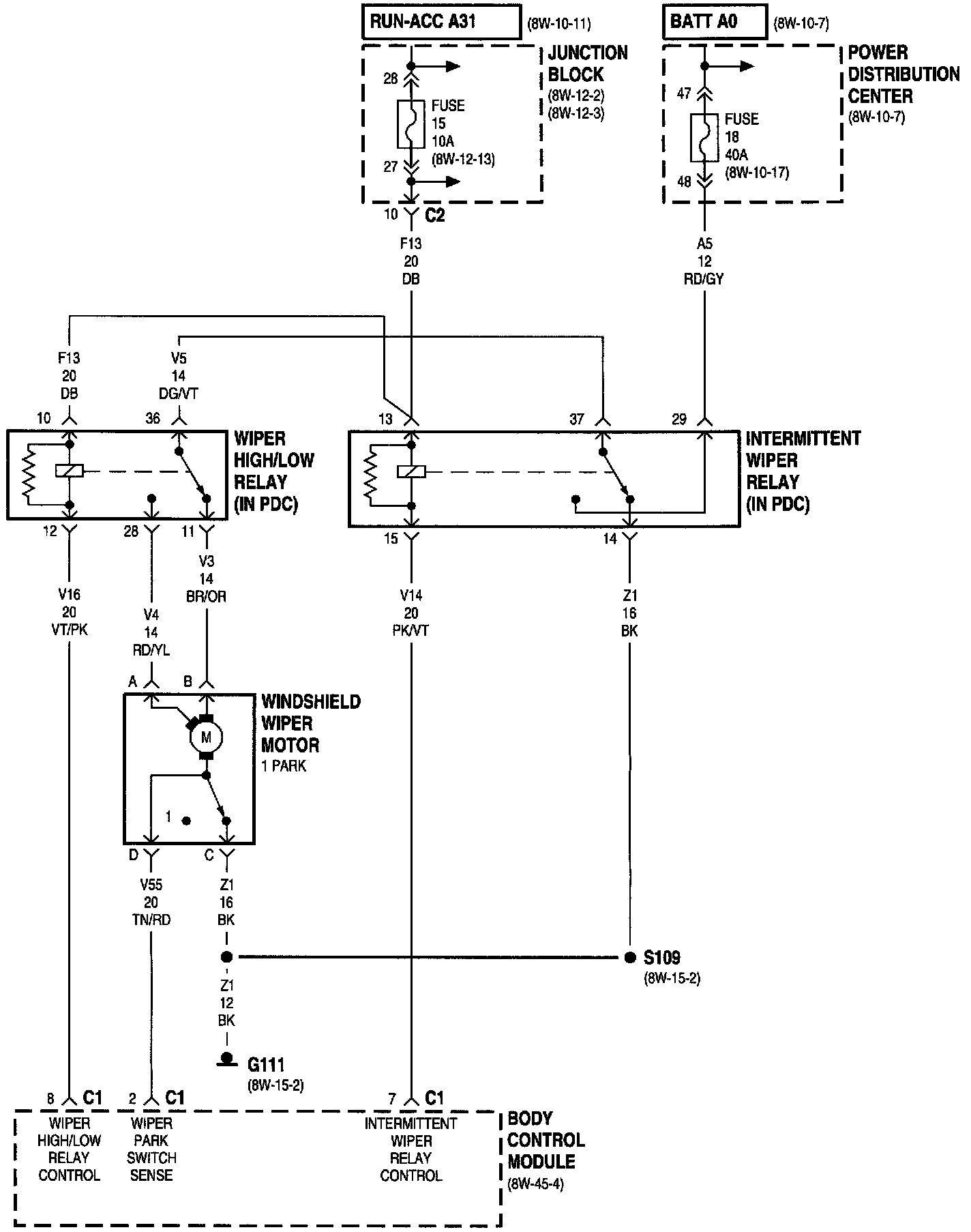

8w-53-3:

Body Control Module
Fuse 15 -- Junction Block
Fuse 18 -- Power Distribution Center (PDC)
G111
Intermittent Wiper Relay -- Power Distribution Center (PDC)
Windshield Wiper Motor
Wiper High/Low Relay -- Power Distribution Center (PDC)

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
Diagrams By Group Number
