Premium

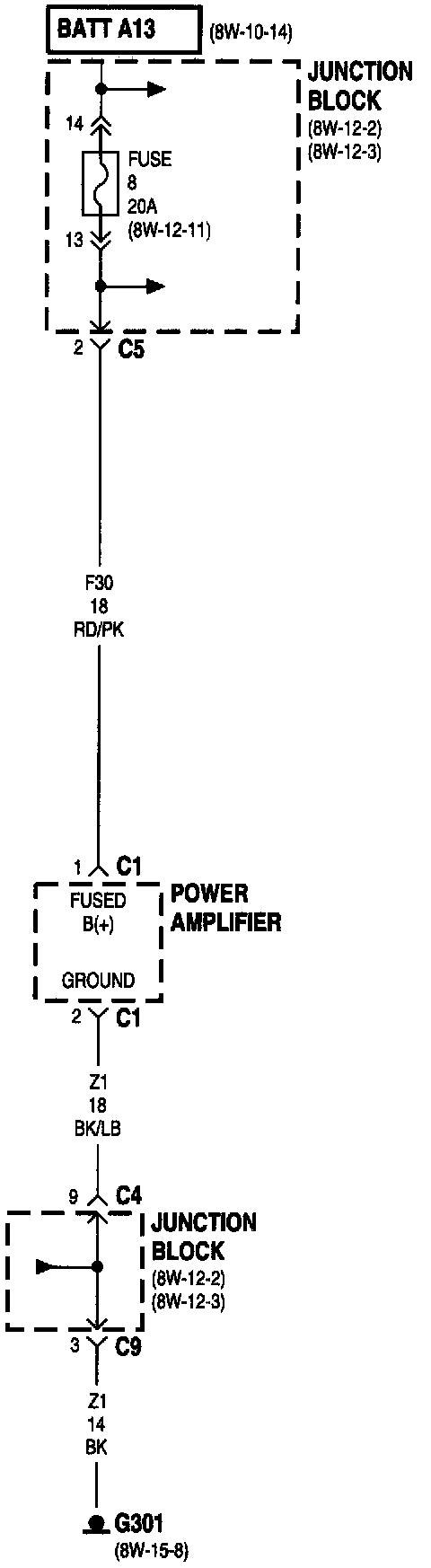

8w-47-4:

Fuse 8 (JB)
G301
Junction Block
Power Amplifier

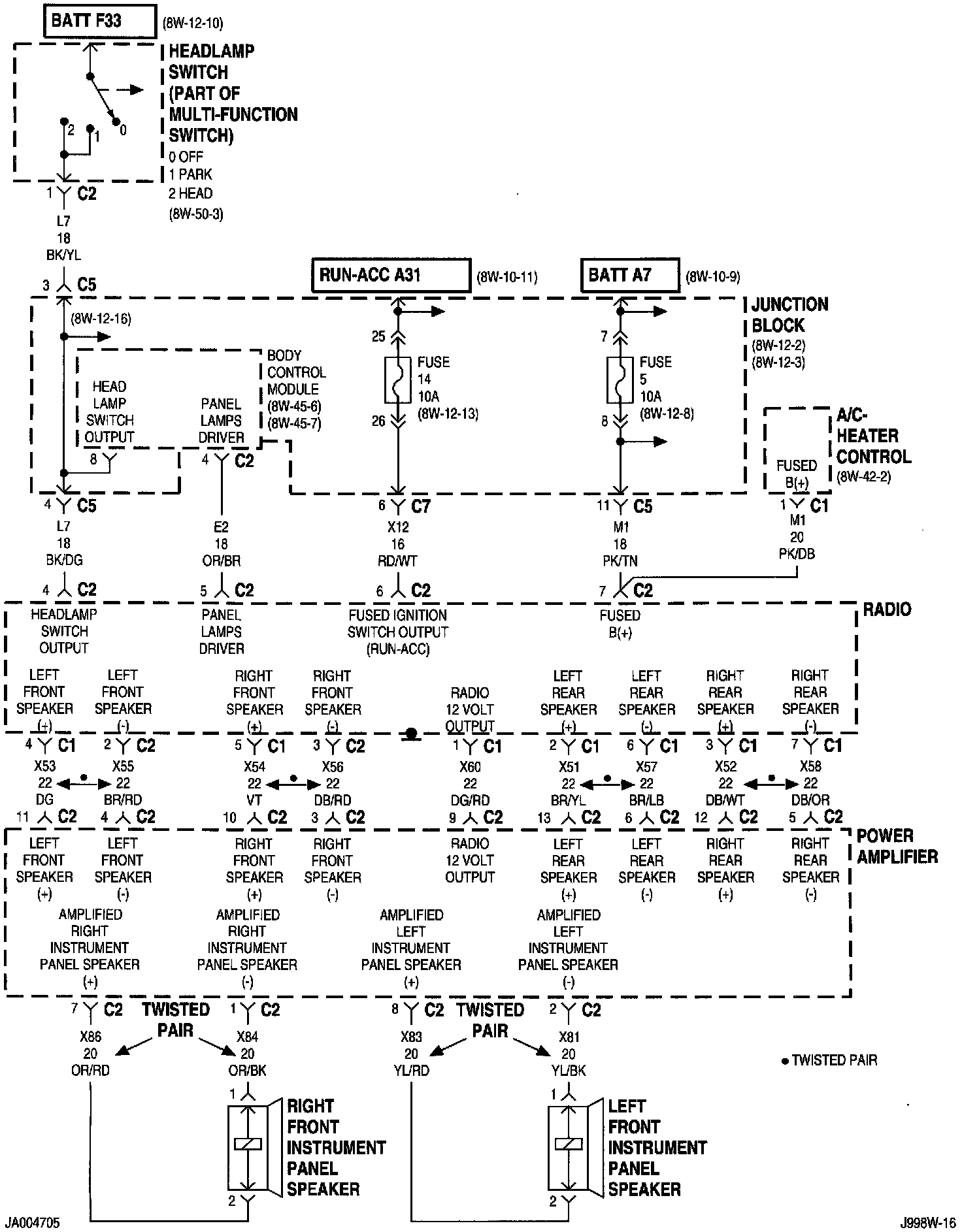

8w-47-5:

A/C-Heater Control
Body Control Module
Fuse 5 (JB)
Fuse 14 (JB)
Headlamp Switch
Junction Block
Left Front Instrument Panel Speaker
Power Amplifier
Radio
Right Front Instrument Panel Speaker

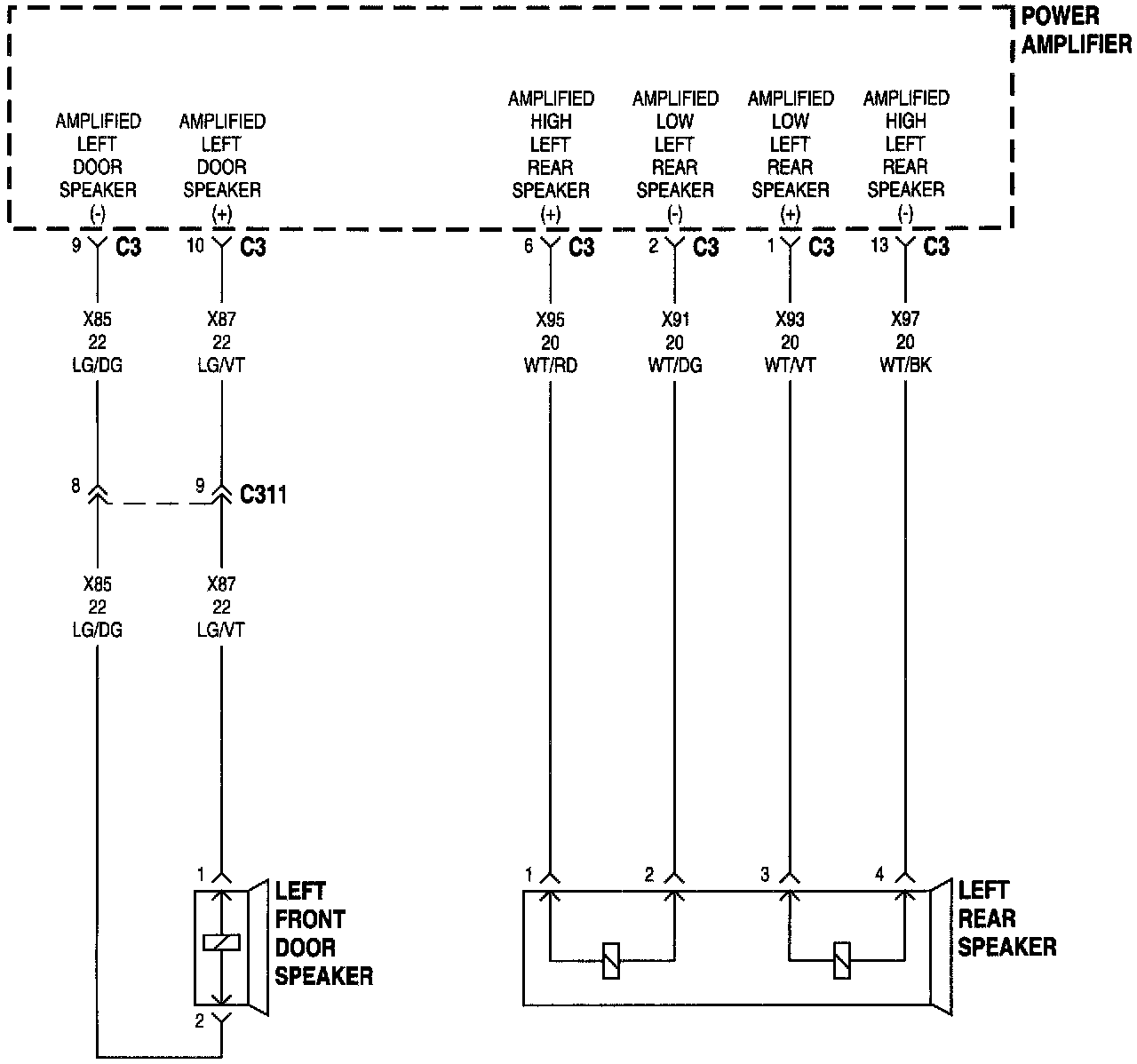

8w-47-6:

Left Front Door Speaker
Left Rear Speaker
Power Amplifier

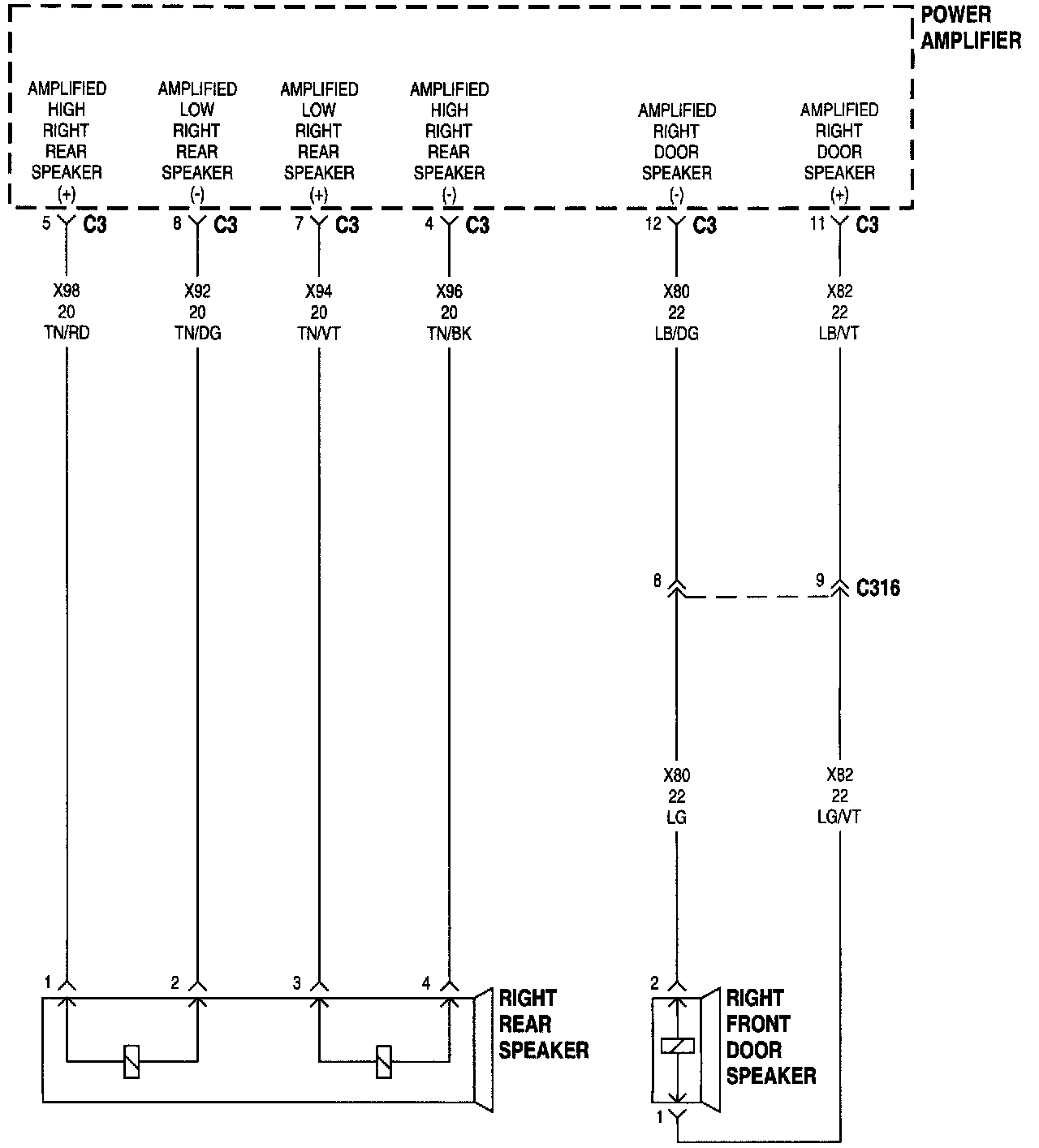

8w-47-7:

Power Amplifier
Right Front Door Speaker
Right Rear Speaker


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams. Diagrams By Group Number
