Interior Lighting

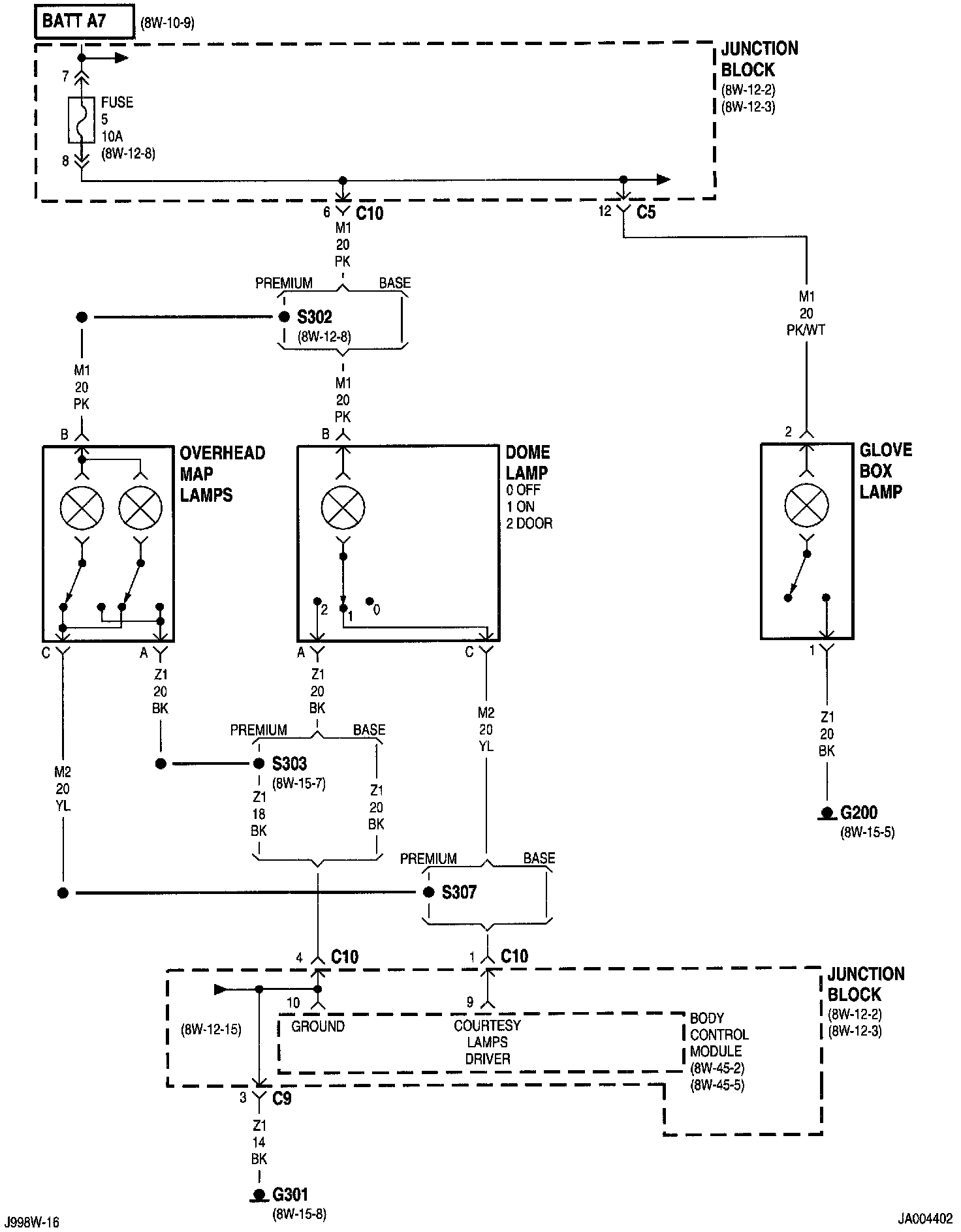

8w-44-2:

Body Control Module
Dome Lamp
Fuse 5 (JB)
G200
Glove Box Lamp
Junction Block
Overhead Map Lamps

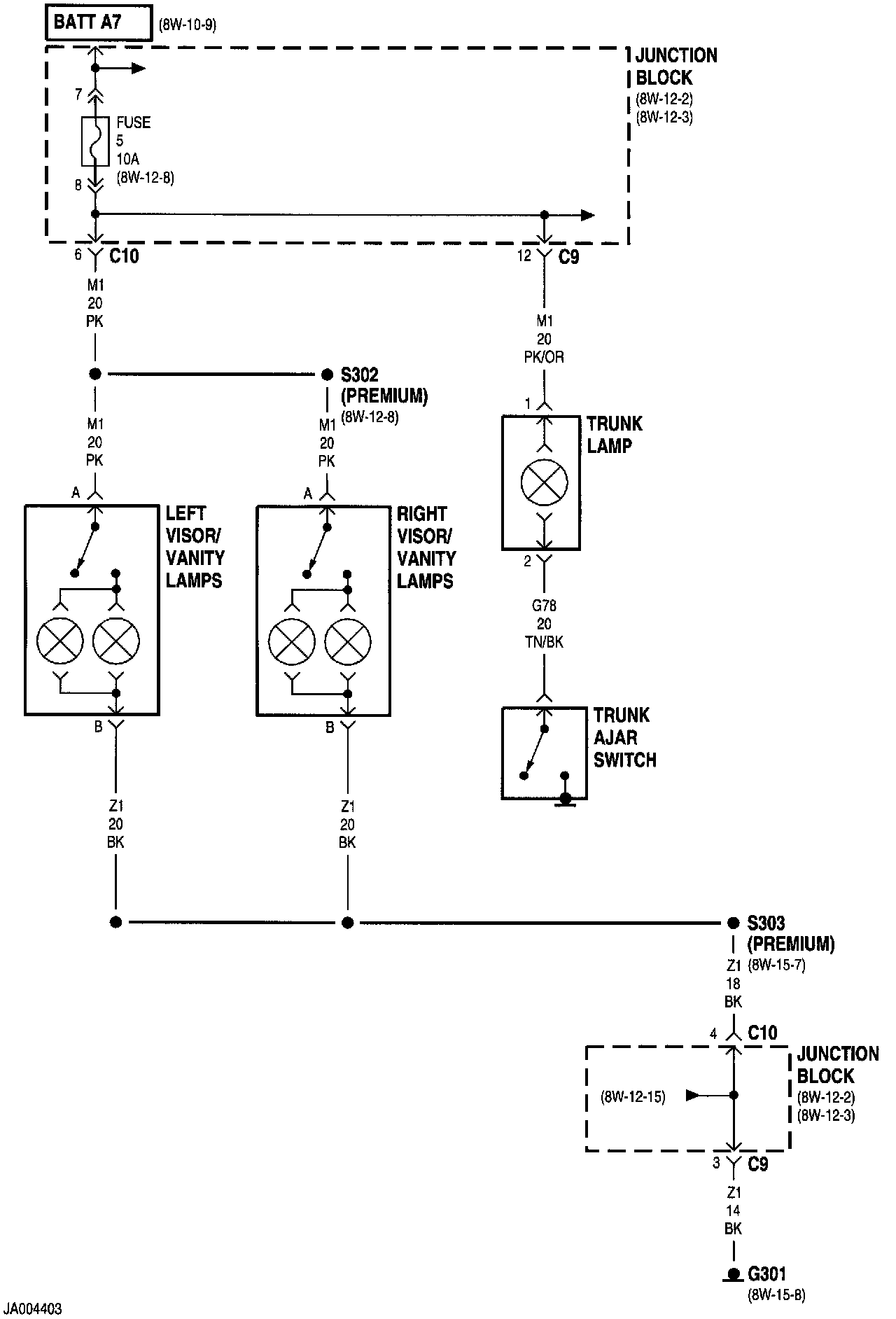

8w-44-3:

Fuse 5 (JB)
Junction Block
Left Visor/Vanity Lamps
Right Visor/Vanity Lamps
mink Ajar Switch
mink Lamp

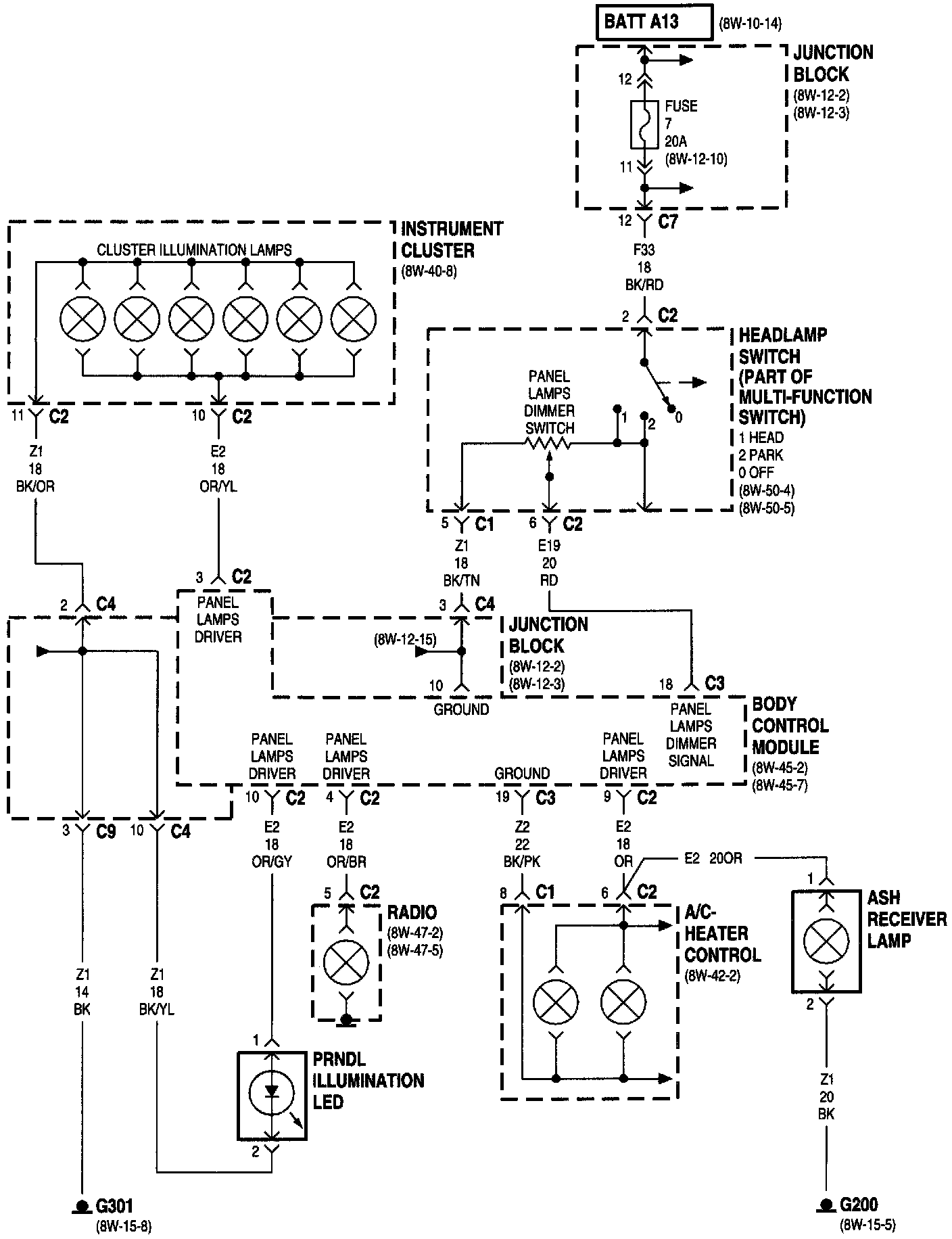

8w-44-4:

A/C- Heater Control
Body Control Module
Fuse 7 (JB)
G200
Headlamp Switch
Instrument Cluster
Junction Block
Panel Lamps Dimmer Switch
PRNDL illumination LED
Radio


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number.
