Electrical Diagram

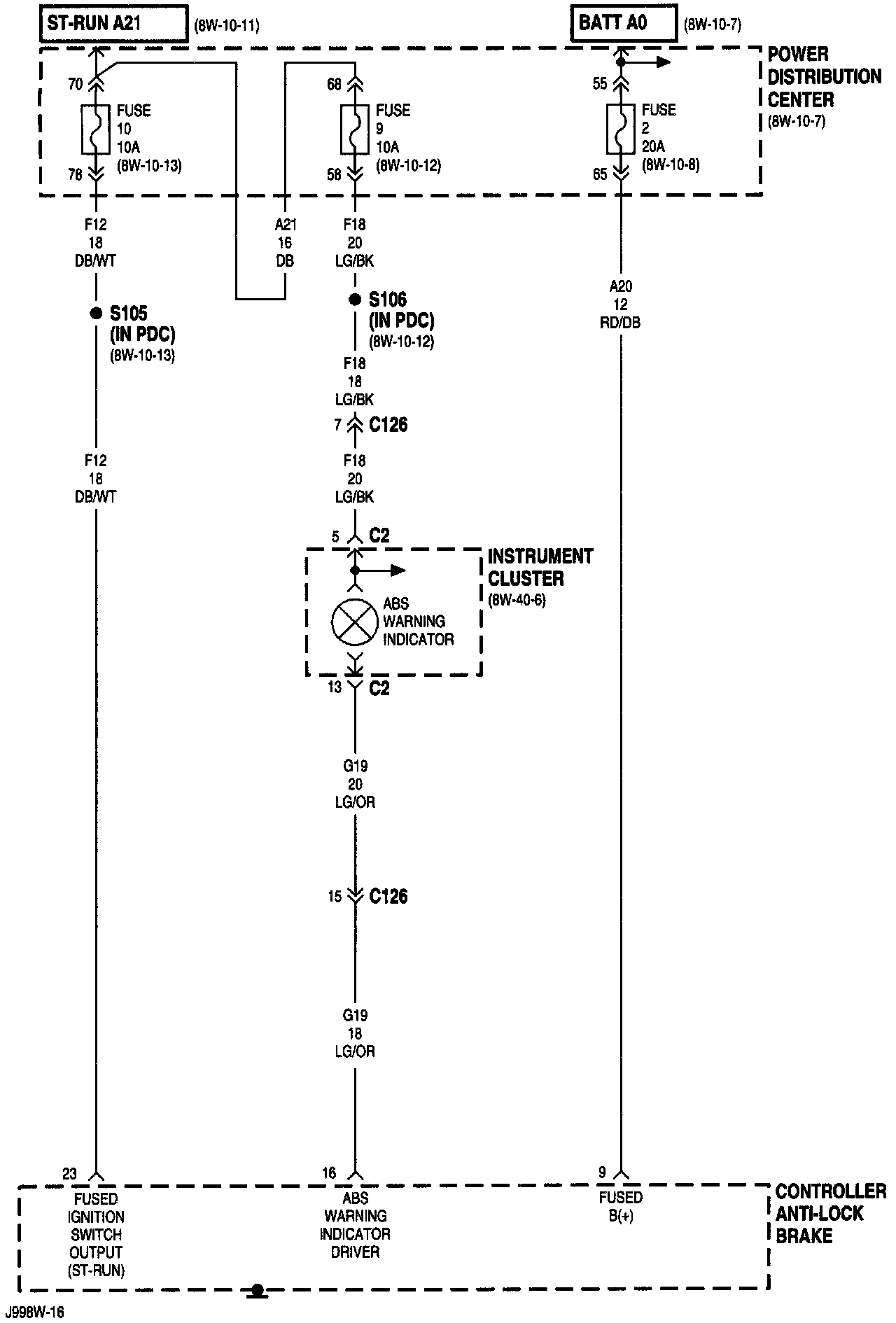

8w-35-2:

ABS Warning Lamp
Controller Anti-Lock Brake
Fuse 2 (PDC)
Fuse 9 (PDC)
Fuse 10 (PDC)
Instrument Cluster
Power Distribution Center

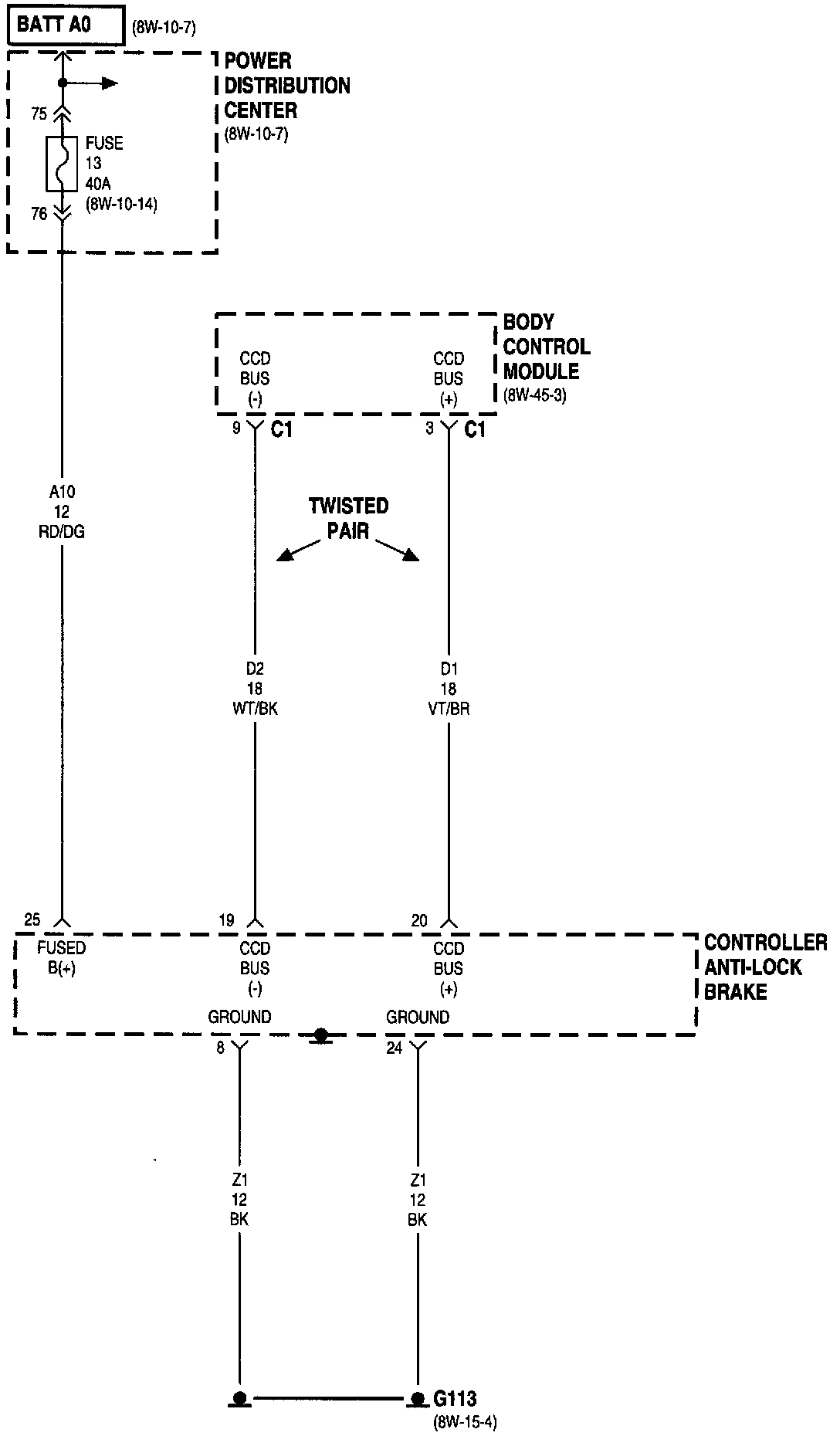

8w-35-3:

Body Control Module
Controller Anti-Lock Brake
Fuse 13 (PDC)
G113
Power Distribution Center

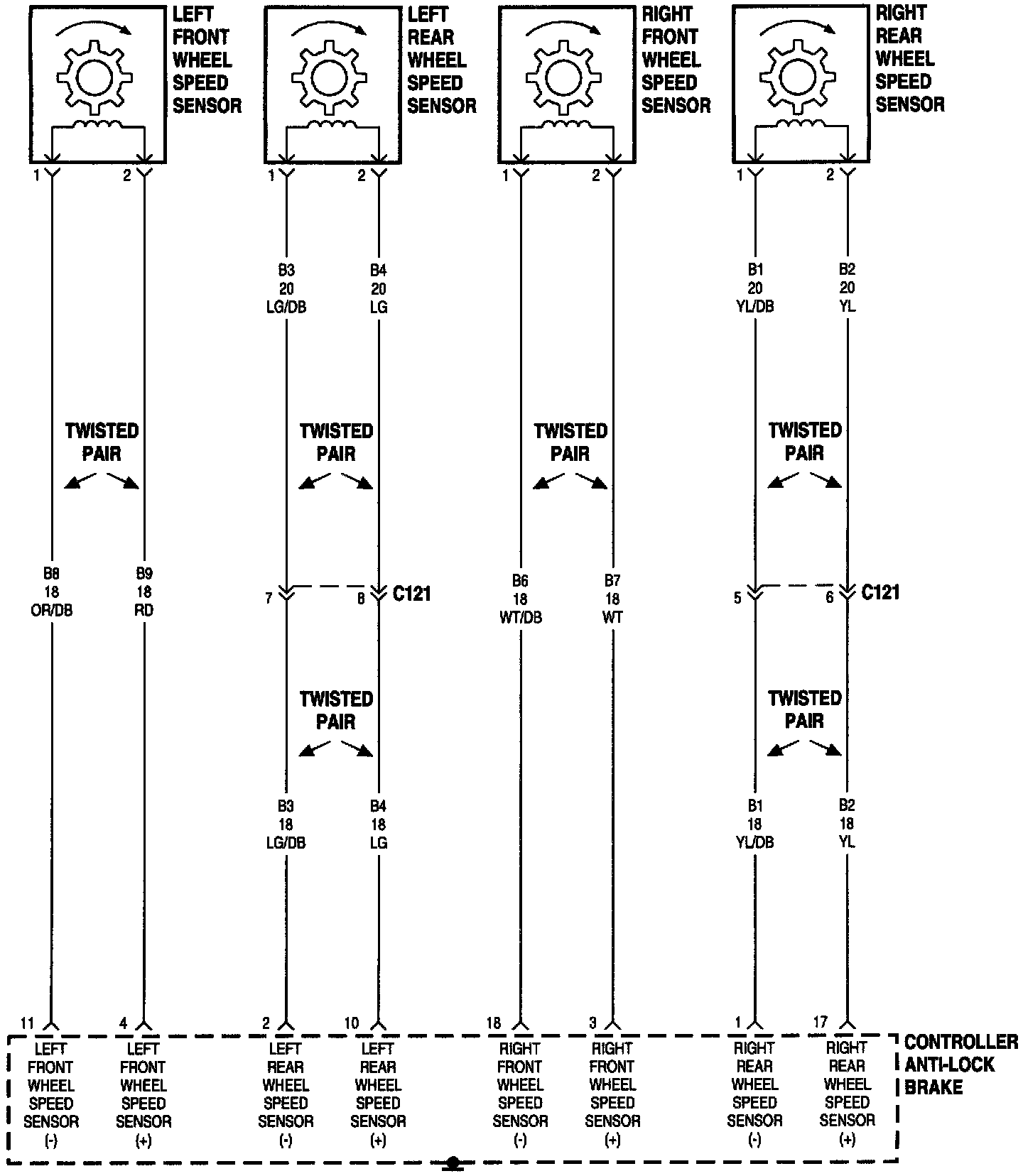

8w-35-4:

Controller Anti-Lock Brake
Left Front Wheel Speed Sensor
Left Rear Wheel Speed Sensor
Right Front Wheel Speed Sensor
Right Rear Wheel Speed Sensor

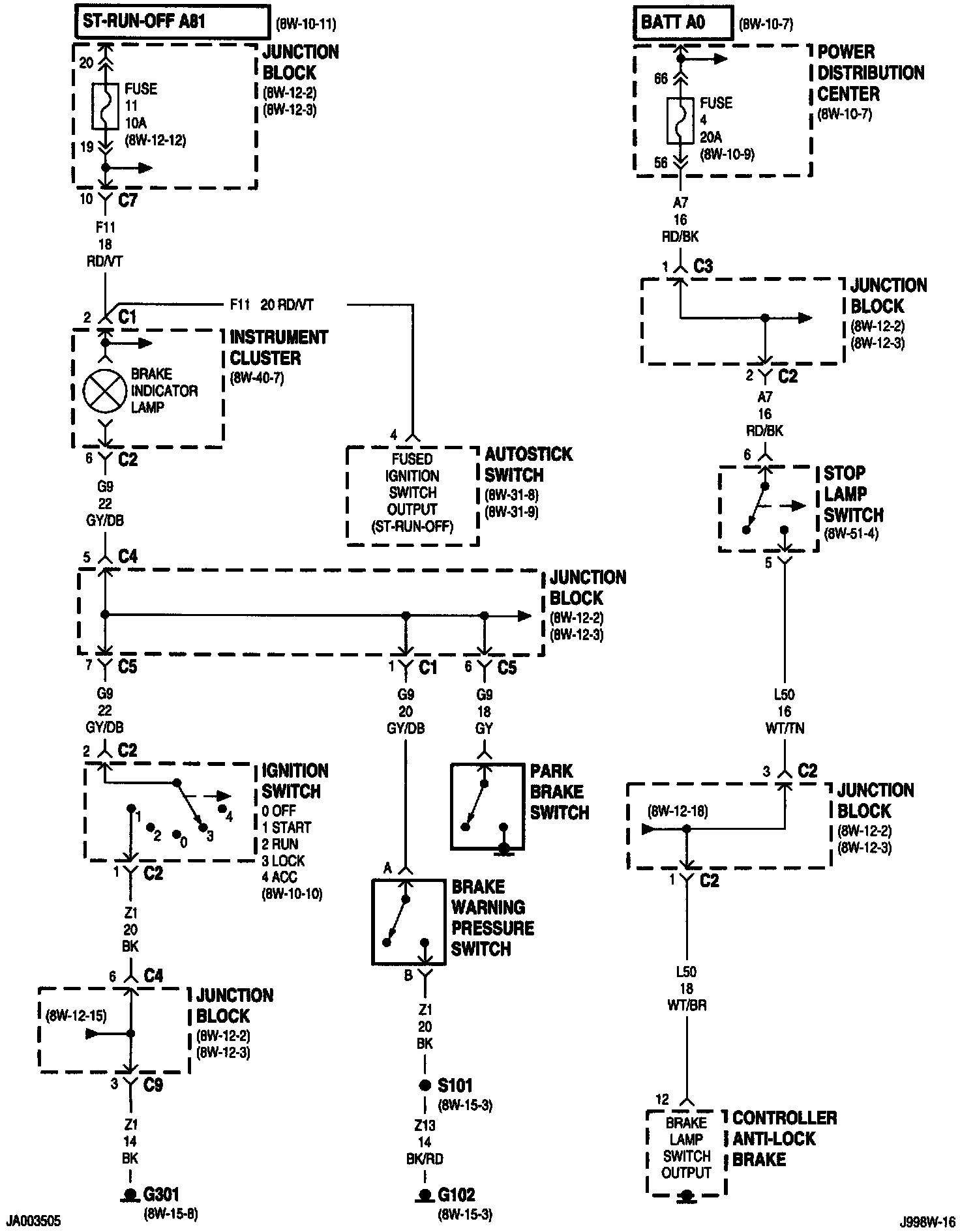

8w-35-5:

Autostick Switch
Brake Warning Lamp
Brake Warning Pressure Switch
Controller Anti-Lock Brake
Fuse 4 (PDC)
Fuse 11 (JB)
G102
G301
Ignition Switch
Instrument Cluster
Junction Block
Park Brake Switch
Power Distribution Center
Stop Lamp Switch


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number
