Body Control Module

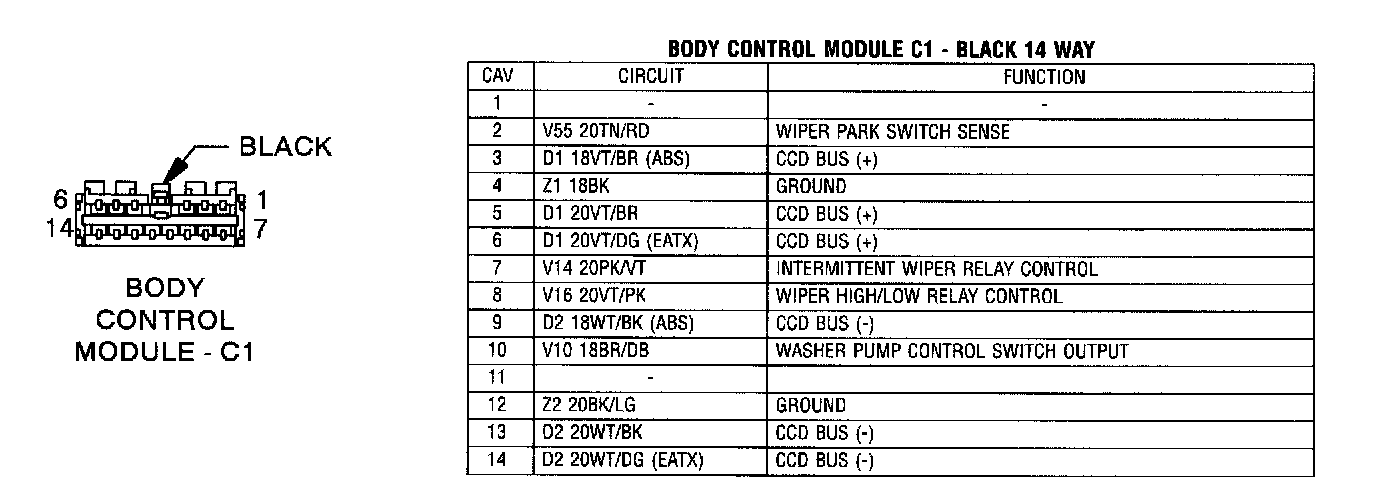

Body Control Module C1 Black 14 Way:

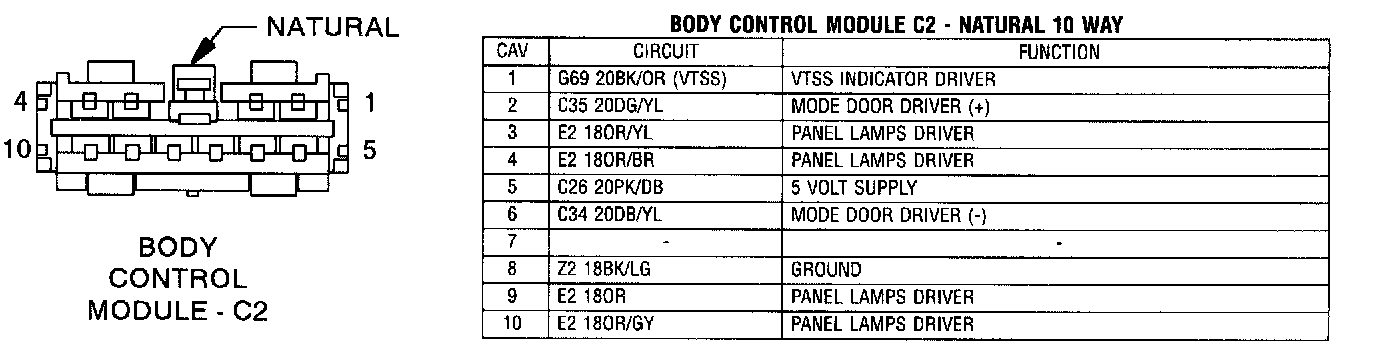

Body Control Module C2 Natural 10 Way:

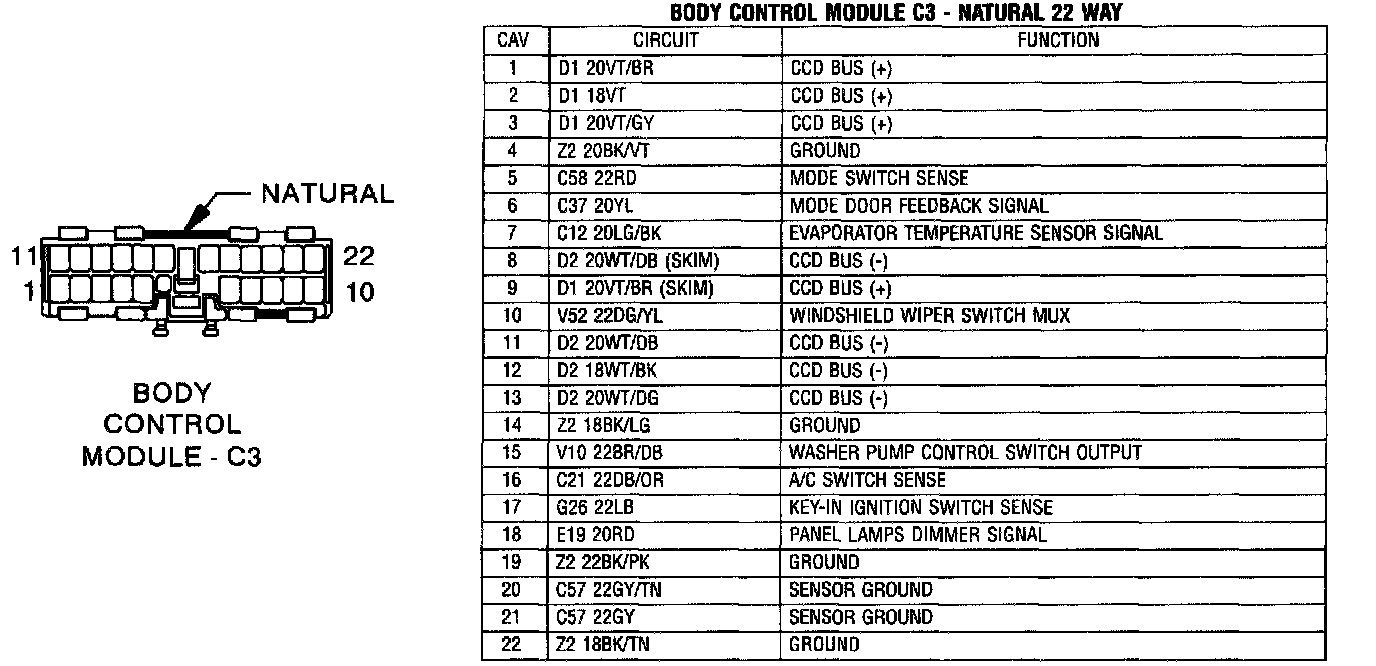

Body Control Module C3 Natural 22 Way:

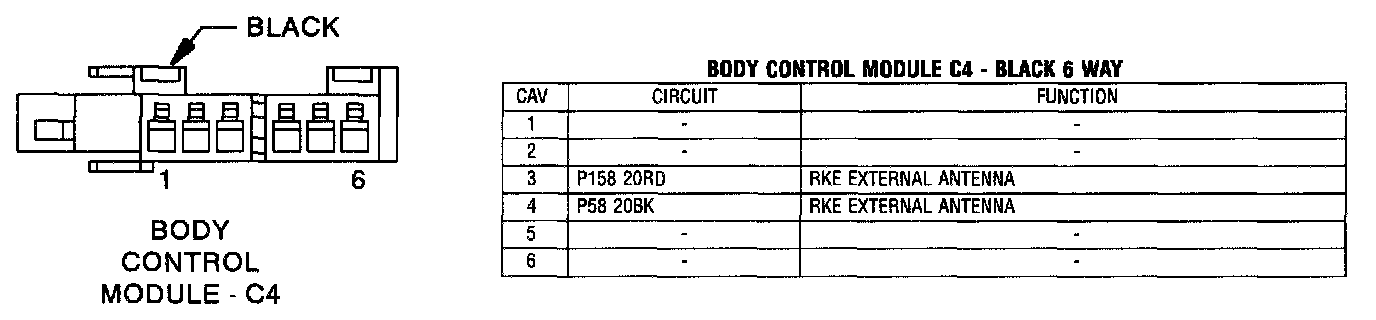

Body Control Module C4 Black 6 Way:

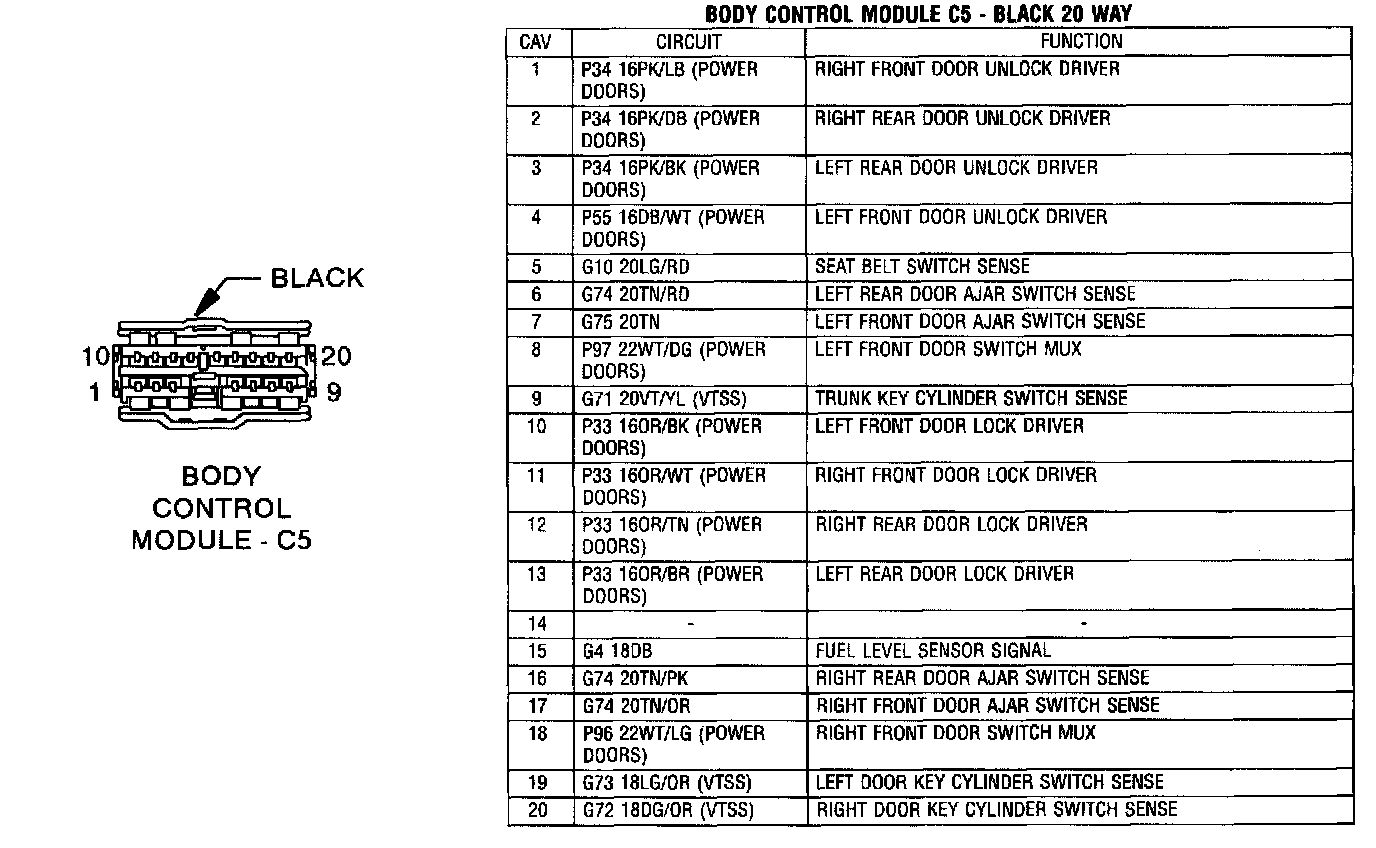

Body Control Module C5 Black 20 Way:
