Diagrams
>>
Connector Views
>>
Power Door Lock Actuator
Power Door Lock Actuator
Left Front:

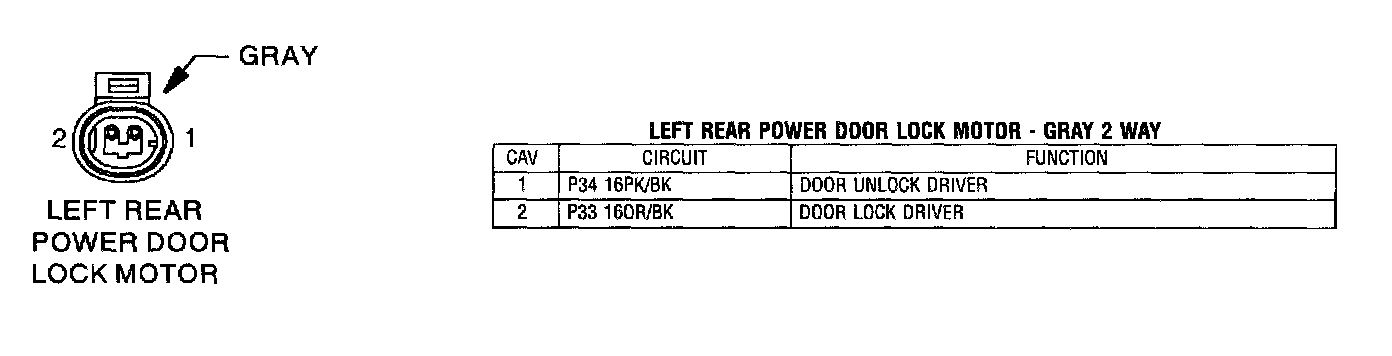

Left Rear:

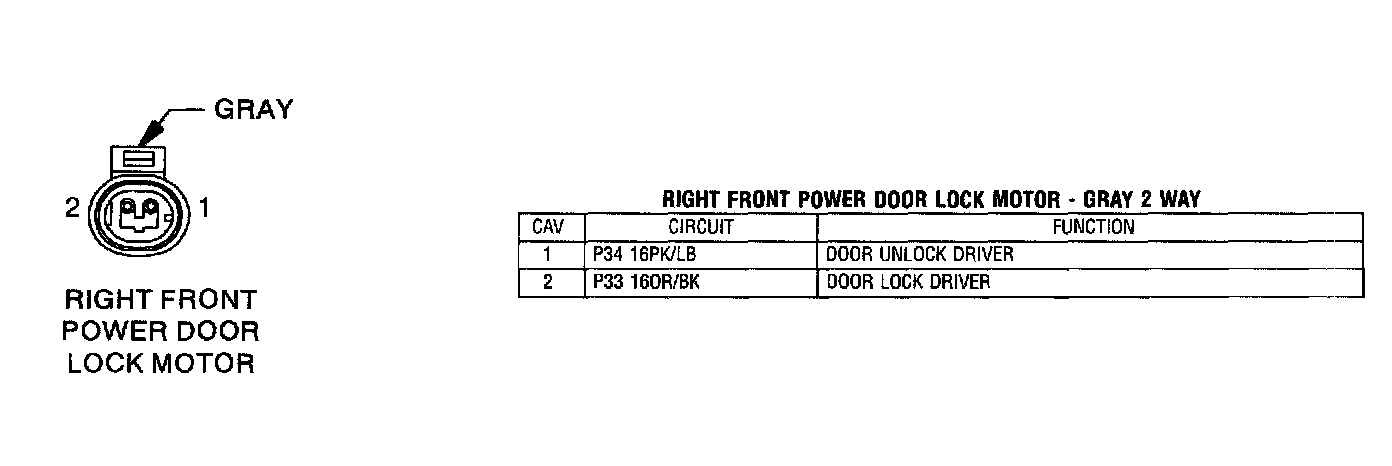

Right Front:

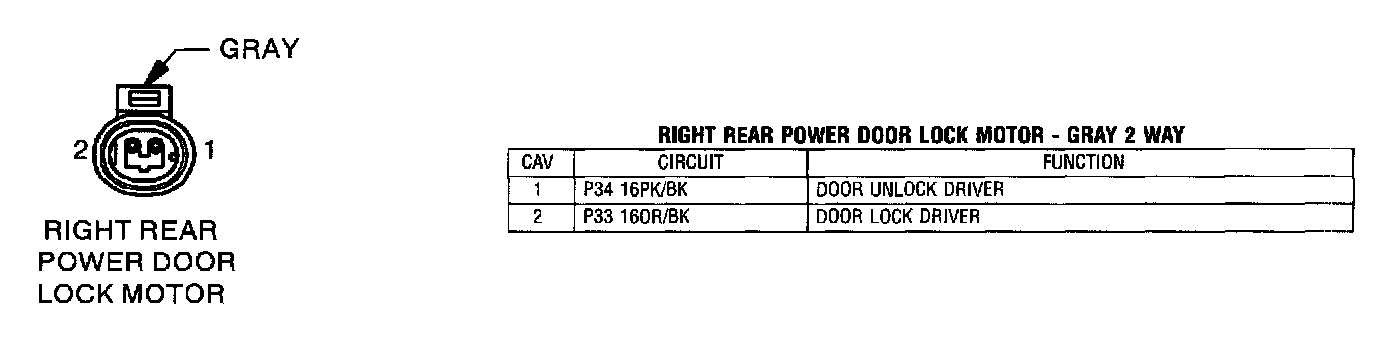

Right Rear:
