Stratus L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier
Instrument Cluster / Carrier

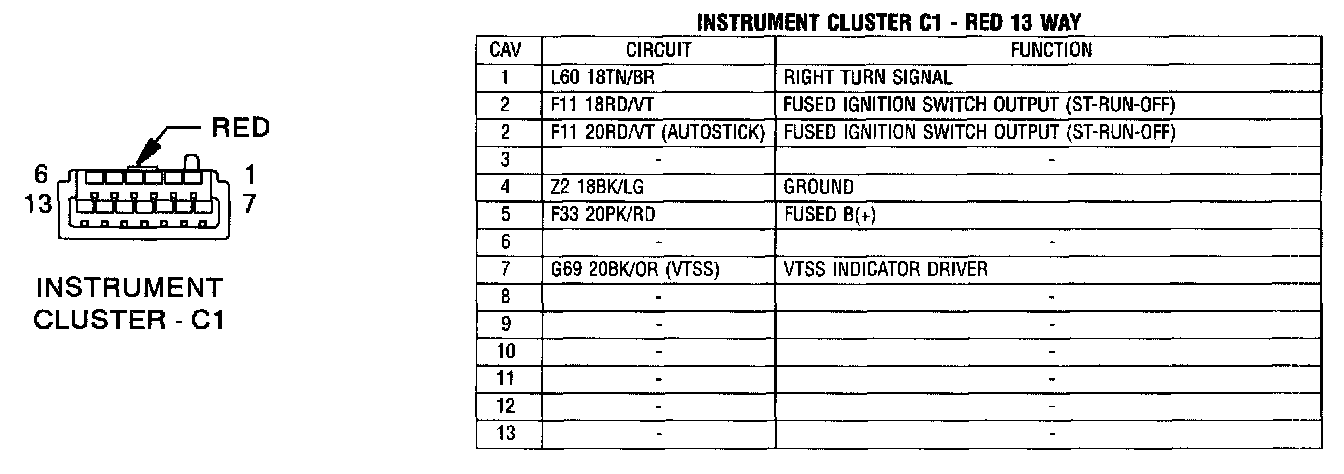

C - 1 Red 13 Way:

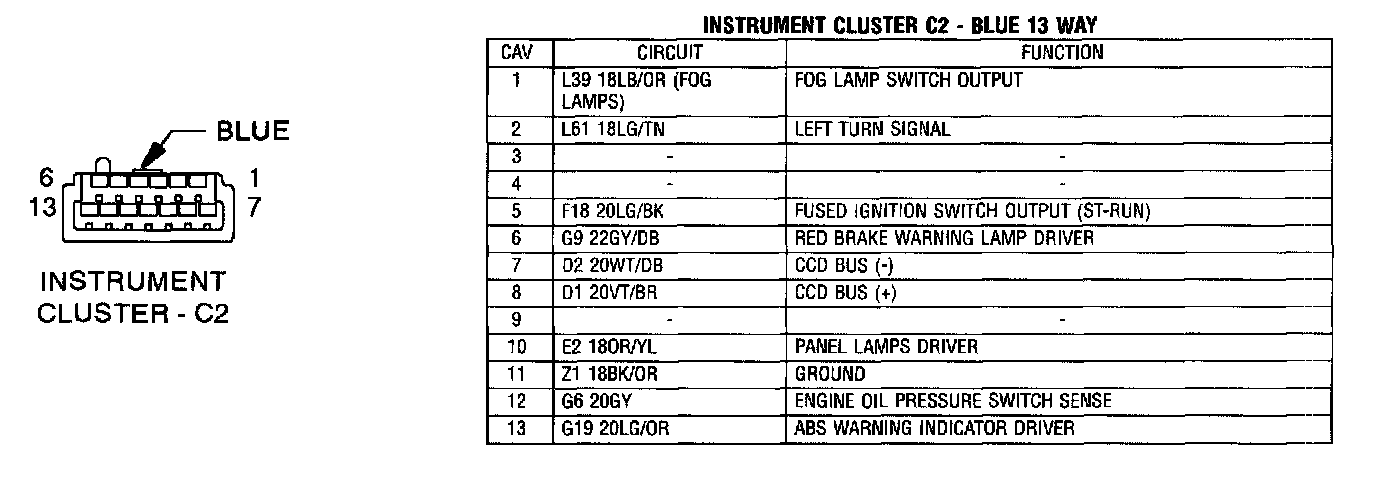

C - 2 Blue 13 Way:
