Home >> Dodge >> 1999 >> Stratus L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fog/Driving Lamp Switch

Fog/Driving Lamp Switch

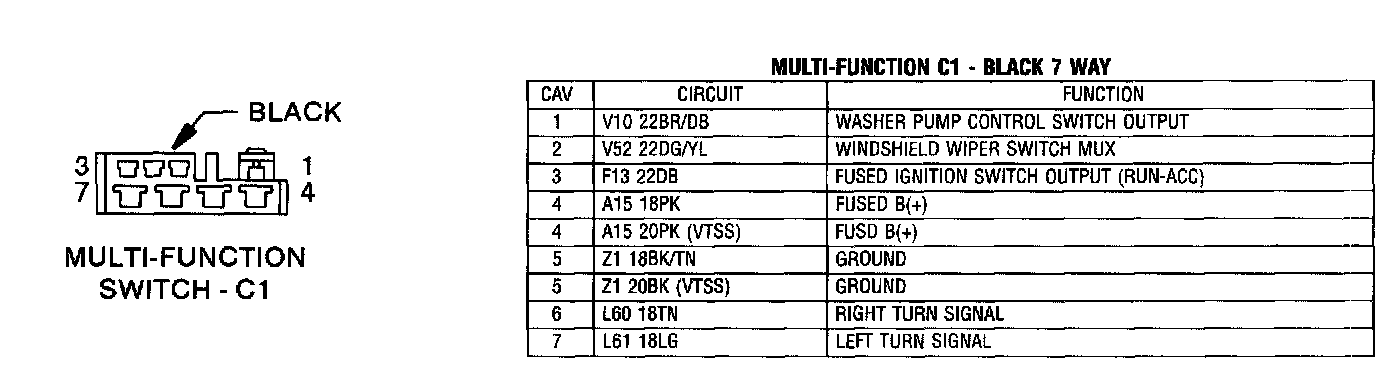

C - 1 Black:

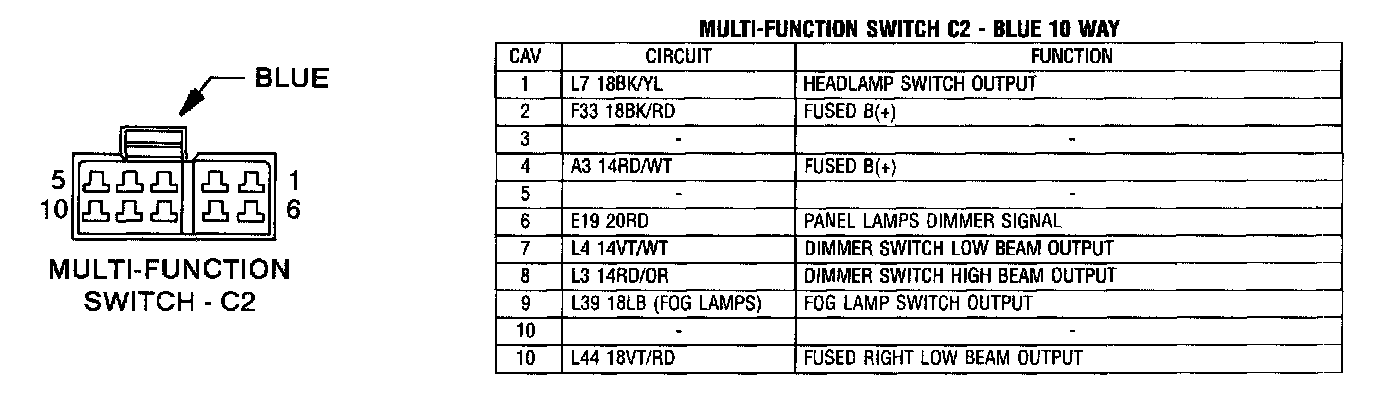

C - 2 Blue:
