A-Pillar Trim



REMOVAL AND INSTALLATION

A-PILLAR SEAL

REMOVAL

(1) Open front door.

(2) Using a fork-type tool, disengage push-in fasteners holding A-pillar seal to A-pillar.

(3) Separate A-pillar seal from vehicle.

INSTALLATION

Reverse the preceding operation.

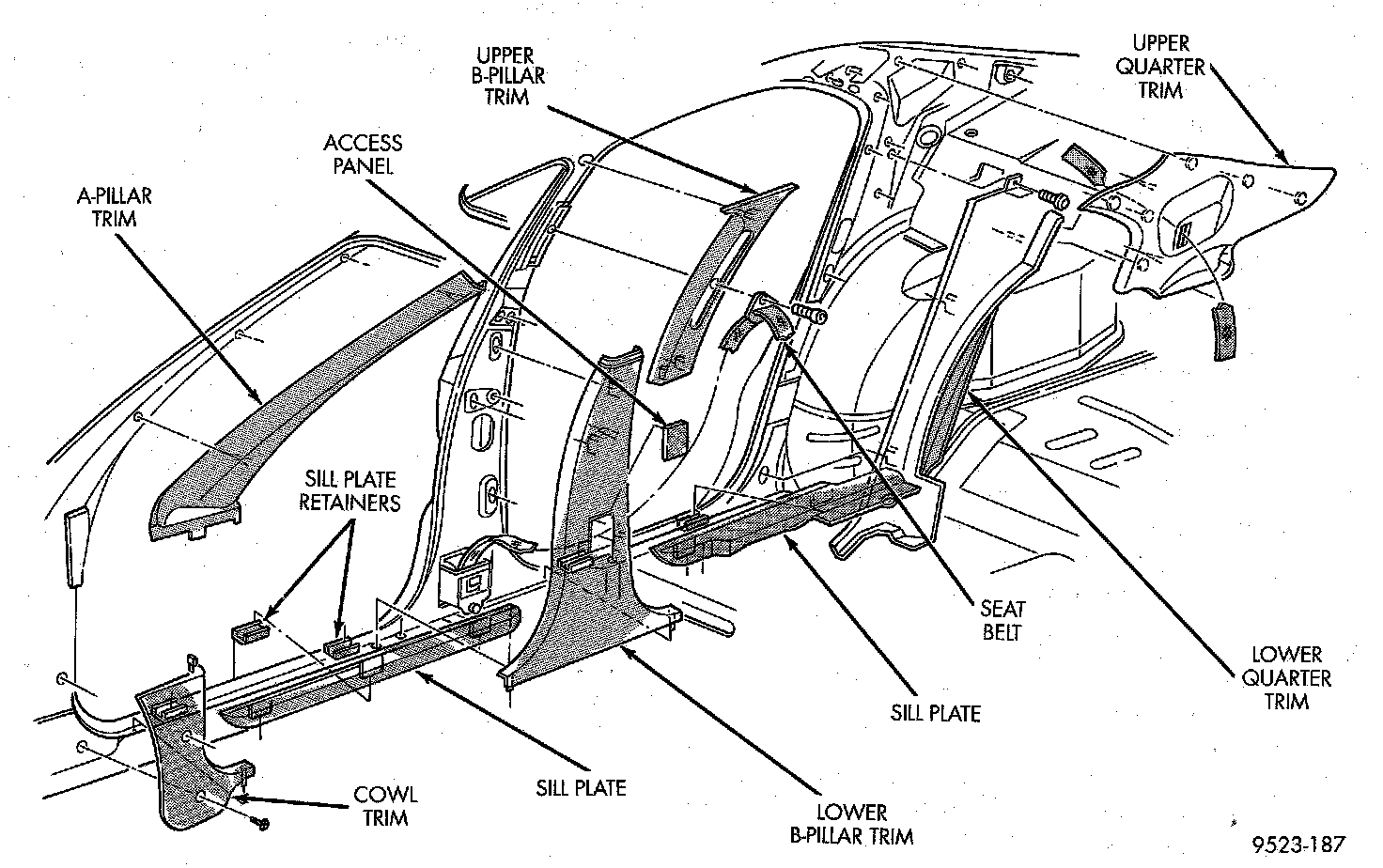

A-PILLAR TRIM






REMOVAL

(1) Disengage clips holding A-pillar trim to A-pillar.

(2) Separate A-pillar trim from vehicle.


INSTALLATION

Reverse the preceding operation.
