Instrument Panel Speaker

REMOVAL

CAUTION: Do not operate the radio with speaker leads detached. Damage to the output devices may result.

1. Remove instrument panel top cover.
a. Remove screw from right side of the top cover.

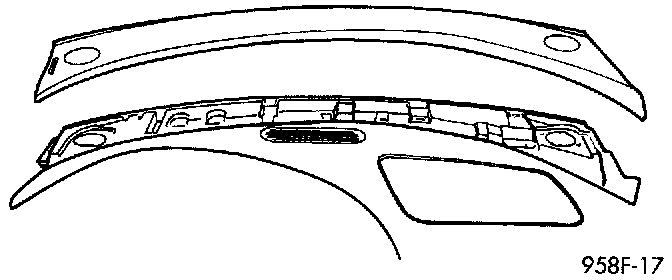

Instrument Panel Top Cover:

b. Carefully, pry up each end of top cover to disengage clips.
c. Lift rear edge of top cover using a trim stick along rear edge.
d. While lifting rear edge slide top cover rearward to disengage front clips and remove the top cover.

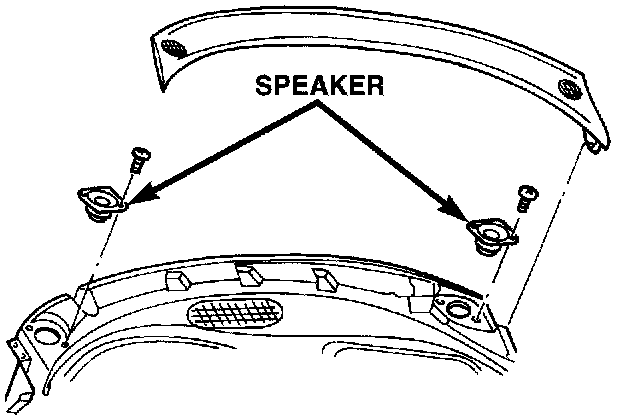

Instrument Panel Speakers:

2. To remove right or left speaker remove two retaining screws. Lift up speaker and disconnect wire connector.

INSTALLATION
- For installation, reverse the above procedures.
