Door Mounted Speaker

REMOVAL

CAUTION: Do not operate the radio with speaker leads detached. Damage to the output devices may result.

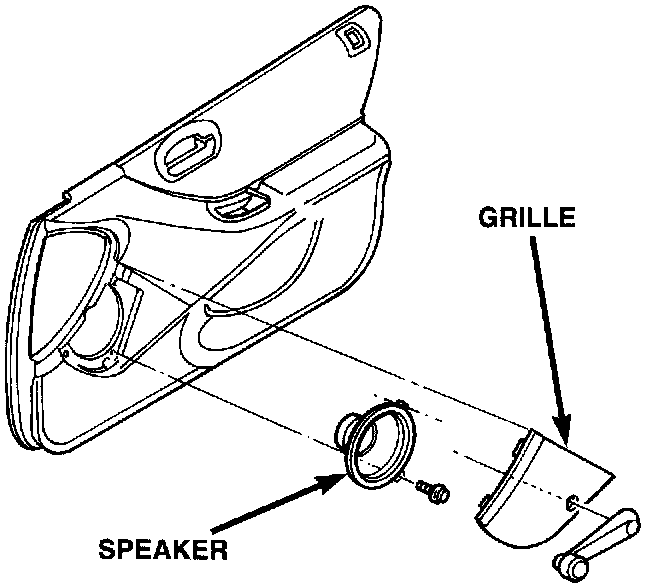

Door Mounted Speaker:

1. Remove window crank handle if equipped. Carefully, pry speaker grille away from door trim panel.
2. Remove three speaker retaining screws.
3. Pull speaker away from door and disconnect wiring.

INSTALLATION
- For installation, reverse the above procedures. Ensure speaker is in the proper position
