Vehicle Theft Security System LED Replacement

REMOVAL

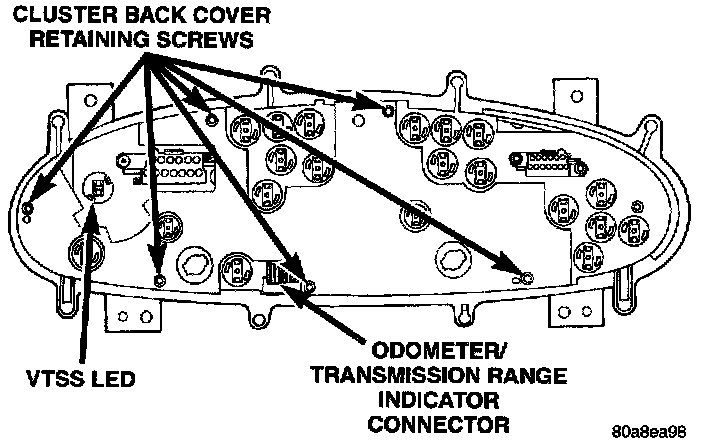

Lamp Location:

1. Disconnect Vehicle Theft Security System LED socket assembly indicator from the printed circuit board.

Back Cover Retaining Screws:

2. Rotate LED socket counter clockwise and remove from printed circuit board.

INSTALLATION
- For installation, reverse the above procedures.
