Power Antenna

REMOVAL
1. Disconnect battery negative cable.
2. Inside trunk, pull trunk liner aside.

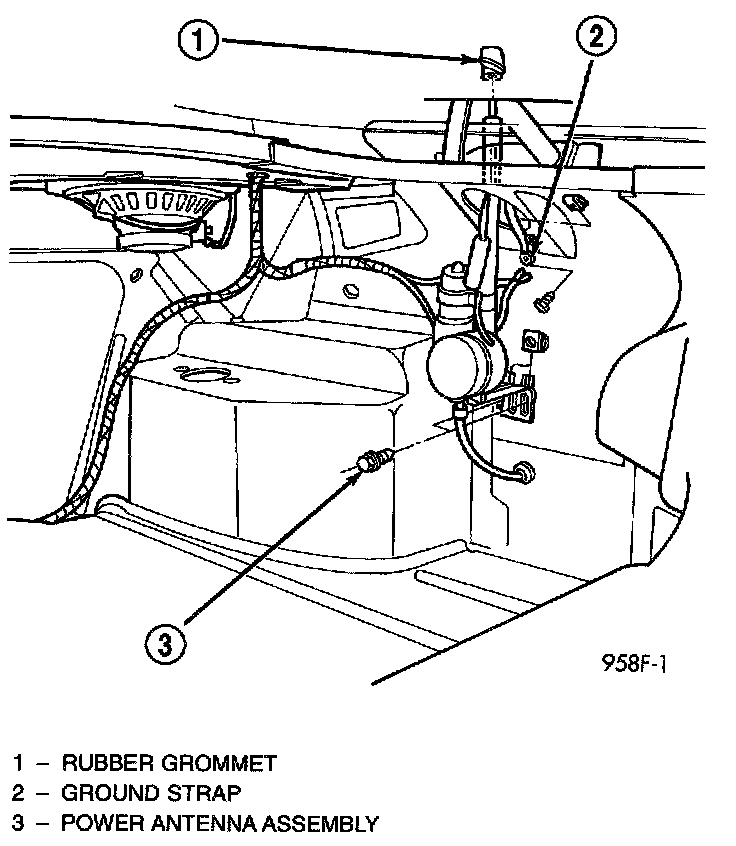

Power Antenna Assembly:

3. Unplug antenna lead from pigtail connector, disconnect wire connector, remove drain tube from grommet.
4. Remove screws attaching ground strap and antenna brace.
5. Pull antenna body down through the rubber grommet.

INSTALLATION
- For installation reverse the above procedures. Check that the grommet locating tab is in-line with the slot in the body before installing antenna. Ensure the ball of antenna body is inside grommet. Tighten antenna bracket ground strap screws to 4 N.m (40 in. lbs.) torque.
