P1797

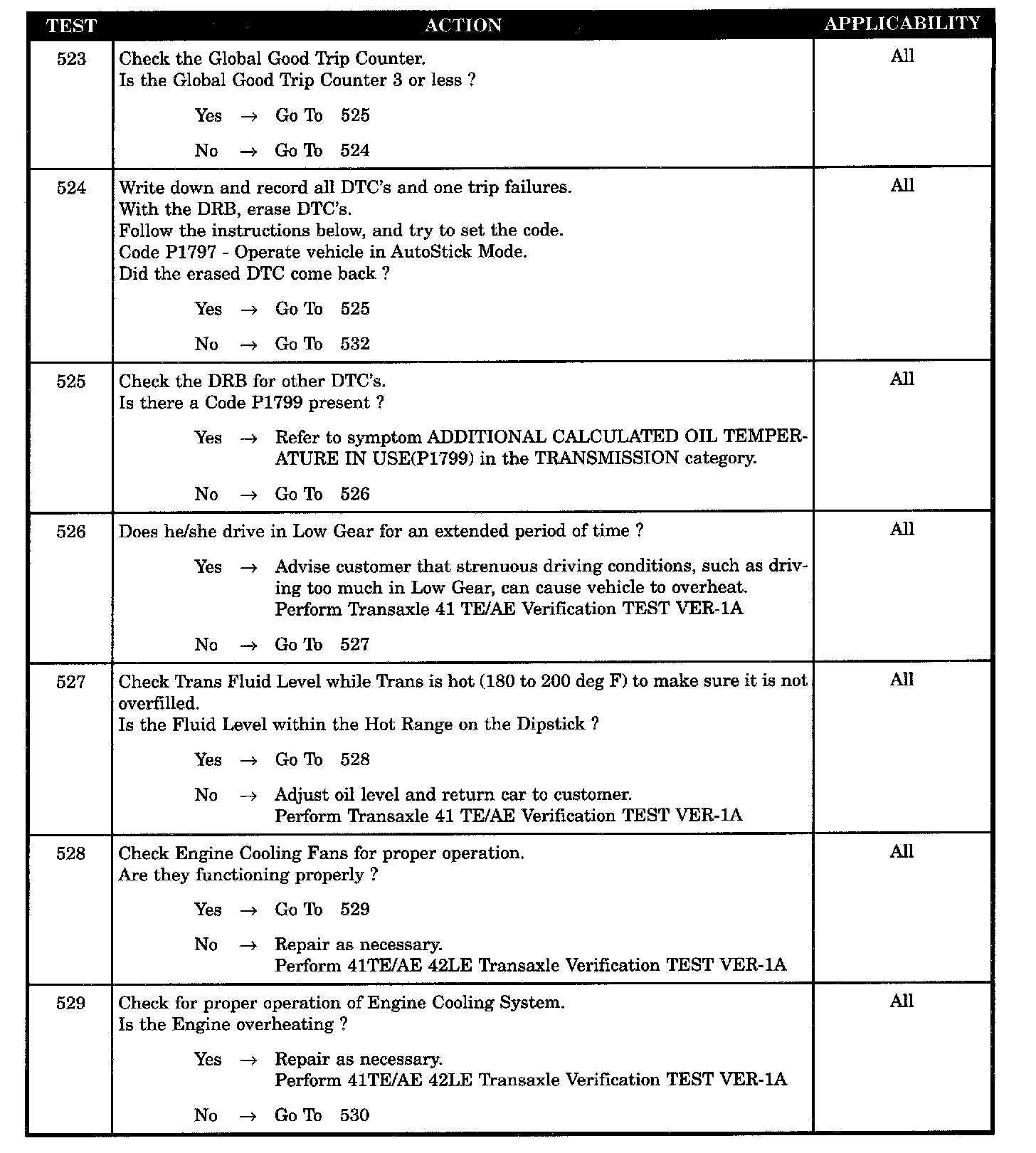

Test 523 Through 529:

Test 530 Through 533:

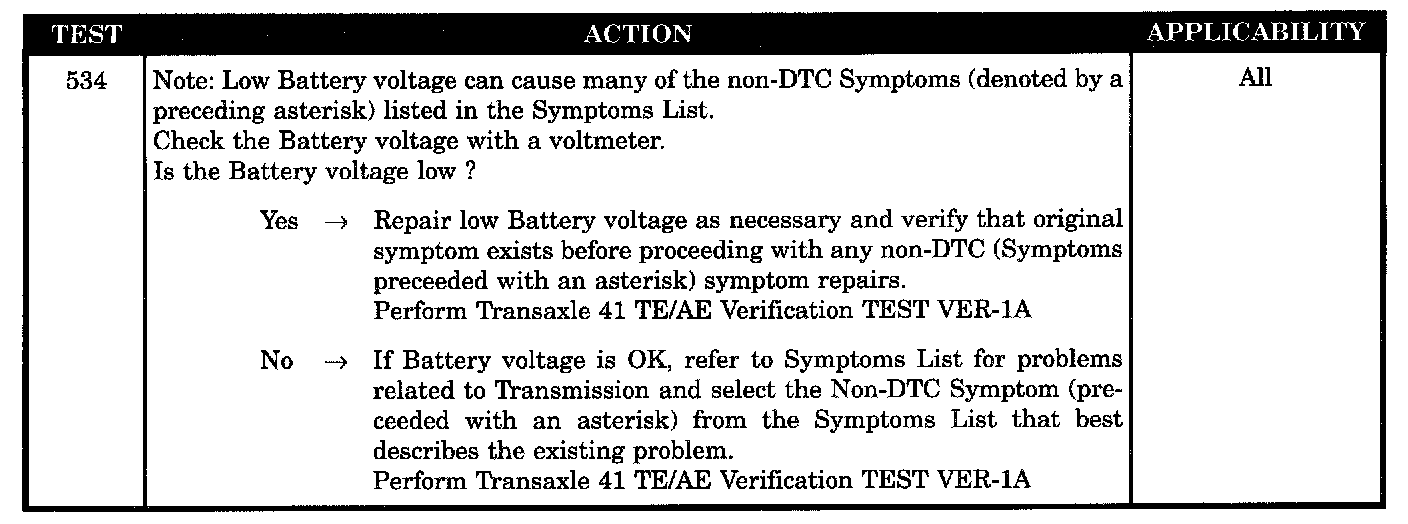

Test 534:

Symptom:
P1797 - MANUAL SHIFT OVERHEAT

POSSIBLE CAUSES
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE CAUSING SYMPTOM
TRANSMISSION OVERFILLED WITH OIL
AGGRESSIVE DRIVING FOR EXTENDED PERIODS
EXTENSIVE DRIVING IN LOW GEAR
ENGINE COOLING FANS MALFUNCTIONING
ENGINE COOLING SYSTEM MALFUNCTIONING
INTERMITTENT P1797
TRANSMISSION OIL COOLER PLUGGED
