P1796

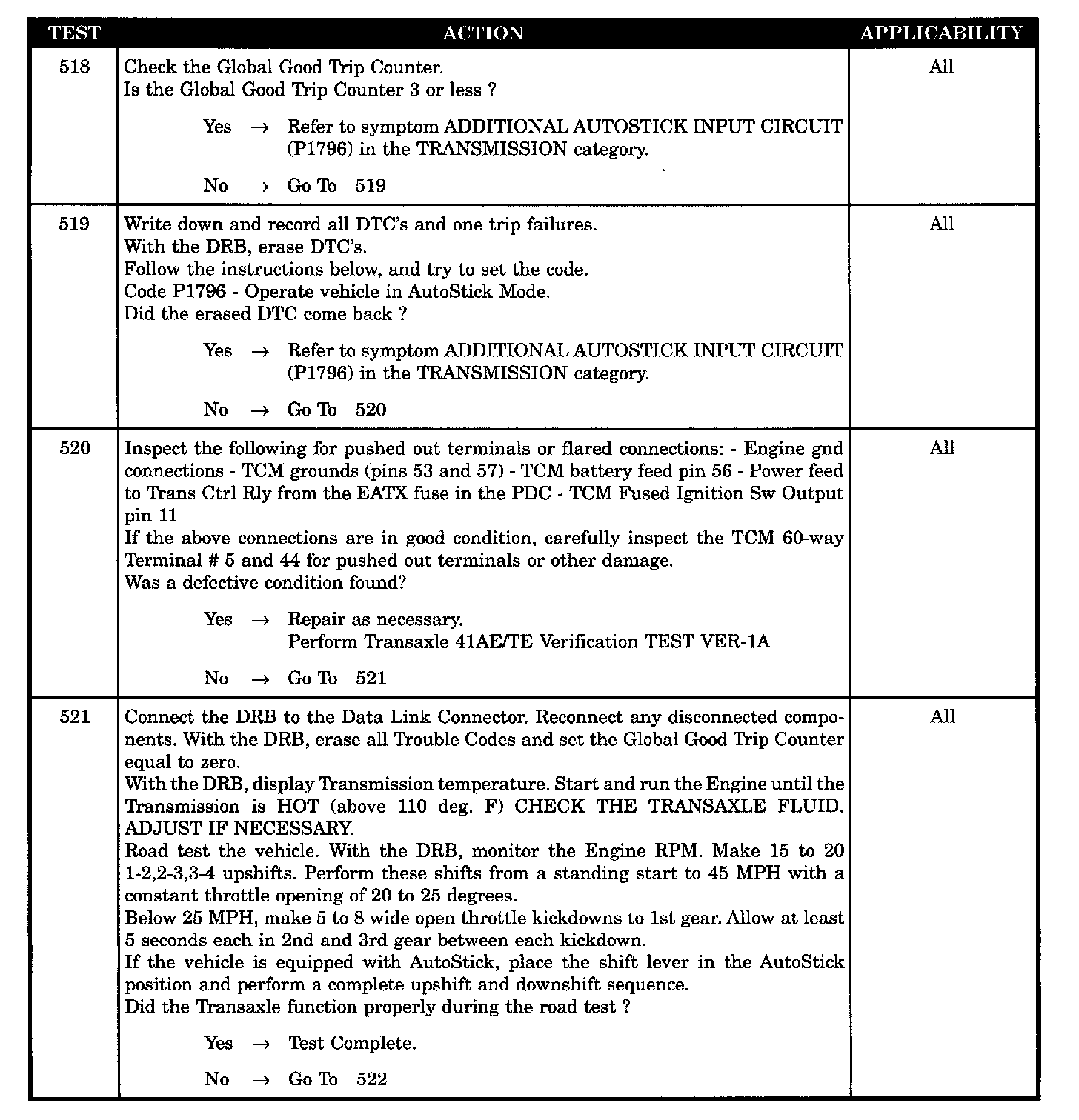

Test 518 Through 521:

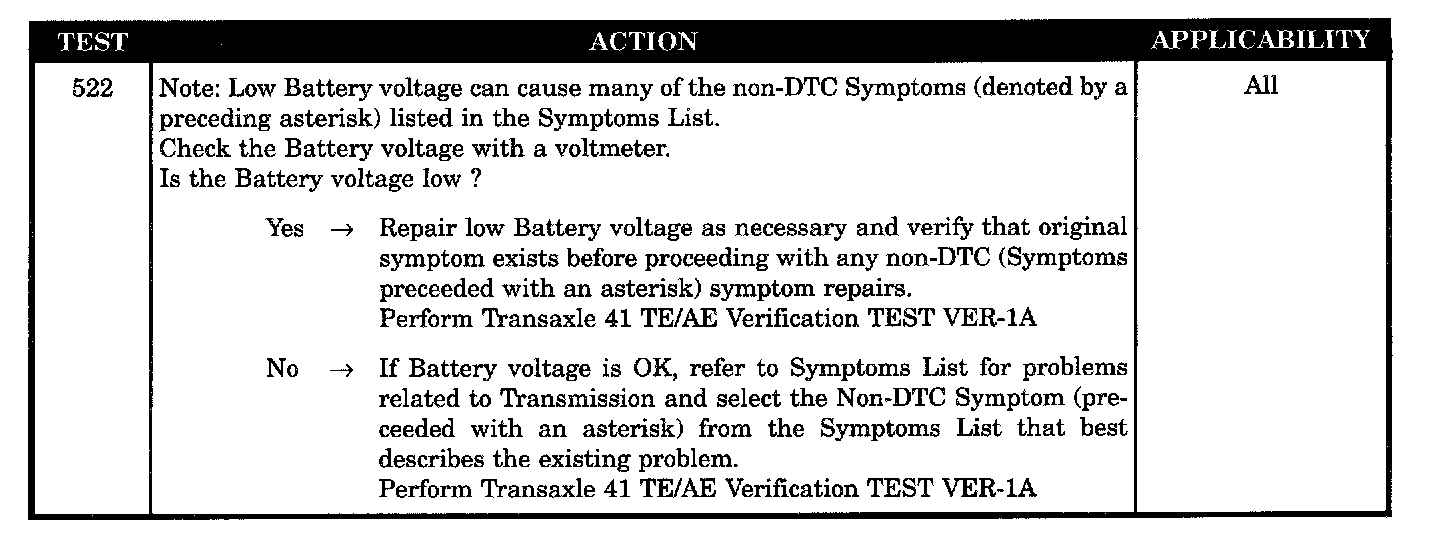

Test 522:

Symptom:
P1796 - AUTOSTICK INPUT CIRCUIT

POSSIBLE CAUSES
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE CAUSING SYMPTOM
INTERMITTENT CODE P1796

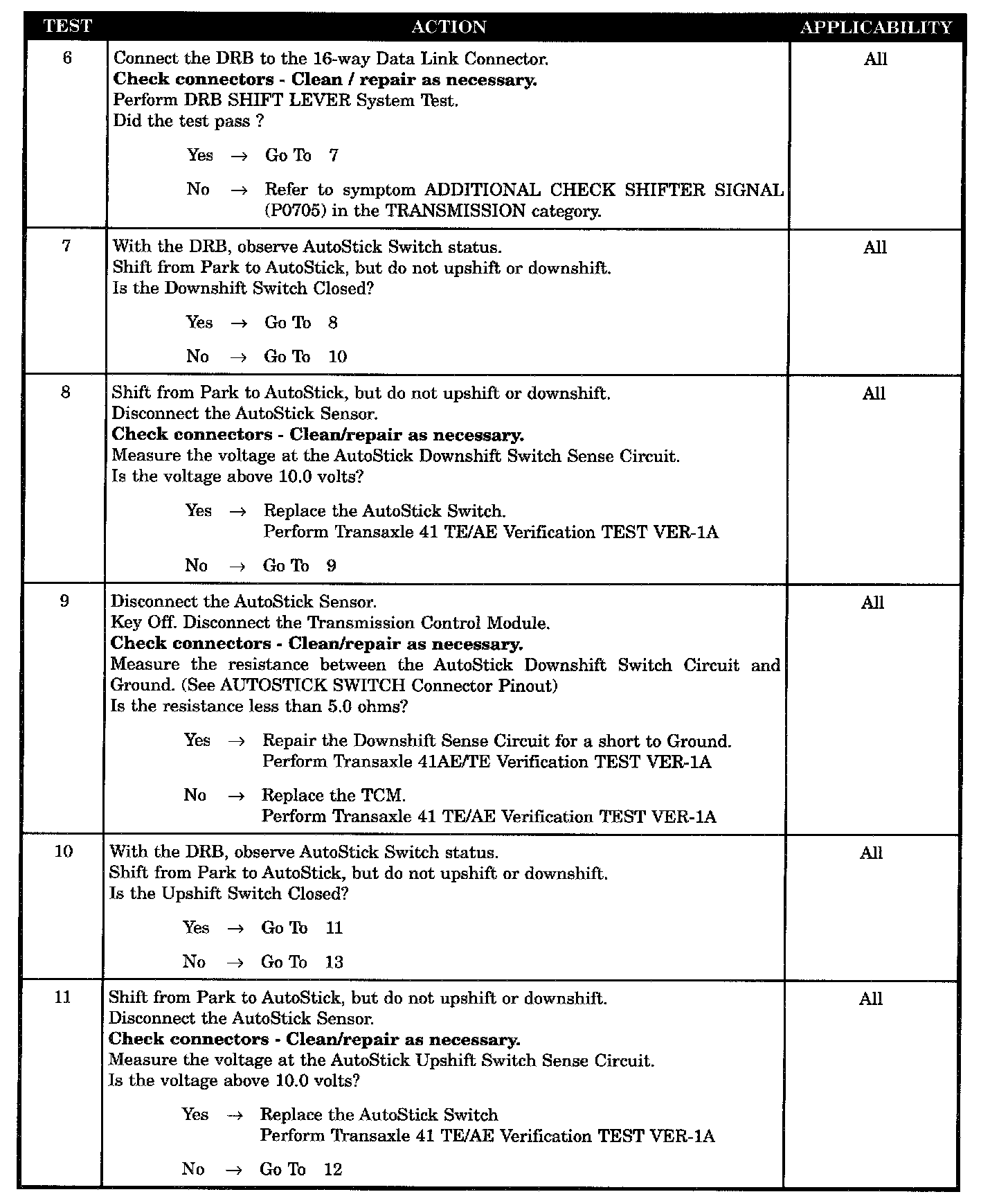

Test 6 Through 11:

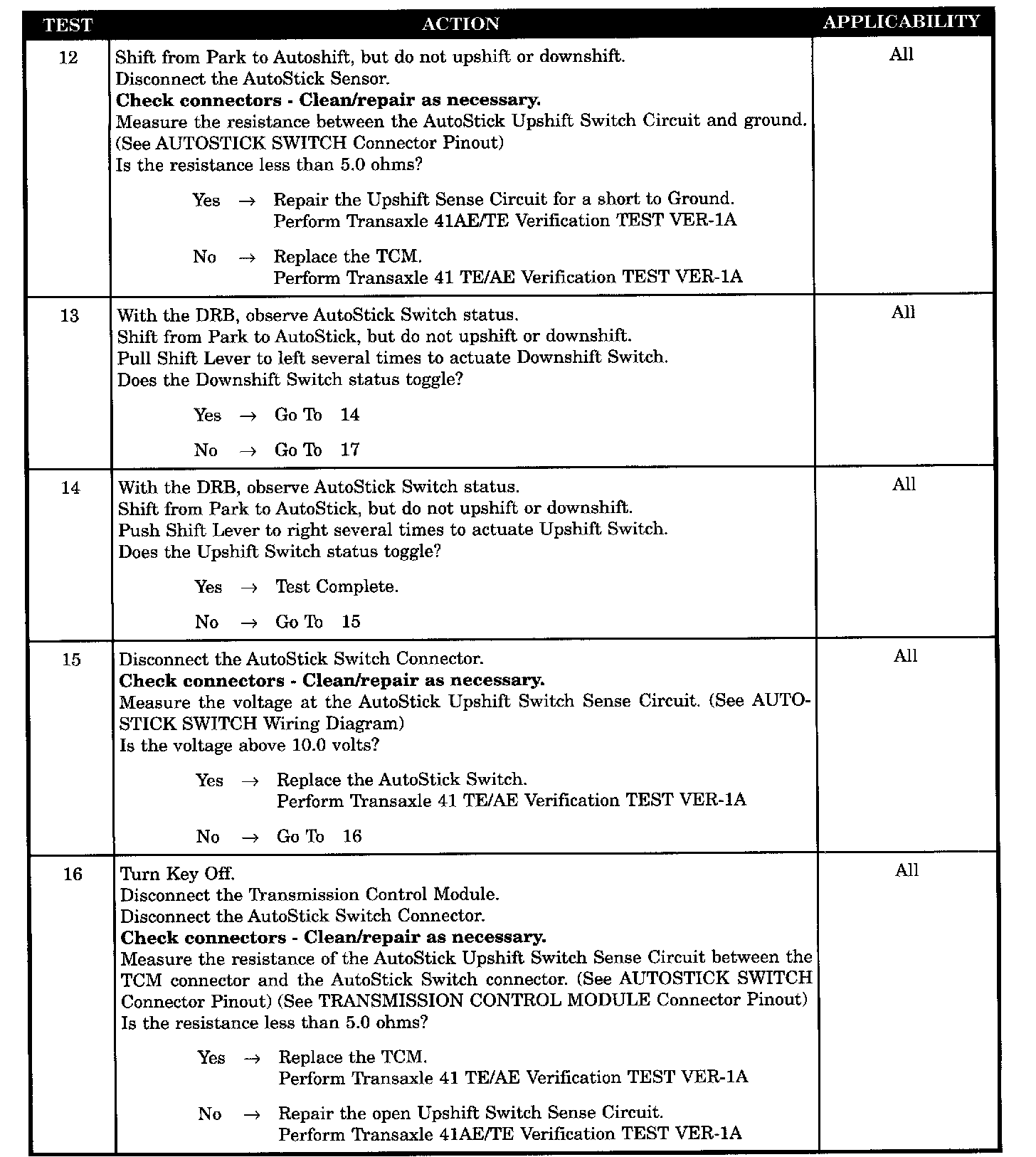

Test 12 Through 16:

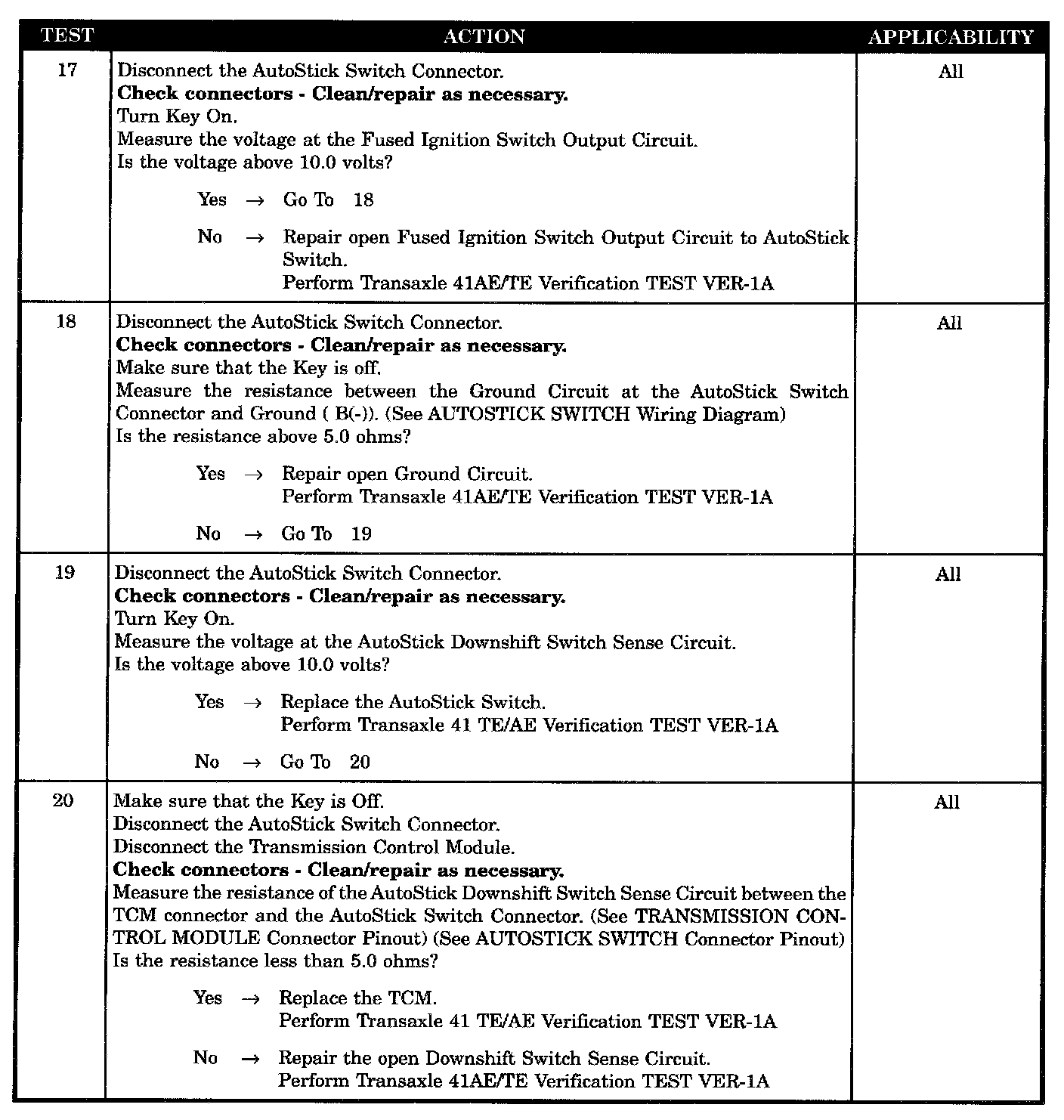

Test 17 Through 20:

Symptom:
ADDITIONAL AUTOSTICK INPUT CIRCUIT (P1796)

POSSIBLE CAUSES
GROUND CIRCUIT OPEN
FUSED IGNITION SWITCH OUTPUT CIRCUIT TO AUTOSTICK SWITCH OPEN
AUTOSTICK DOWNSHIFT SWITCH STUCK CLOSED
AUTOSTICK DOWNSHIFT SWITCH STUCK OPEN
AUTOSTICK DOWNSHIFT SWITCH SENSE CIRCUIT OPEN
AUTOSTICK UPSHIFT SWITCH STUCK CLOSED
AUTOSTICK UPSHIFT SWITCH STUCK OPEN
DOWNSHIFT SENSE SHORTED TO GROUND
UPSHIFT SENSE SHORTED TO GROUND
TCM AUTOSTICK DOWNSHIFT SENSE OPEN
TCM AUTOSTICK DOWNSHIFT SENSE SHORTED TO GROUND
TCM AUTOSTICK UPSHIFT SENSE OPEN
TCM AUTOSTICK UPSHIFT SENSE SHORTED TO GROUND
AUTOSTICK UPSHIFT SWITCH SENSE CIRCUIT OPEN
