P1795

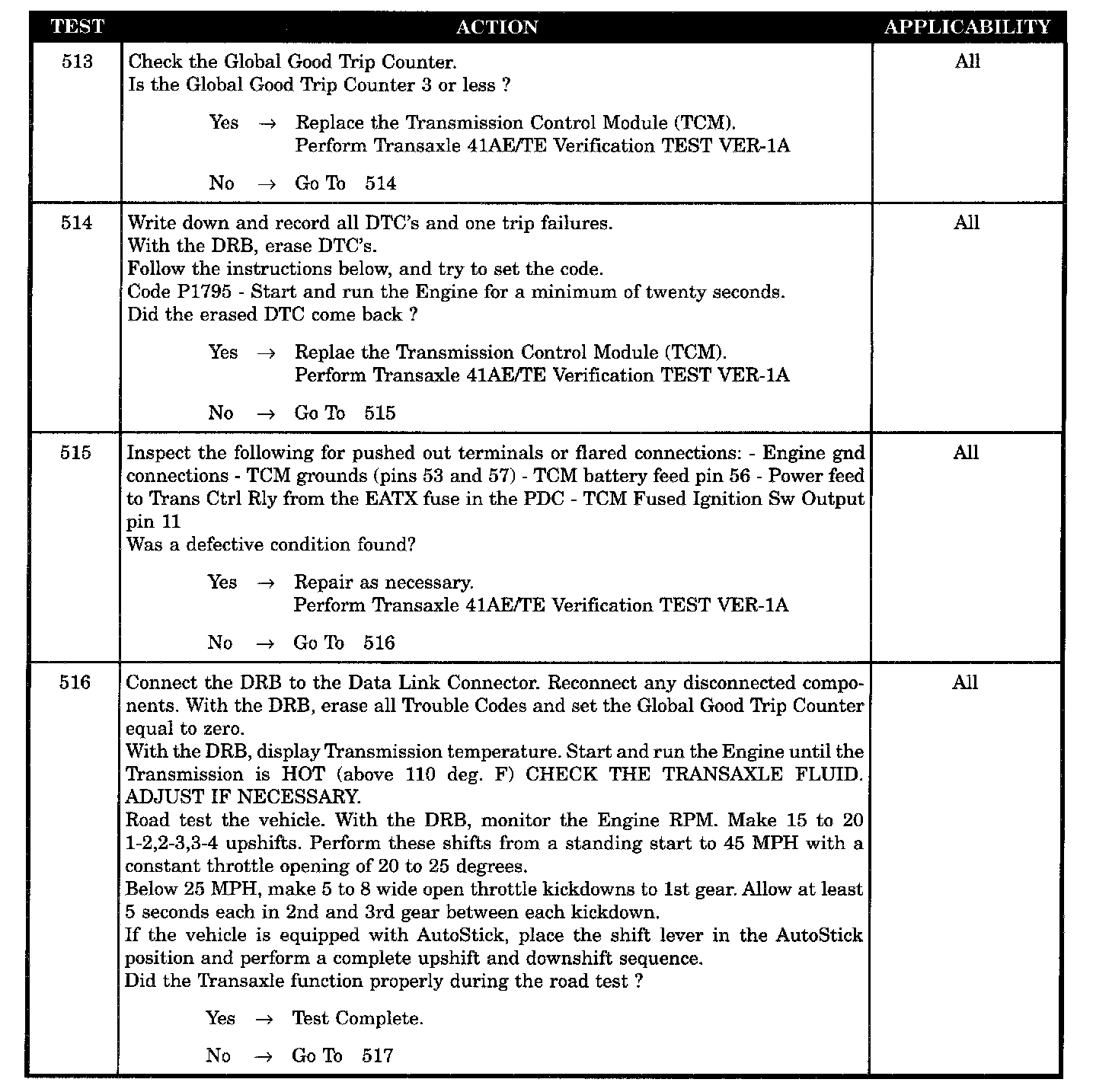

Test 513 Through 516:

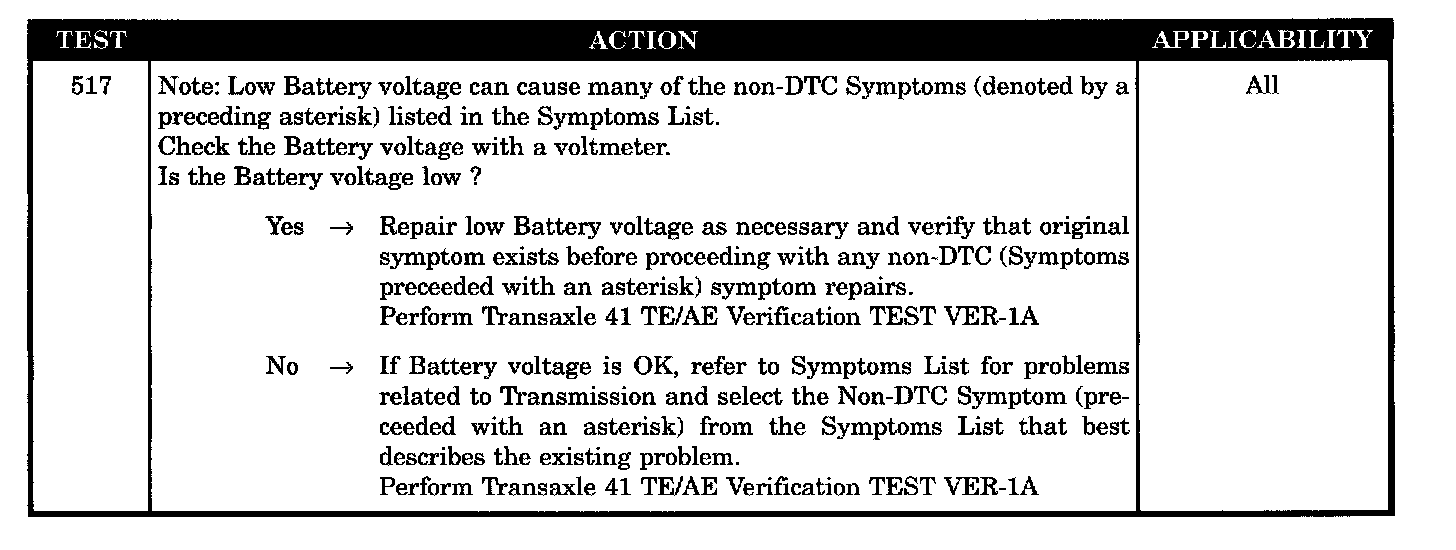

Test 517:

Symptom:
P1795-INTERNAL TRANS CONTROLLER

When Monitored and Set Condition:
P1795-INTERNAL TRANS CONTROLLER

When Monitored:
After a reset (ignition key turned to the RUN position or after cranking engine).

Set Condition:
Engine model stored in EEPROM is different from data stored in RAM.

POSSIBLE CAUSES
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE CAUSING SYMPTOM
INTERMITTENT CODE P1795
P01795 GLOBAL GOOD TRIP COUNTER LESS THAN 3
SETTING DIAGNOSTIC TROUBLE CODE P1795
