Wipers Run Constantly W/Ignition on

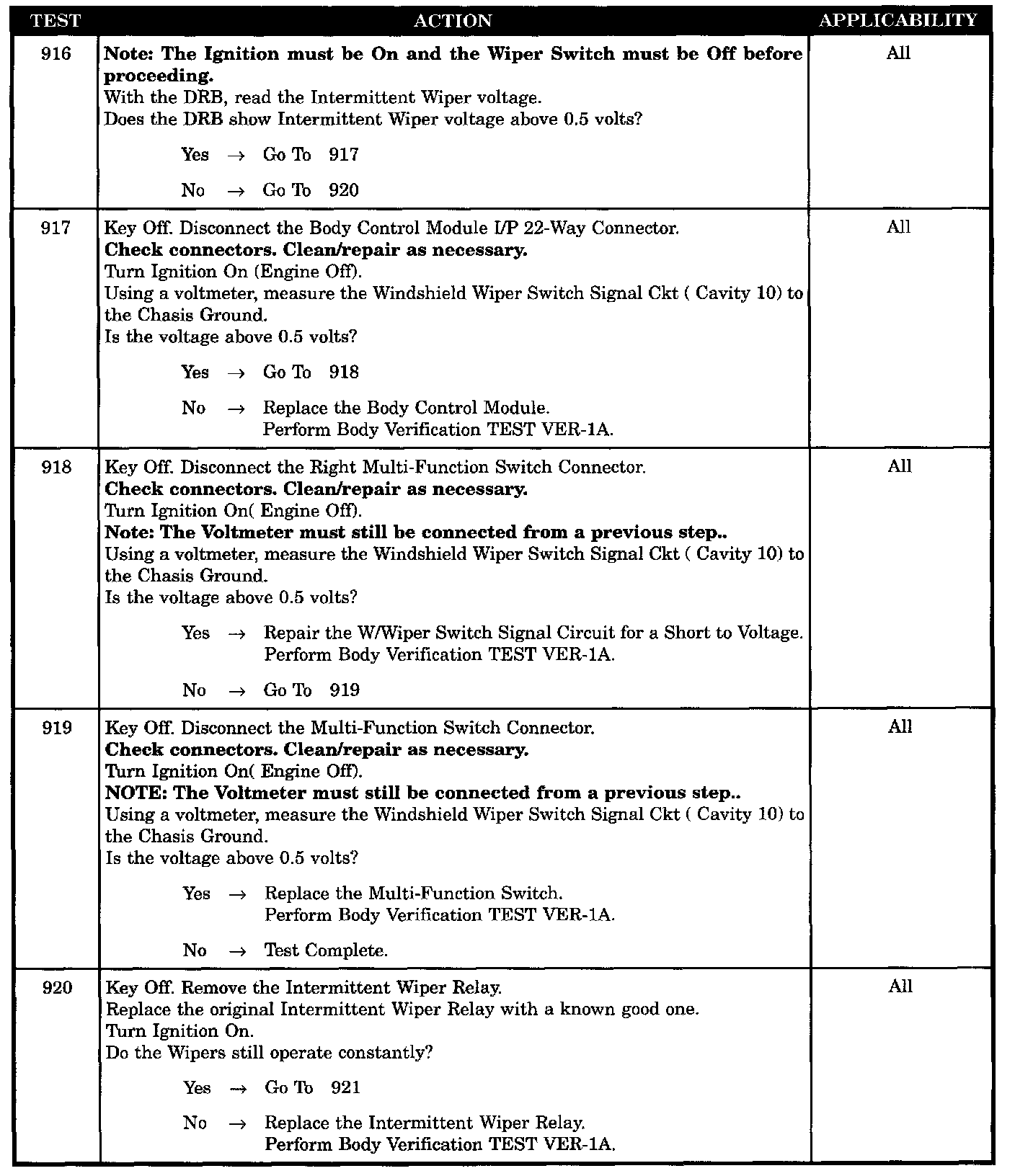

Test 916 - 920:

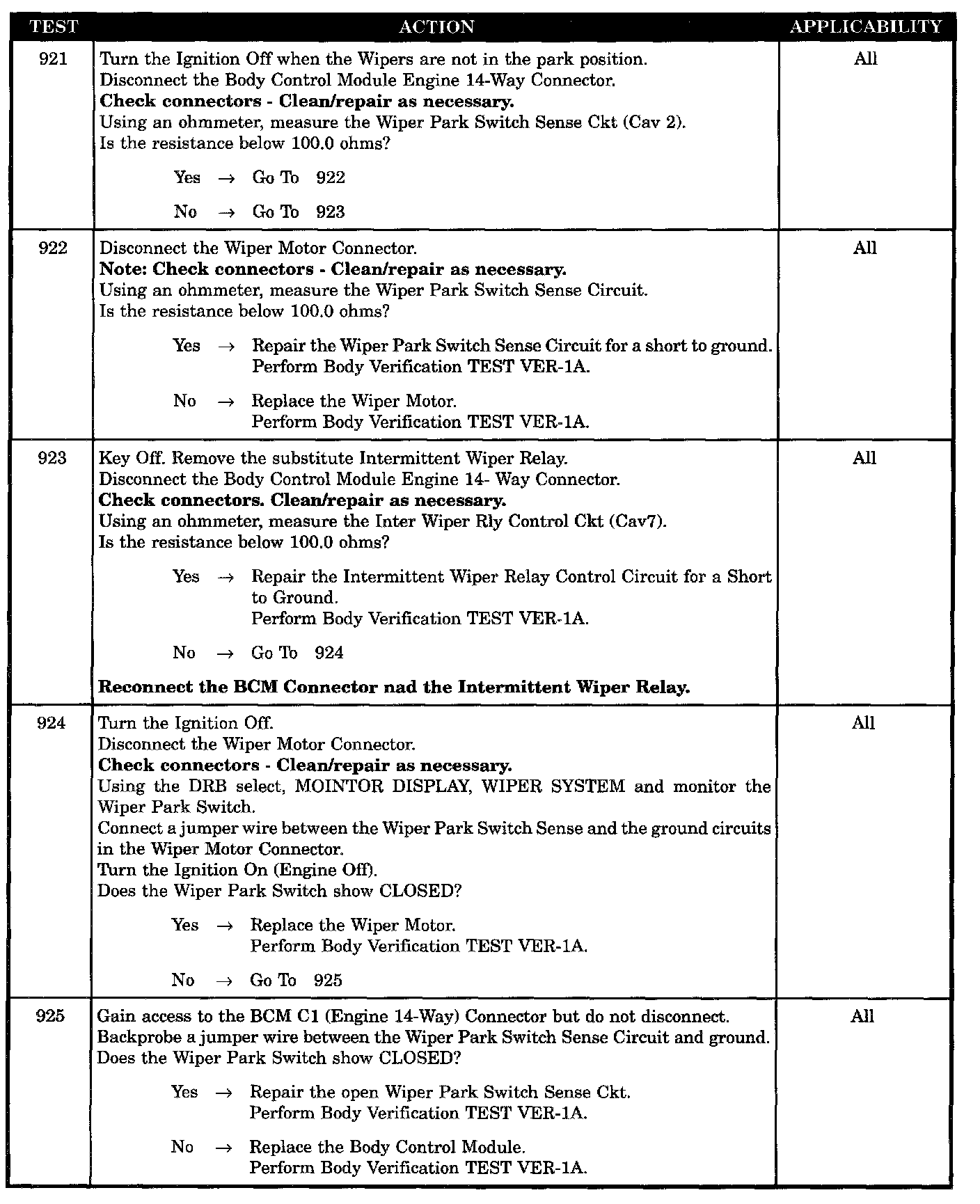

Test 921 - 925:
SYMPTOM
* WIPERS RUN CONSTANTLY W/IGNITION ON
POSSIBLE CAUSES
- Interm wiper relay control CKT SH/GND
- Interm wiper RLY/SUBSTI relay
- W/Wiper SW signal CKT-SH/Volts
- Wiper park switch sense circuit - short to ground
- Wiper park switch sense circuit open
- DEF Multi-function switch/switch connector
- defective wiper motor/wipers run constantly
- DEF BCM/Wipers SW SIG CKT
- Defective BCM- Wipers run constantly
- Defective wiper motor-runs constantly
