Wiper Not Working At All

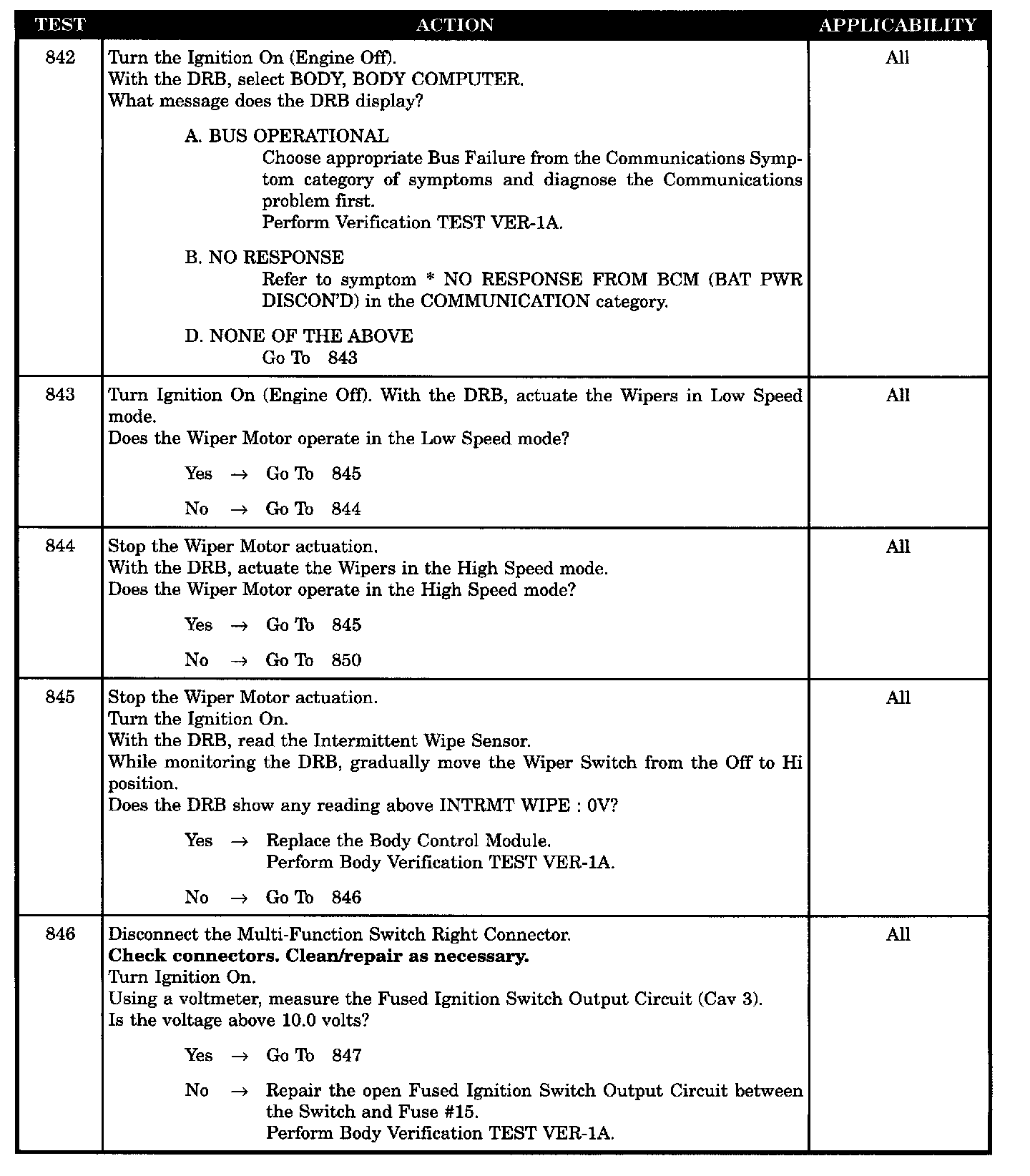

Test 842 - 846:

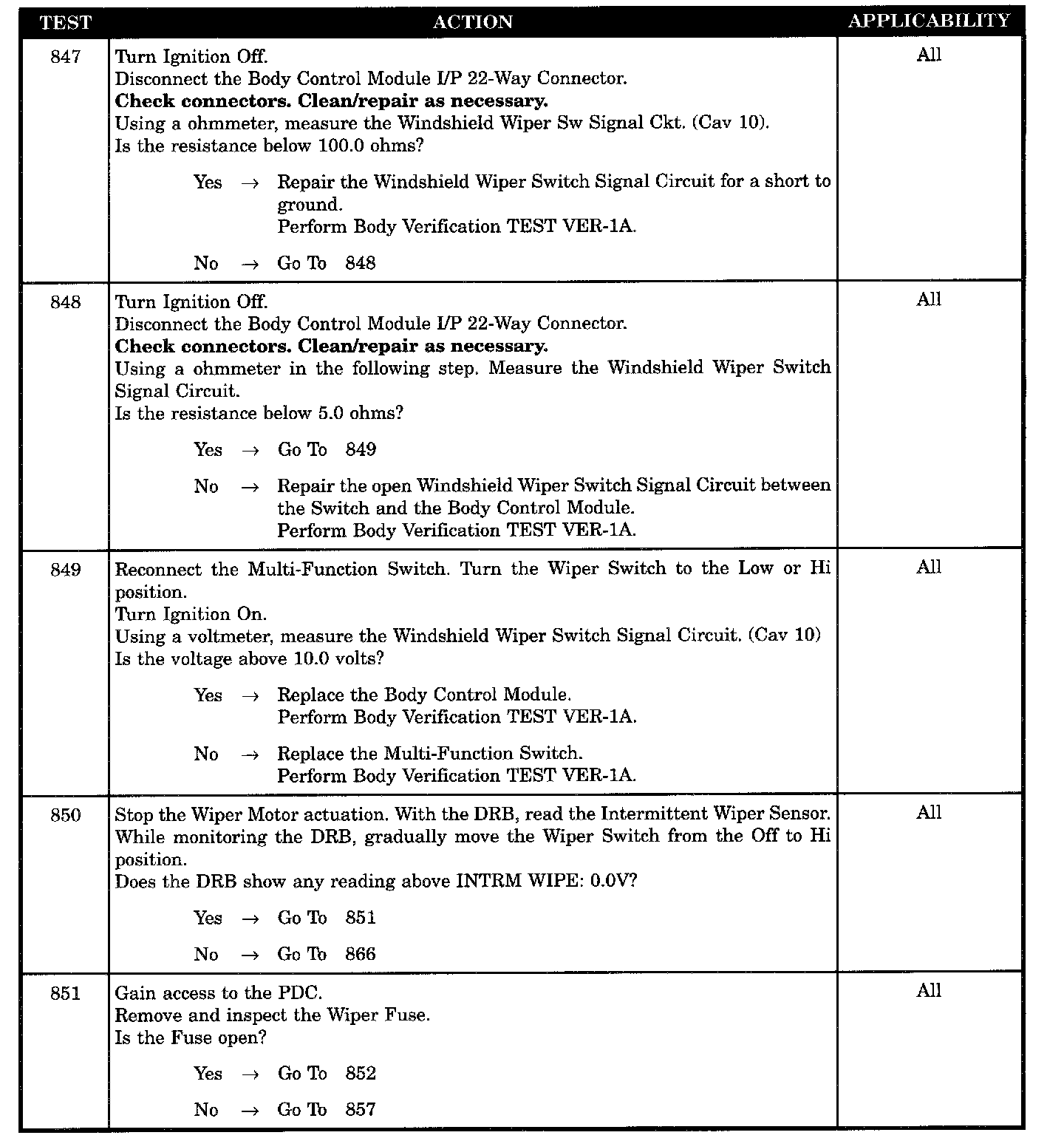

Test 847 - 851:

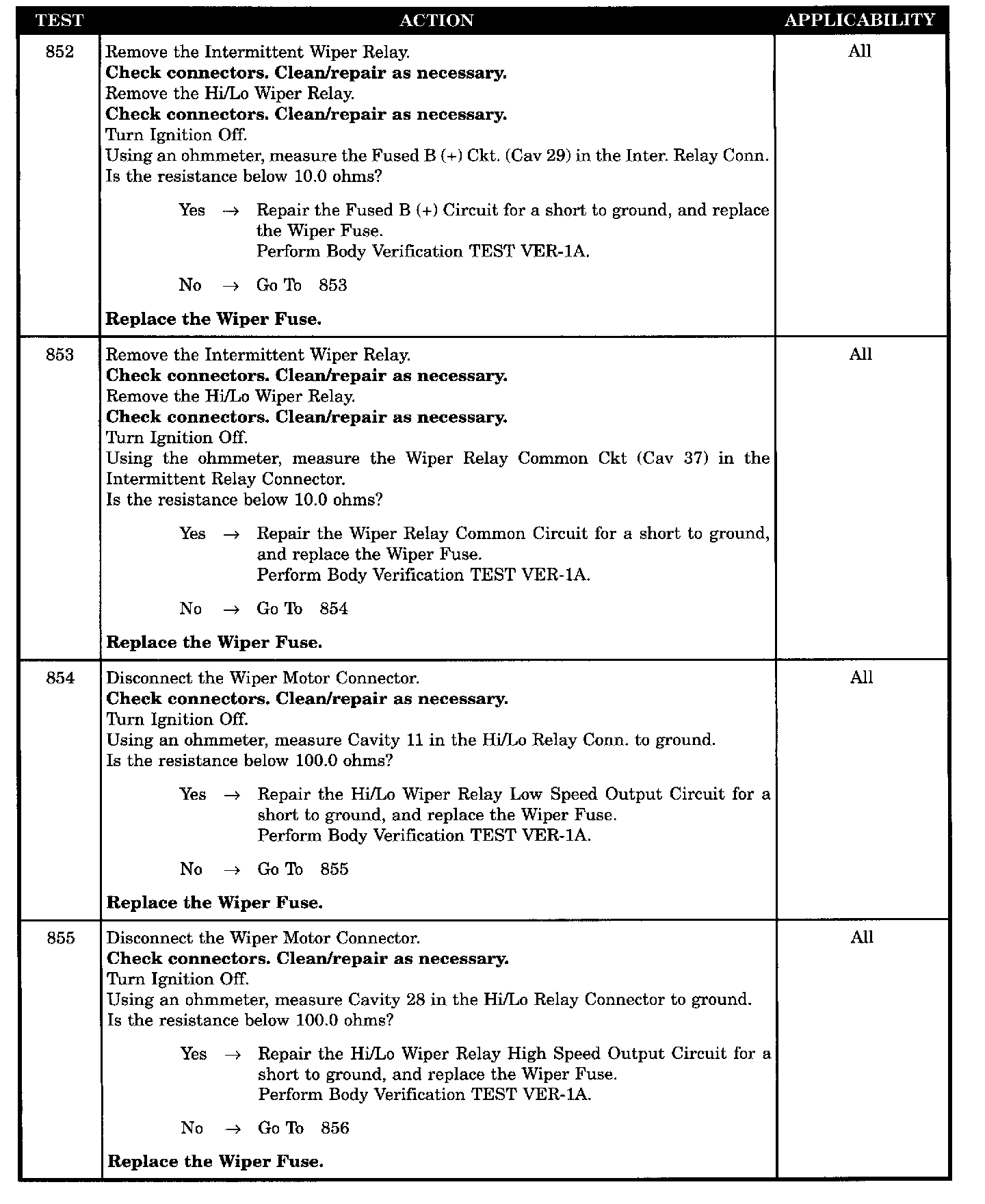

Test 852 - 855:

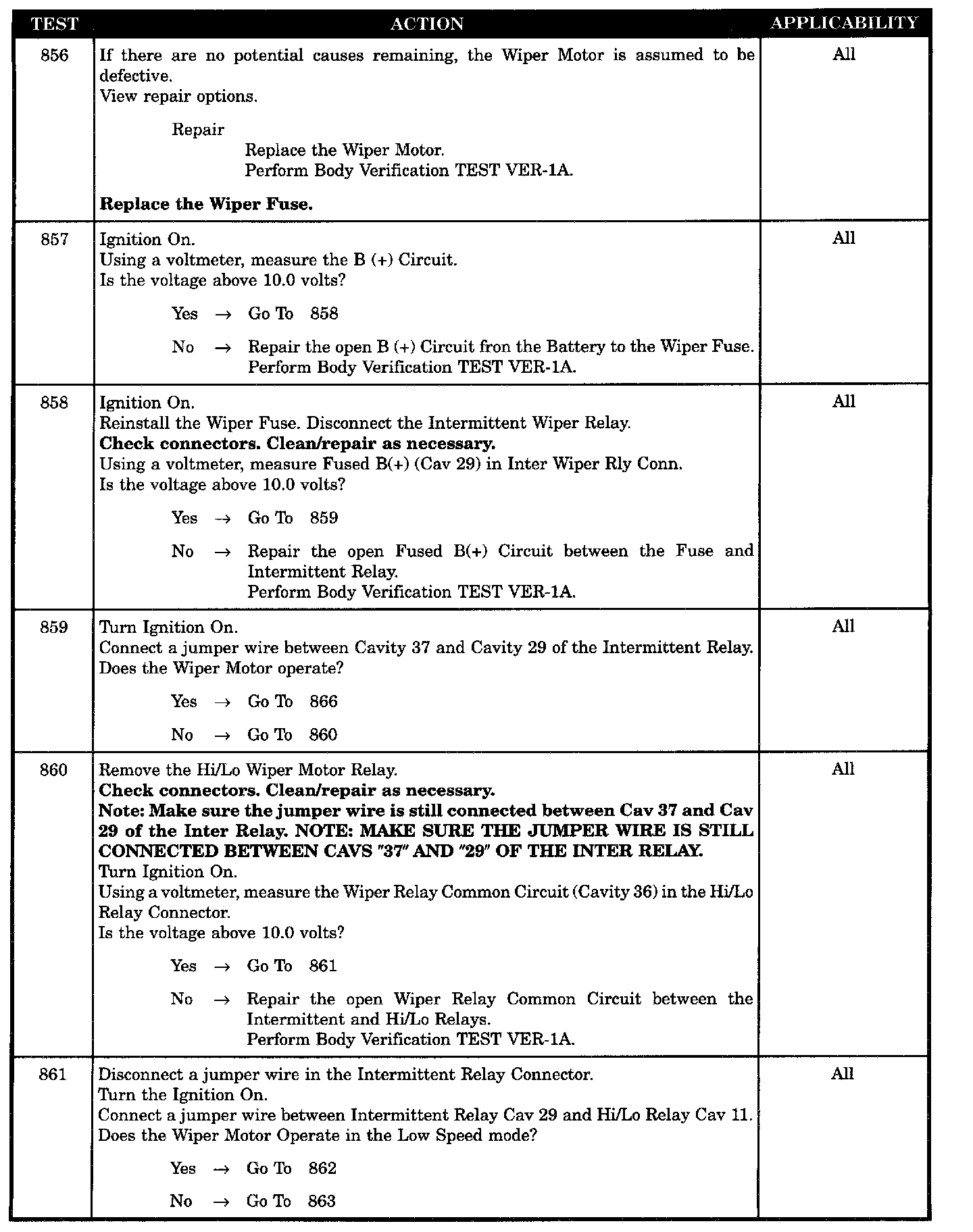

Test 856 - 861:

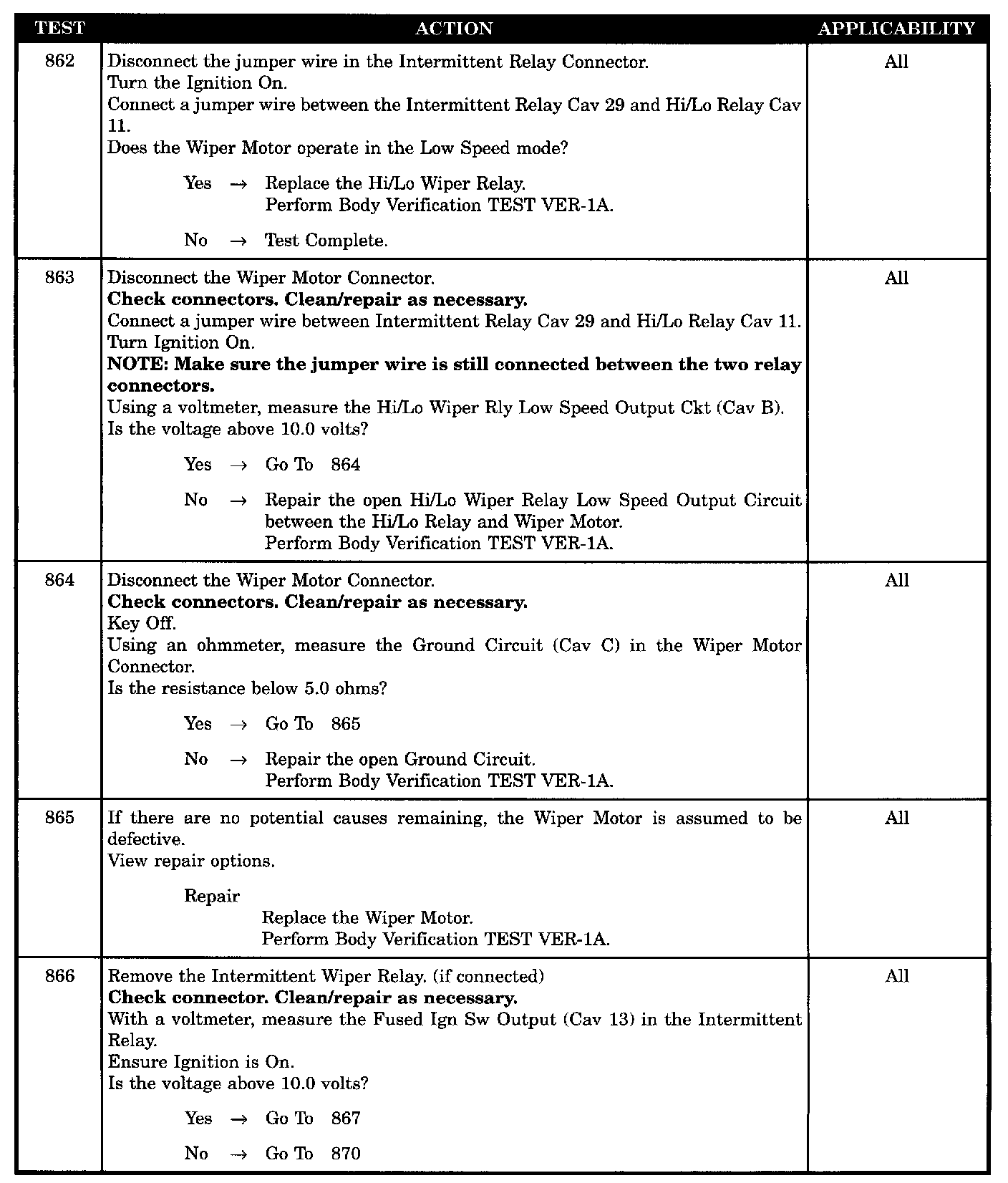

Test 862 - 866:

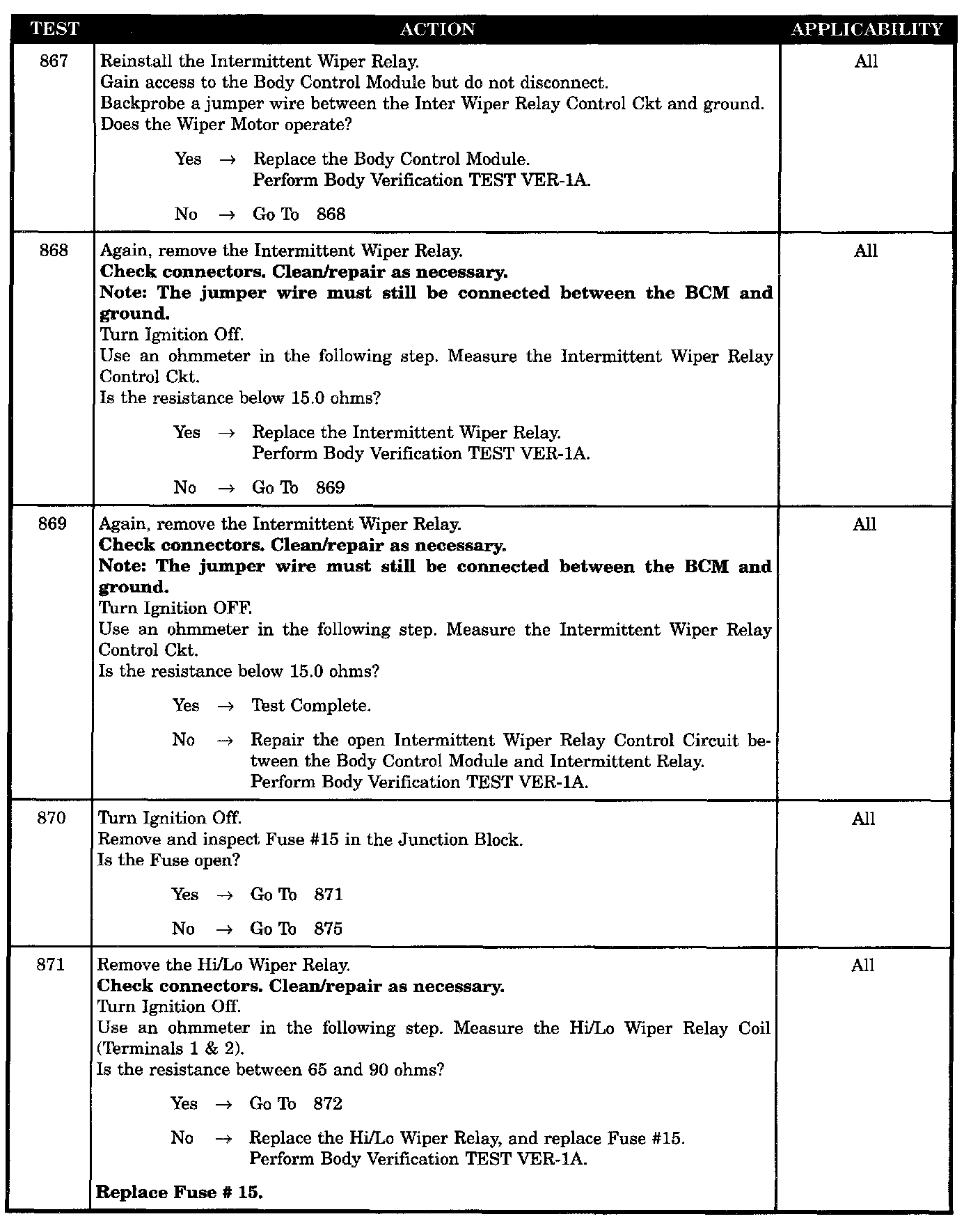

Test 867 - 871:

Test 872 - 876:

SYMPTOM
* WIPER NOT WORKING AT ALL

POSSIBLE CAUSES
- SCI/PCI COMM failure- bus operational
- Open B (+) circuit- battery/wiper fuse
- Open ignition switch output circuit
- DEF intermittent wiper relay
- DEF intermittent wiper relay/RLY coil
- Fused B (+) circuit short/ground
- HI/LO wiper relay HI speed output circuit- short/GND
- Open fused B(+) circuit-between fuse/intermittent relay
- Open ground circuit
- Open intermittent wiper relay control circuit
- Open wiper relay common circuit between intermittent-HI/LO relay
- Wiper relay common CKT SH/GND
- HI/LO Wiper relay LO speed output circuit- short/GND
- Open HI/LO wiper LO speed output circuit between H/L RLY-WM
- Open wiper switch signal circuit between SW/BCM
- Wiper switch signal CKT short/ground
- Fused ignition switch output CKT SH/GND
- Open fused ignition switch output circuit
- Open fused ignition switch output circuit- switch/fuse #15
- DEF HI/LO wiper relay- wiper motor
- DEF HI/LO wiper relay-relay coil
- DEF multi-function switch/BCM
- DEF multi-function switch/fused ignition switch output CKT
- DEF wiper motor/ground CKT
- DEF wiper motor/H-L relay default
- DEF BCM/WIPER motor operate
- DEF BCM/WIPER motor actuation
- DEF BCM default
