VTSS System Problems

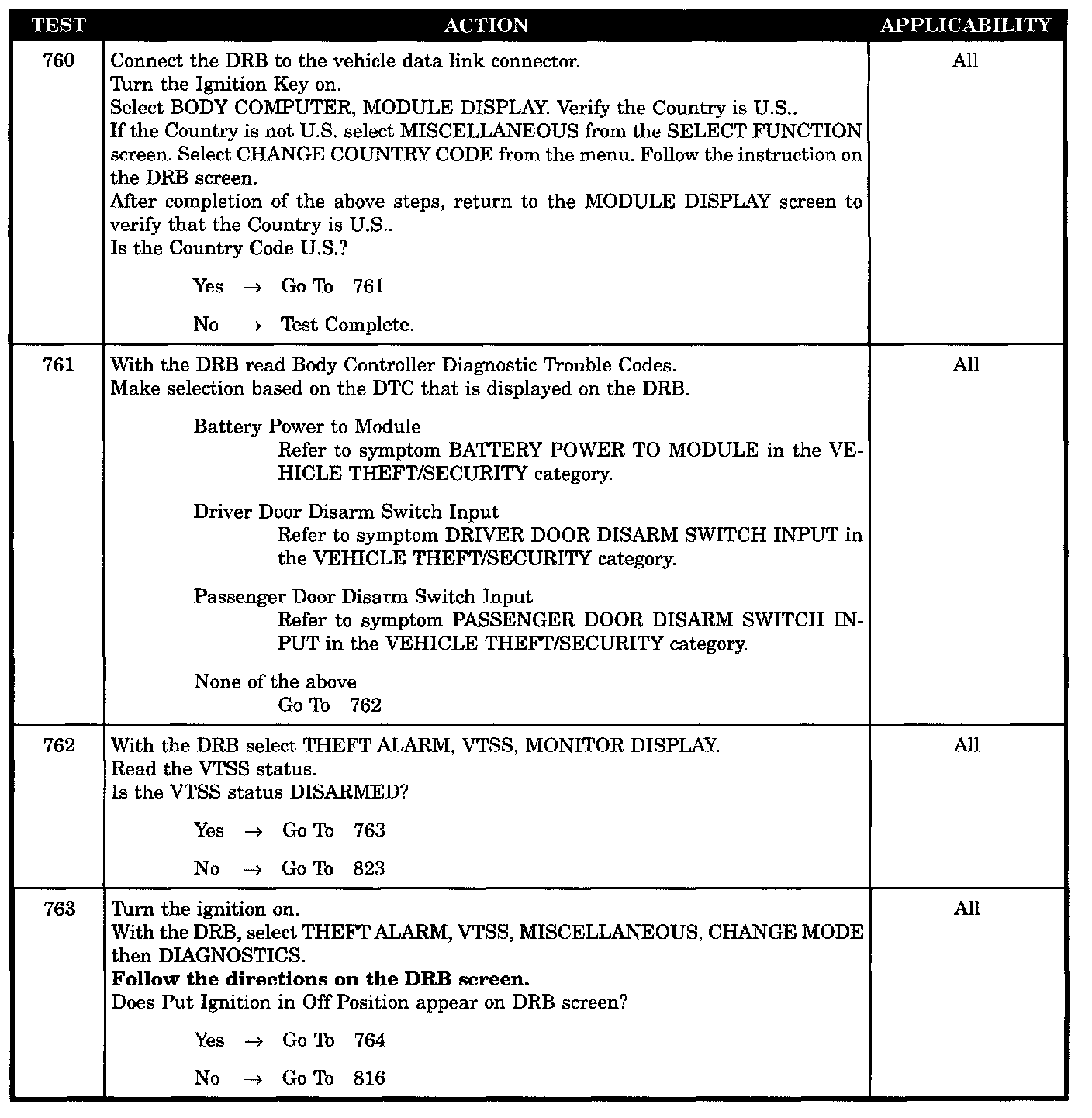

Test 760 - 763:

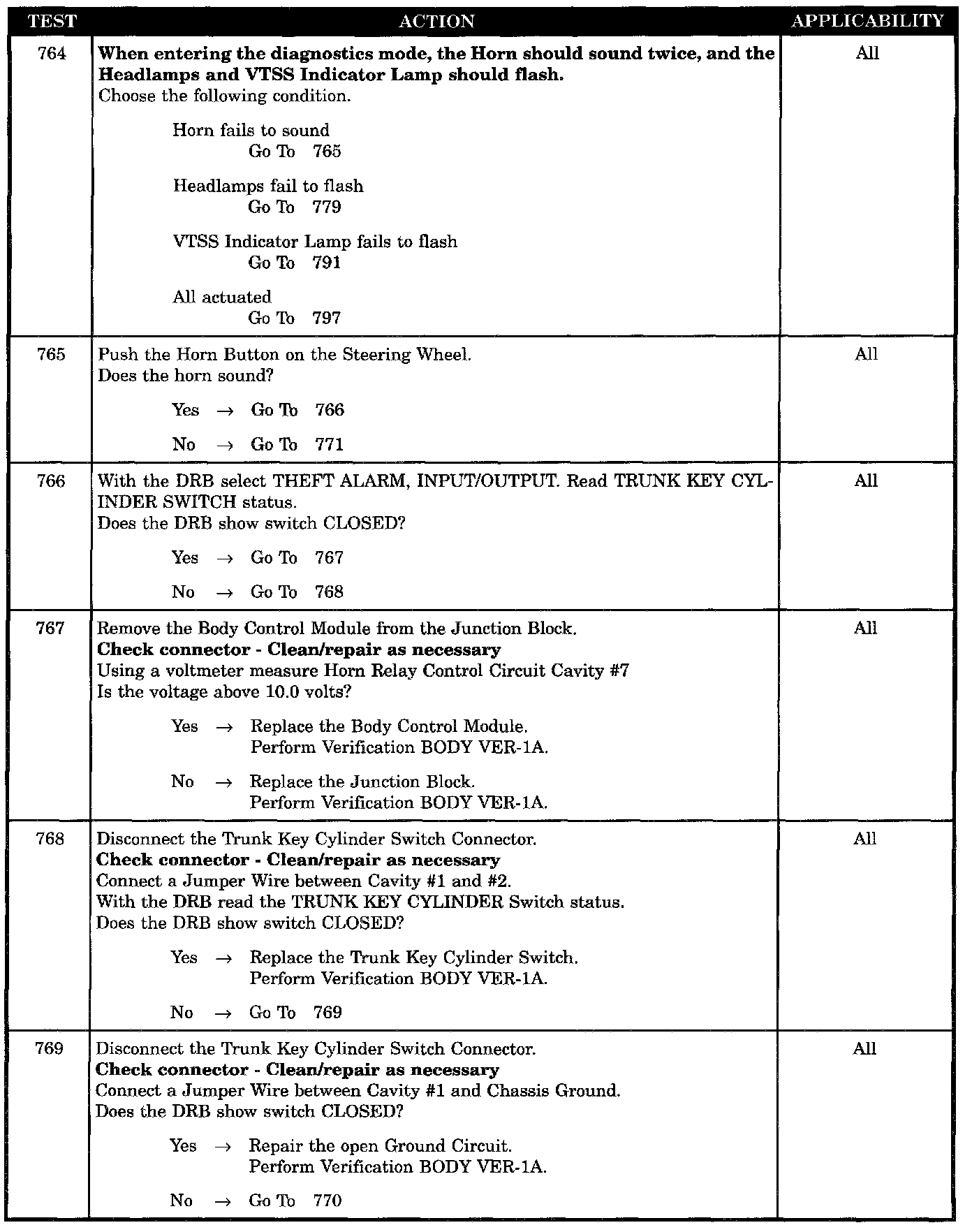

Test 764 - 769:

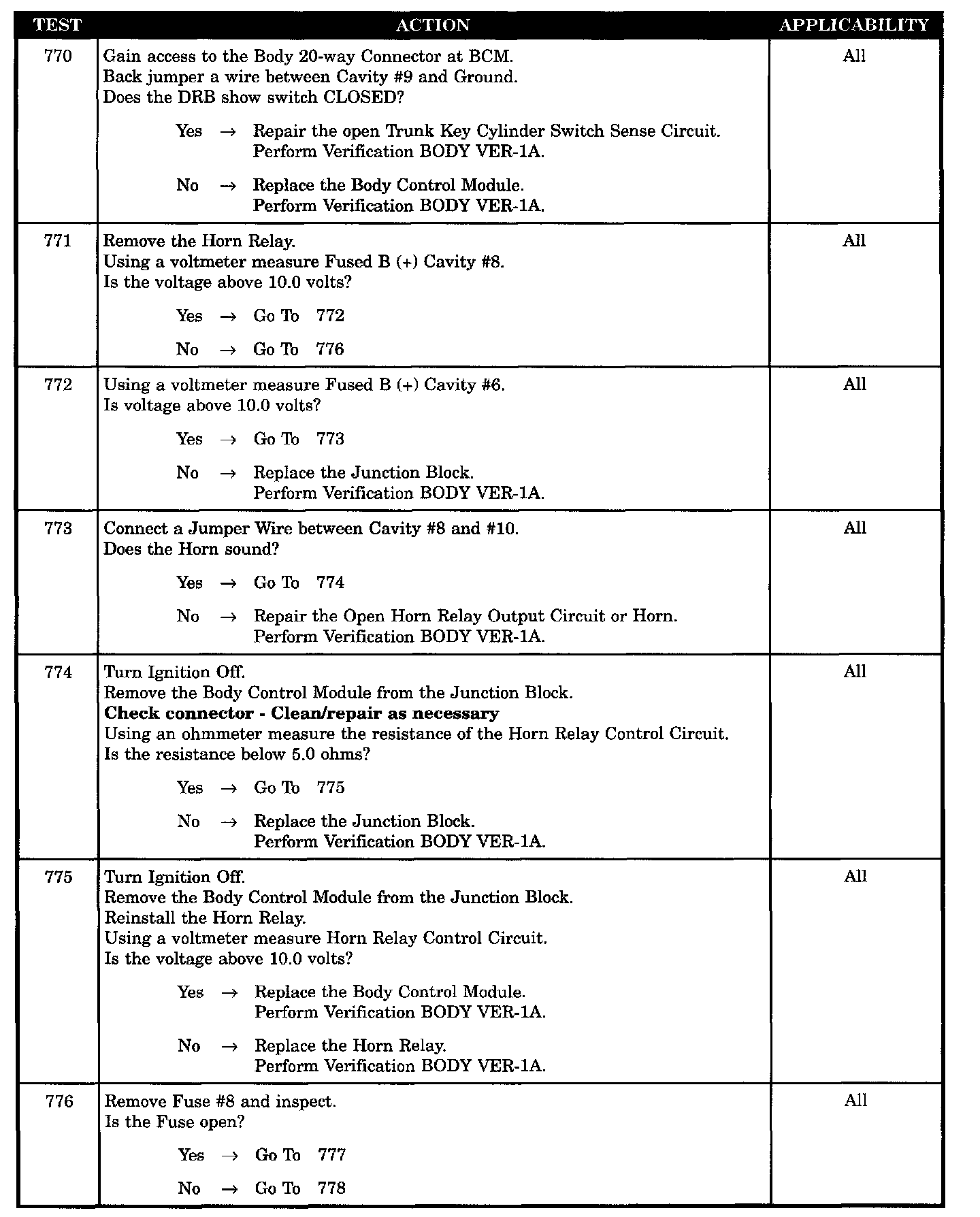

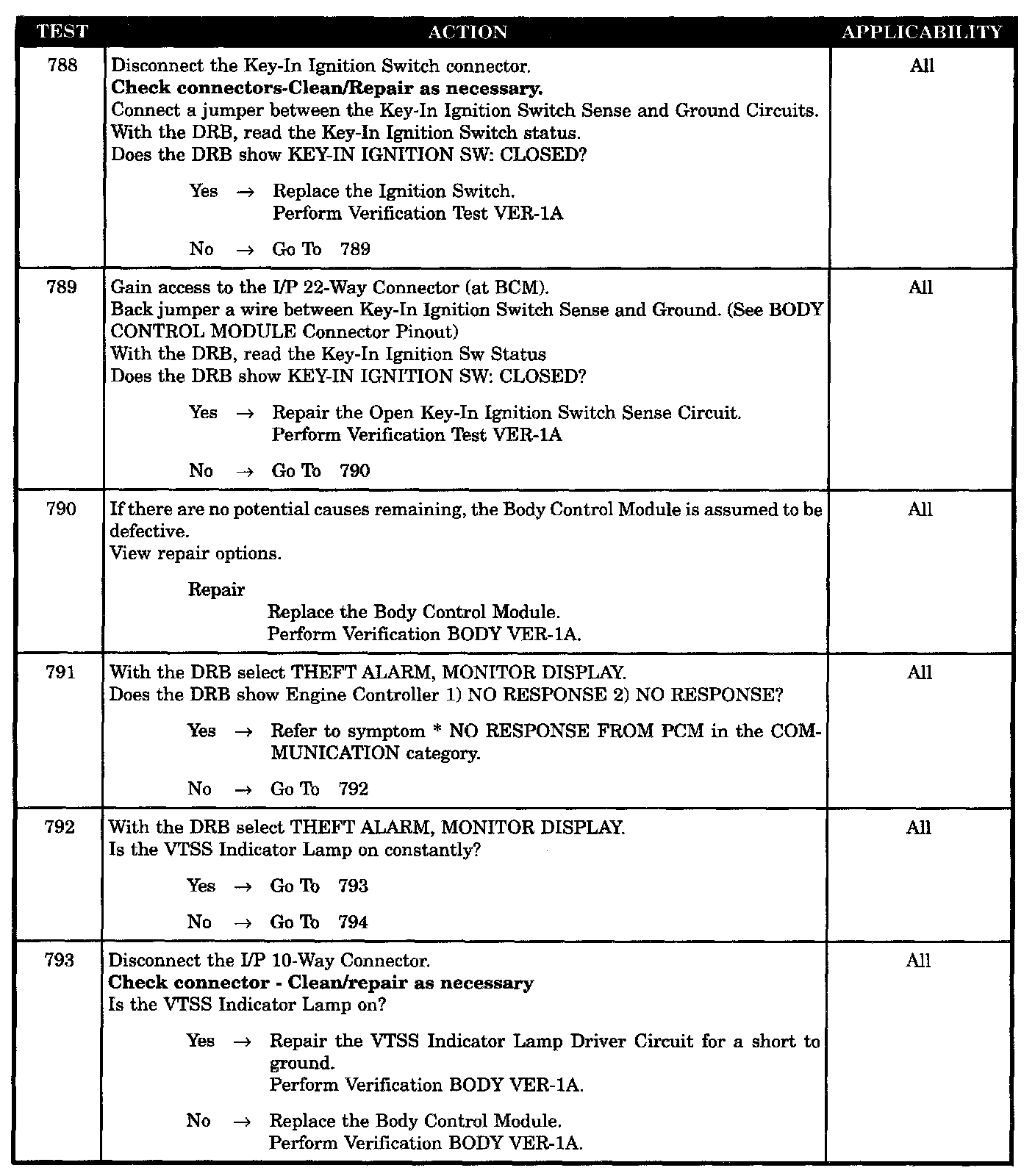

Test 770 - 776:

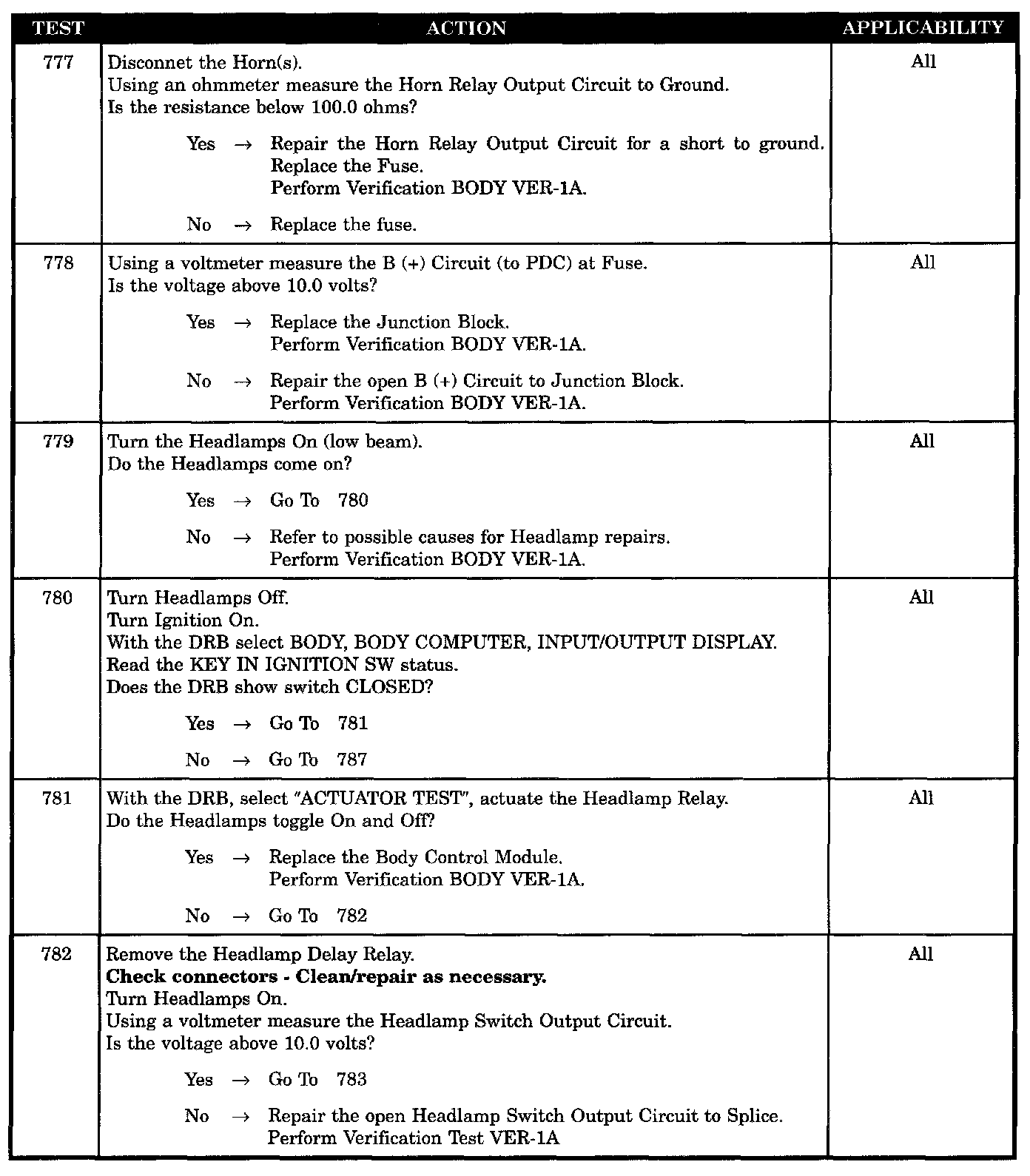

Test 777 - 782:

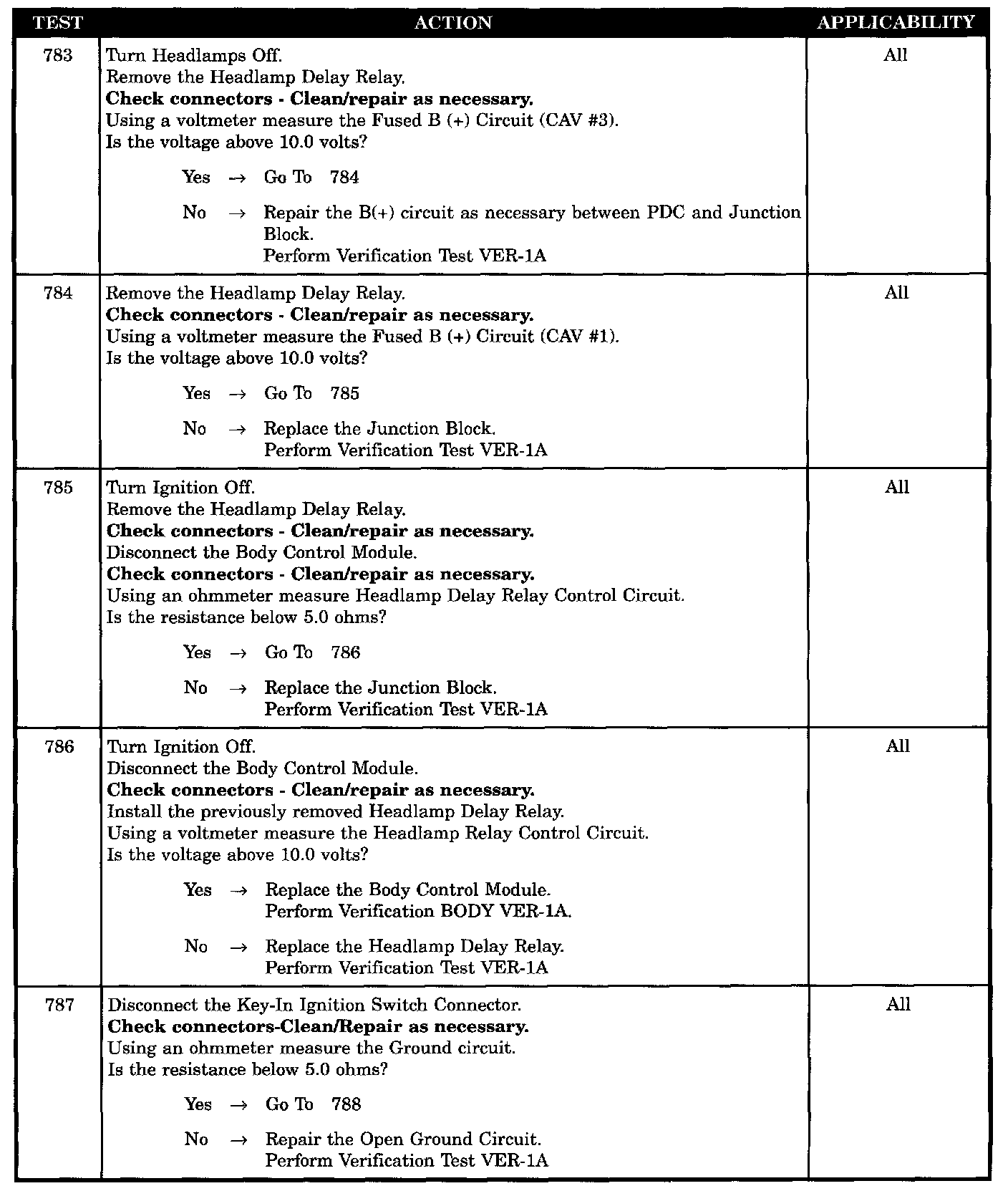

Test 783 - 787:

Test 788 - 793:

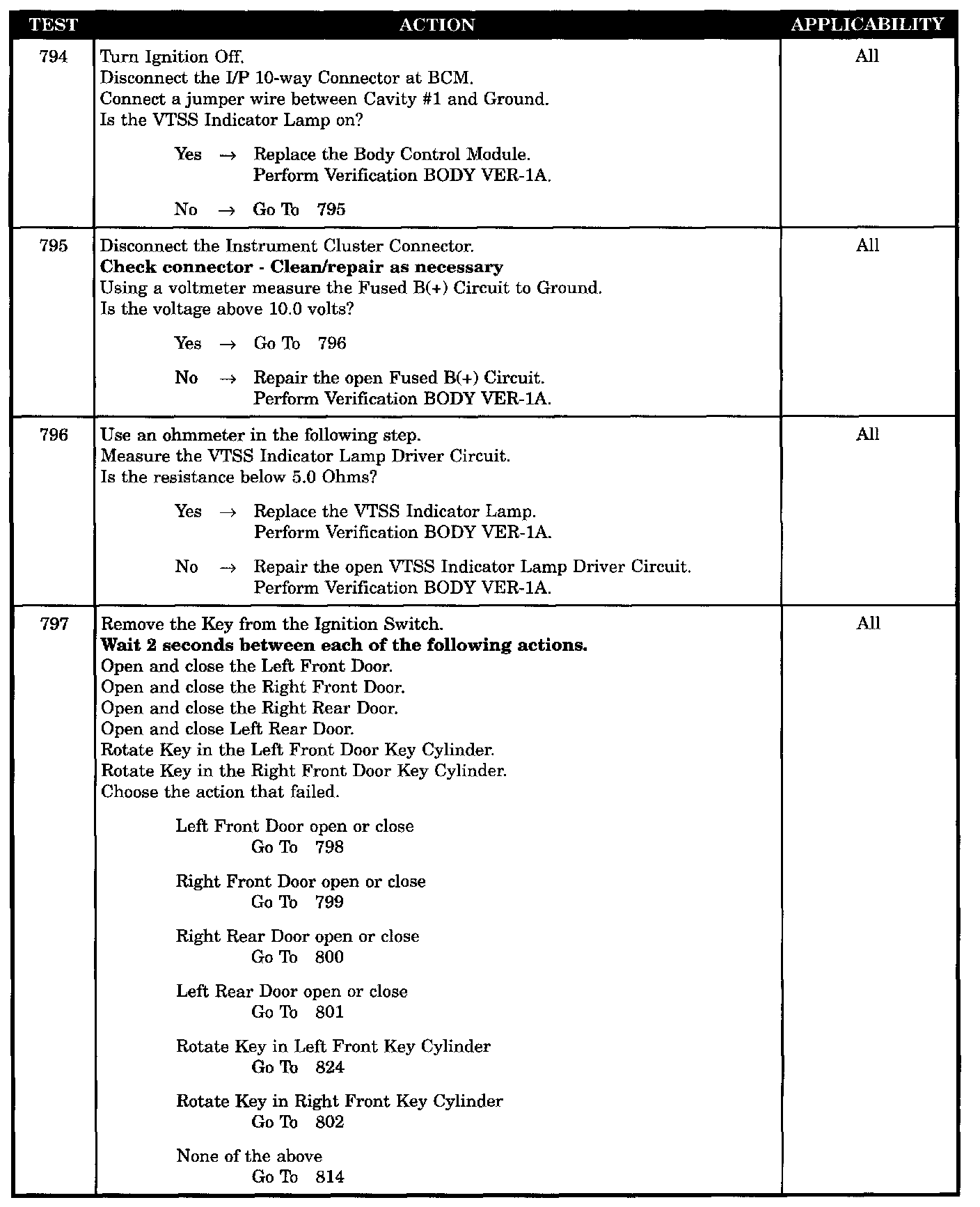

Test 794 - 797:

Test 798 - 803:

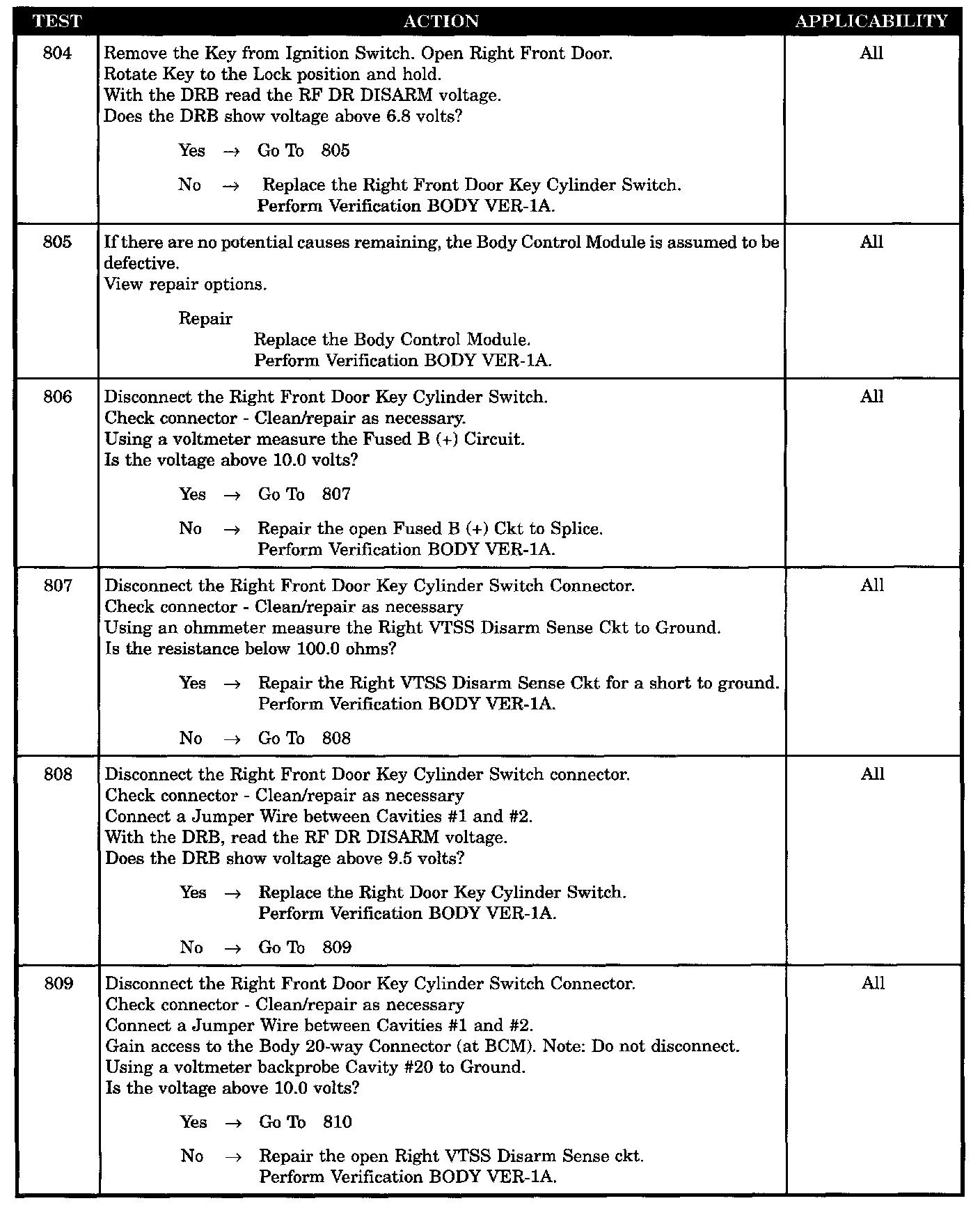

Test 804 - 809:

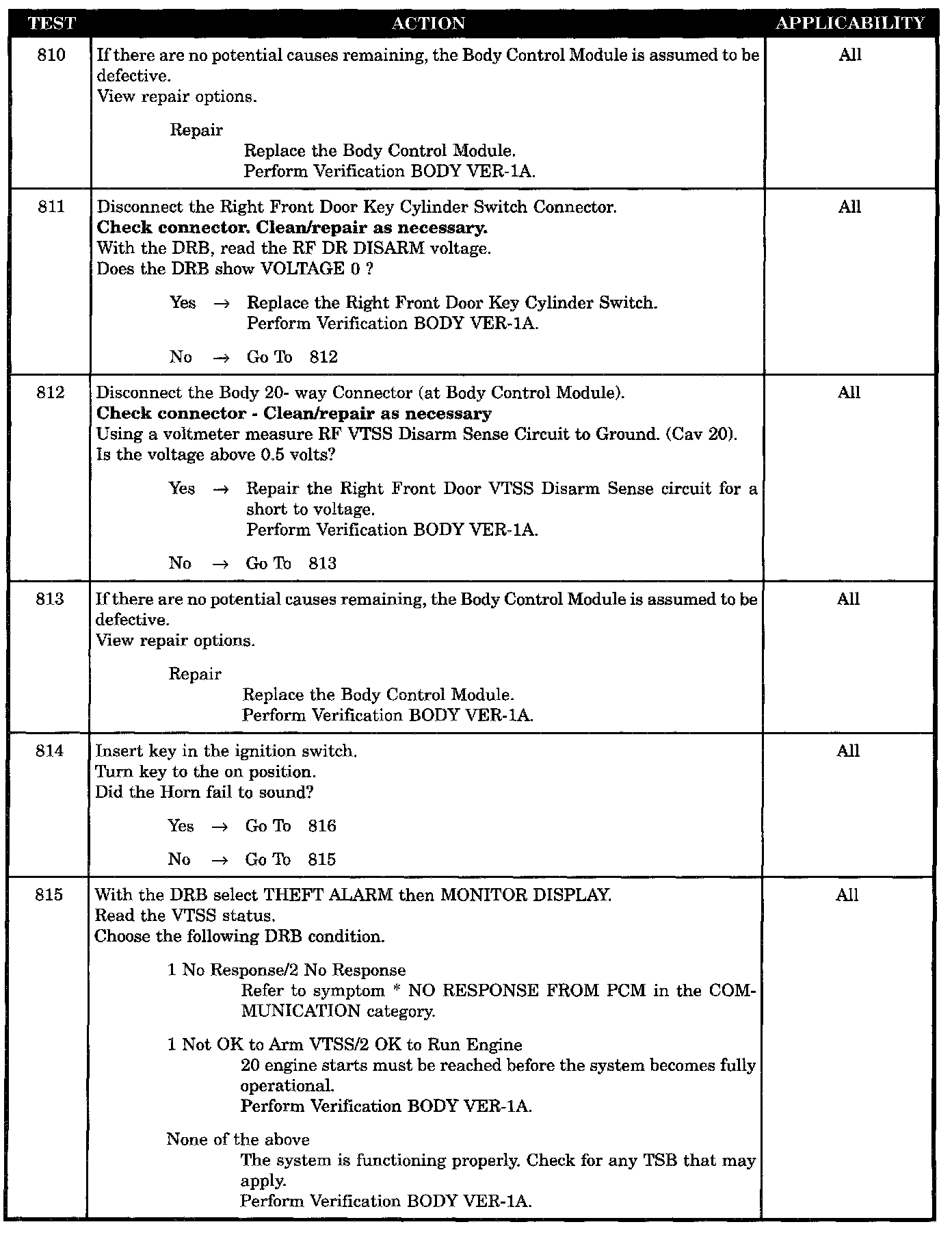

Test 810 - 815:

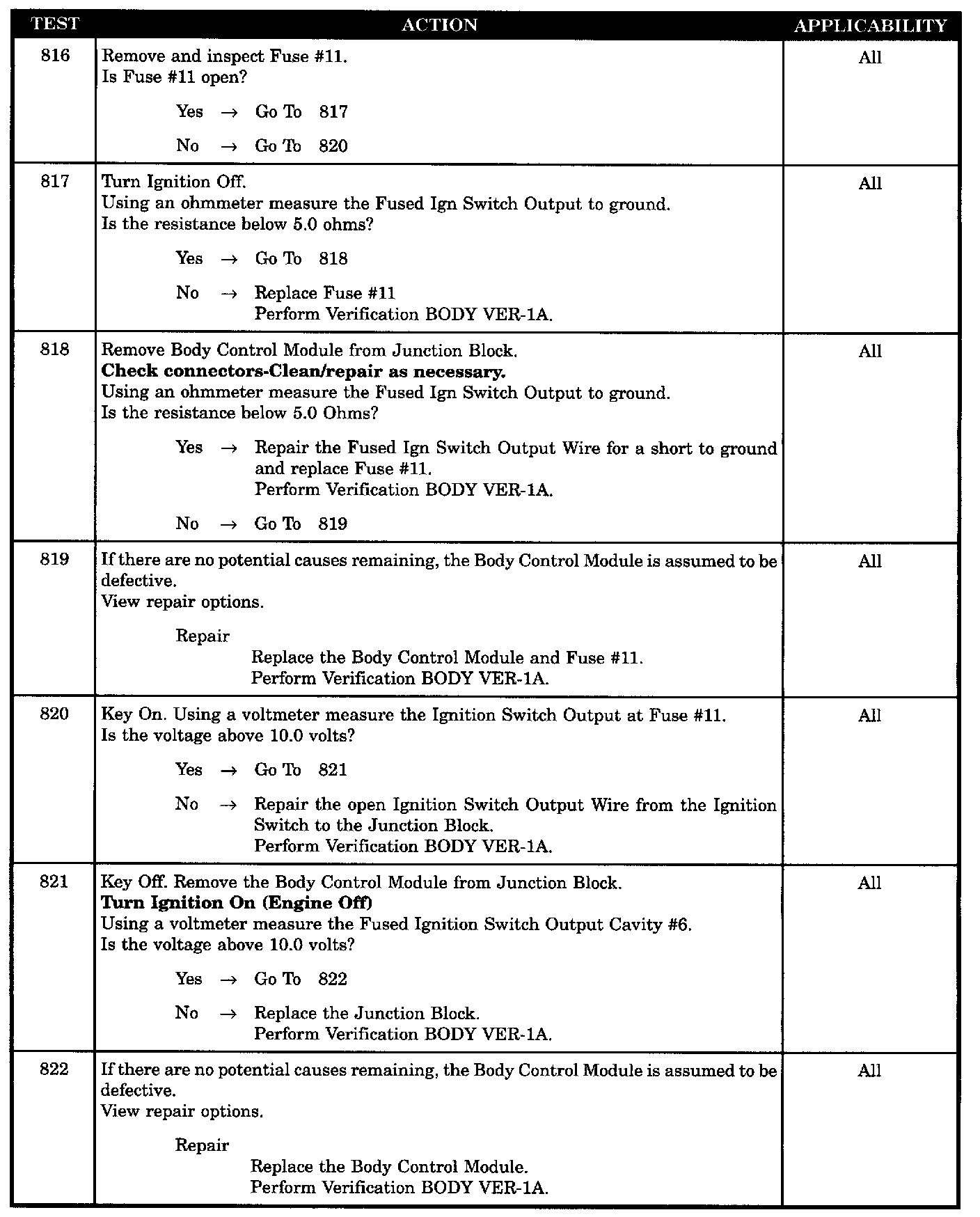

Test 816 - 822:

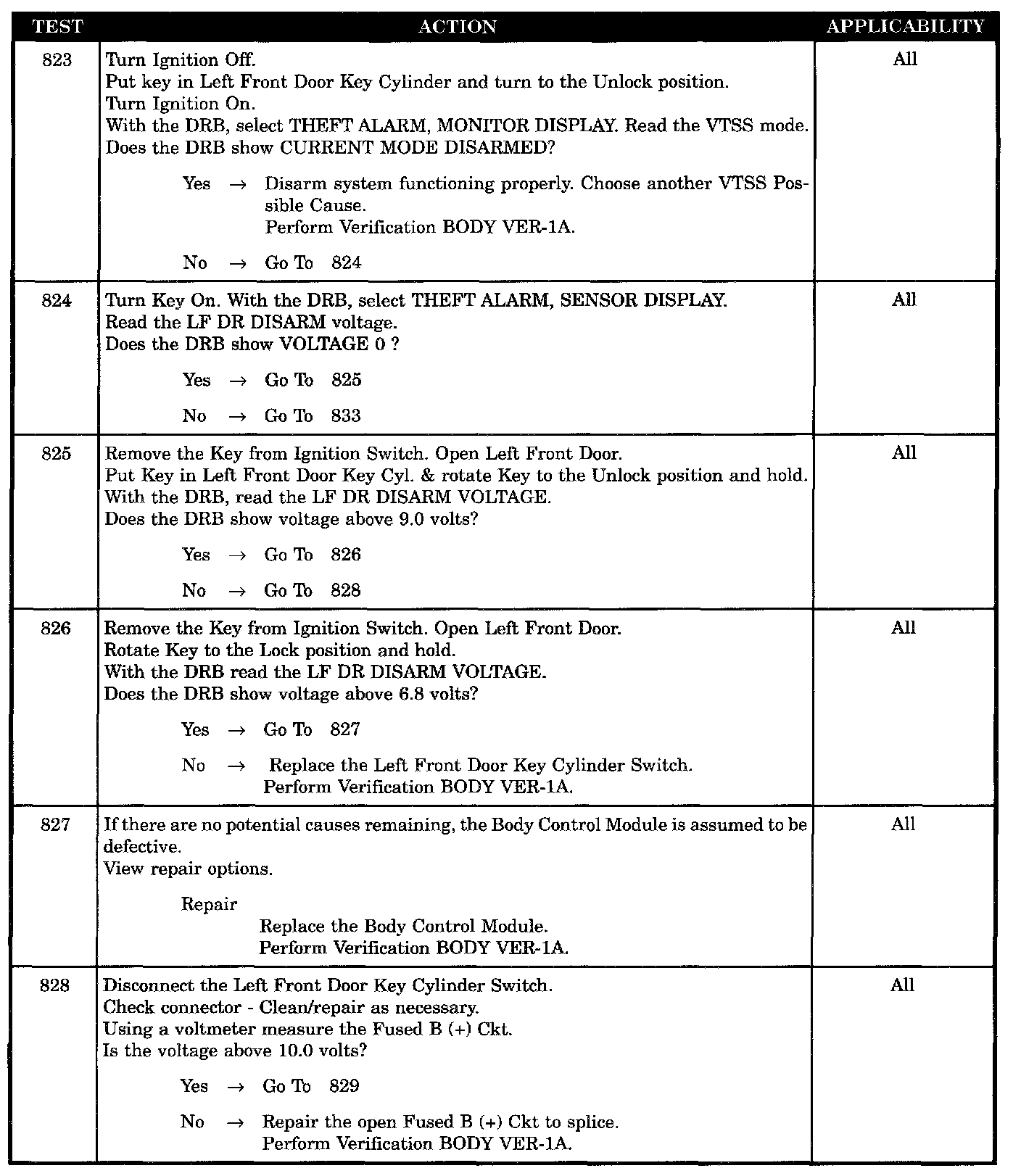

Test 823 - 828:

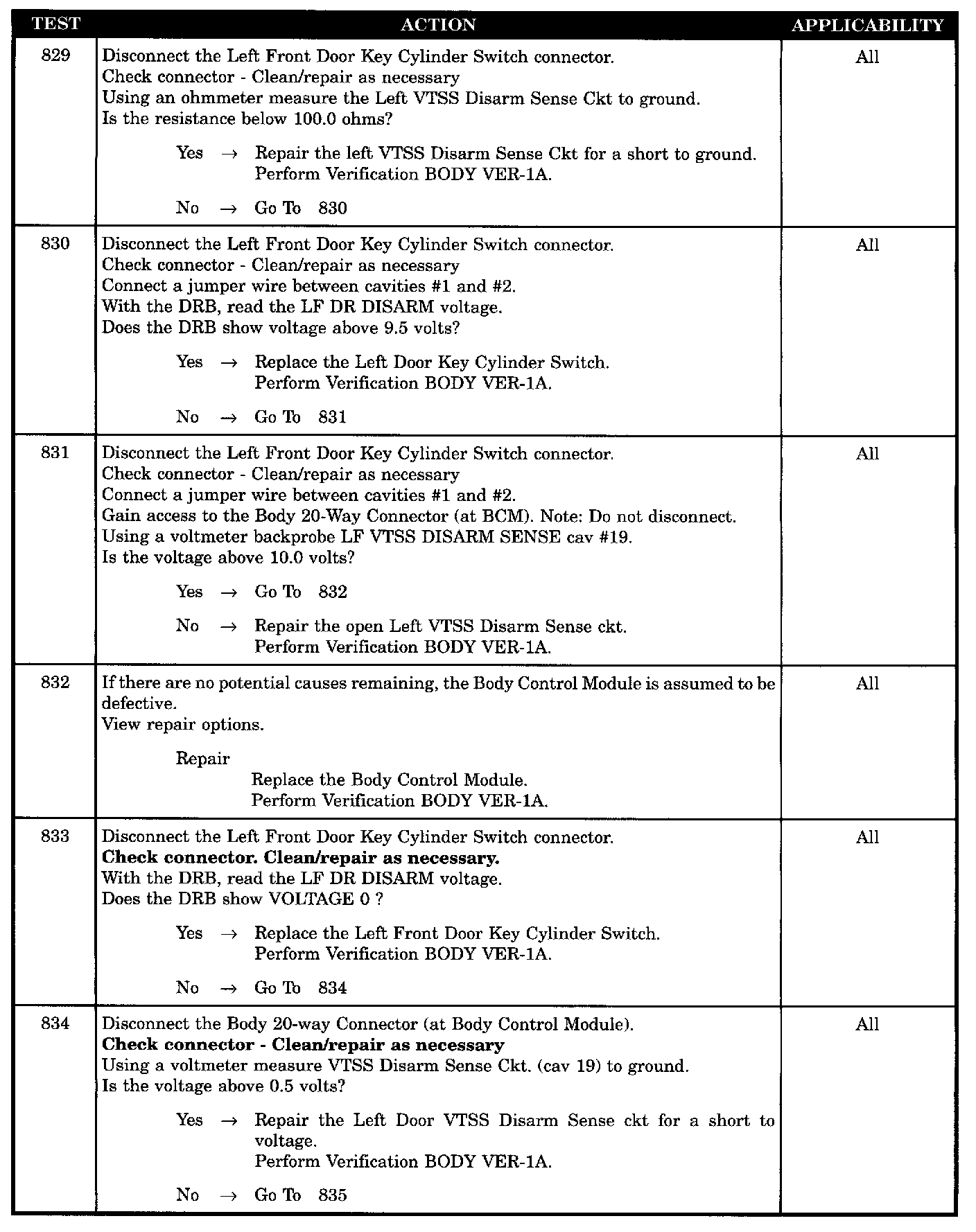

Test 829 - 834:

Test 835:

SYMPTOM
* VTSS SYSTEM PROBLEMS

POSSIBLE CAUSES
- VTSS will not disarm
- Key-in ignition switch sense circuit open
- Key-in ignition switch sense ground circuit open
- Ignition switch open
- Headlamp B(+) circuit open
- Headlamp delay relay coil open
- Headlamp SW output circuit
- Junction block - fused B(+) open
- Junction block - headlamp delay relay control open
- Headlamps come on test
- Horn relay control circuit below 10 v
- Horn relay control circuit open
- Horn relay control circuit relay defective
- BCM/VTSS disarm sense above 10.0 volts
- BCCM/VTSS disarm sense circuit defective
- BCM - headlamp toggle function
- BCM - key-in sense failure
- BCM VTSS indicator lamp driver inoperative
- BCM/ fuse #11 defective
- BCM/voltage above 10 volts at cavity #6
- BCM/LF disarm voltage above 6.8 volts
- BCM/RF disarm voltage above 6.8 volts
- BCM/RF DR VTSS disarm circuit defective
- BCM/RF DR VTSS disarm sense above 10.0 volts
- 20 engine starts not logged
- B(+) circuit open
- BCM fused IGN SW output greater than 5 ohms to GND
- Fuse defective
- Fused B (+) CKT horn relay cavity #6 voltage low
- Horn relay output circuit open
- Horn relay output circuit shorted to ground
- IGN CKT BCM ignition switch to junction block open
- IGN CKT BCM voltage below 10V at cavity #6
- Ignition circuit BCM shorted to ground
- Left front door key cylinder switch open
- Left front door key cylinder switch shorted
- Left VTSS disarm sense CKT open
- LF door key cylinder switch lock below 6.8 volts
- RF door key cylinder switch lock below 6.8 volts
- RF door VTSS fused B (+) circuit open
- RF DR VTSS disarm sense circuit shorted to ground
- Right front door key cylinder switch open
- Right front door key cylinder switch shorted
- Right VTSS disarm sense CKT open
- Trunk key CYL switch sense circuit inoperative
- Trunk key cylinder switch open
- Trunk key ground circuit open
- VTSS / Defective junction block
- VTSS / Inoperative BCM
- VTSS disarm sense circuit shorted to ground
- VTSS disarm sense circuit shorted to voltage
- VTSS disarm sense CKT RF DR shorted to voltage
- VTSS fused B (+) circuit open
- VTSS fused B(+) CKT no voltage at instrument cluster
- VTSS IND light driver CKT shorted to ground
- VTSS indicator light bad
- VTSS indicator light driver circuit open
- VTSS status disarmed
