Power Door Lock System
>>
Door Lock Inhibit Circuit Inoperative
Door Lock Inhibit Circuit Inoperative

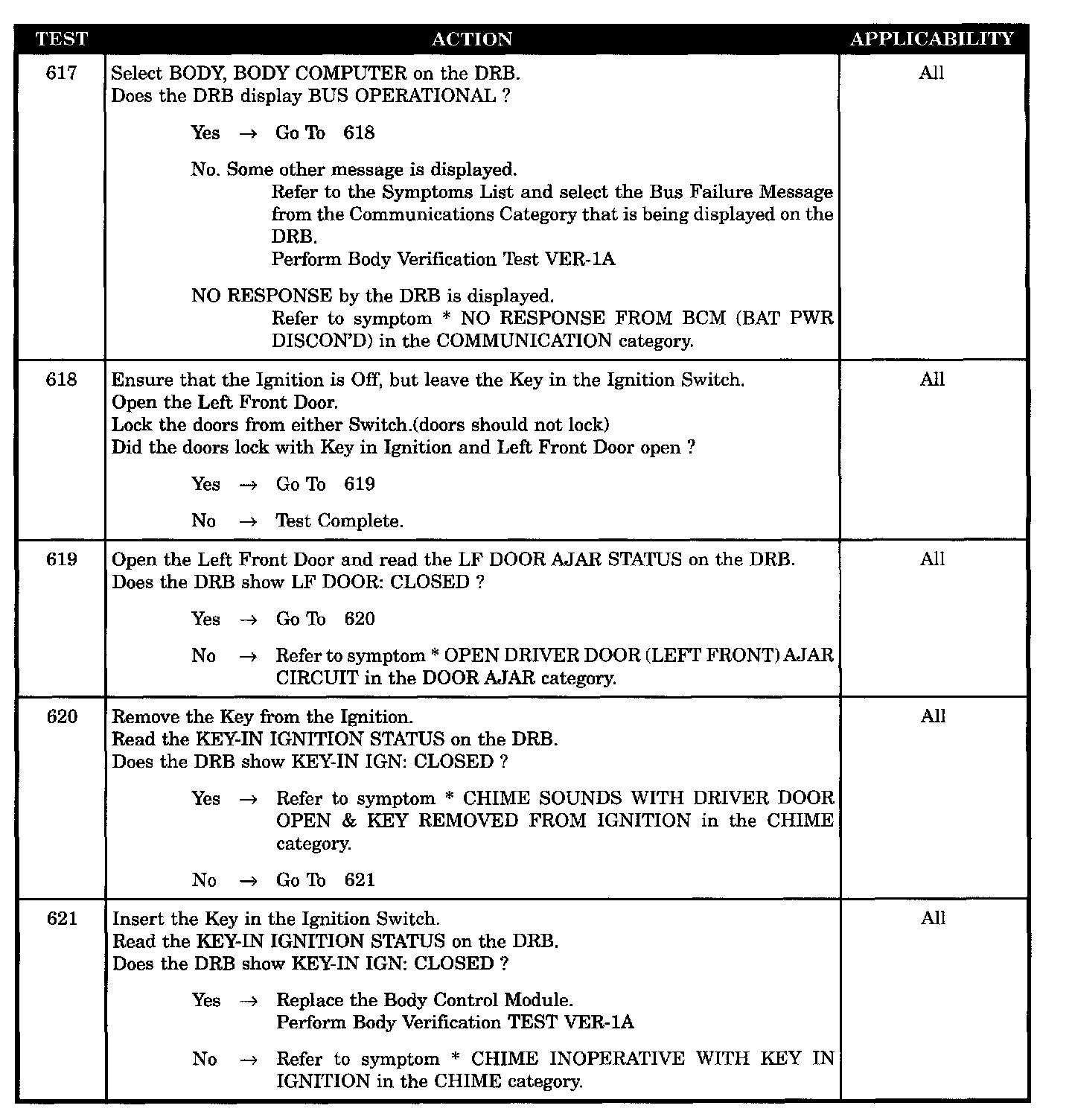

Test 617 - 621:
SYMPTOM
*
DOOR LOCK INHIBIT CIRCUIT INOPERATIVE
POSSIBLE CAUSES
-
Link to body communication bus inoperative
-
Key-in ignition switch open
