Automatic (Rolling) Door Locks Do Not Operate

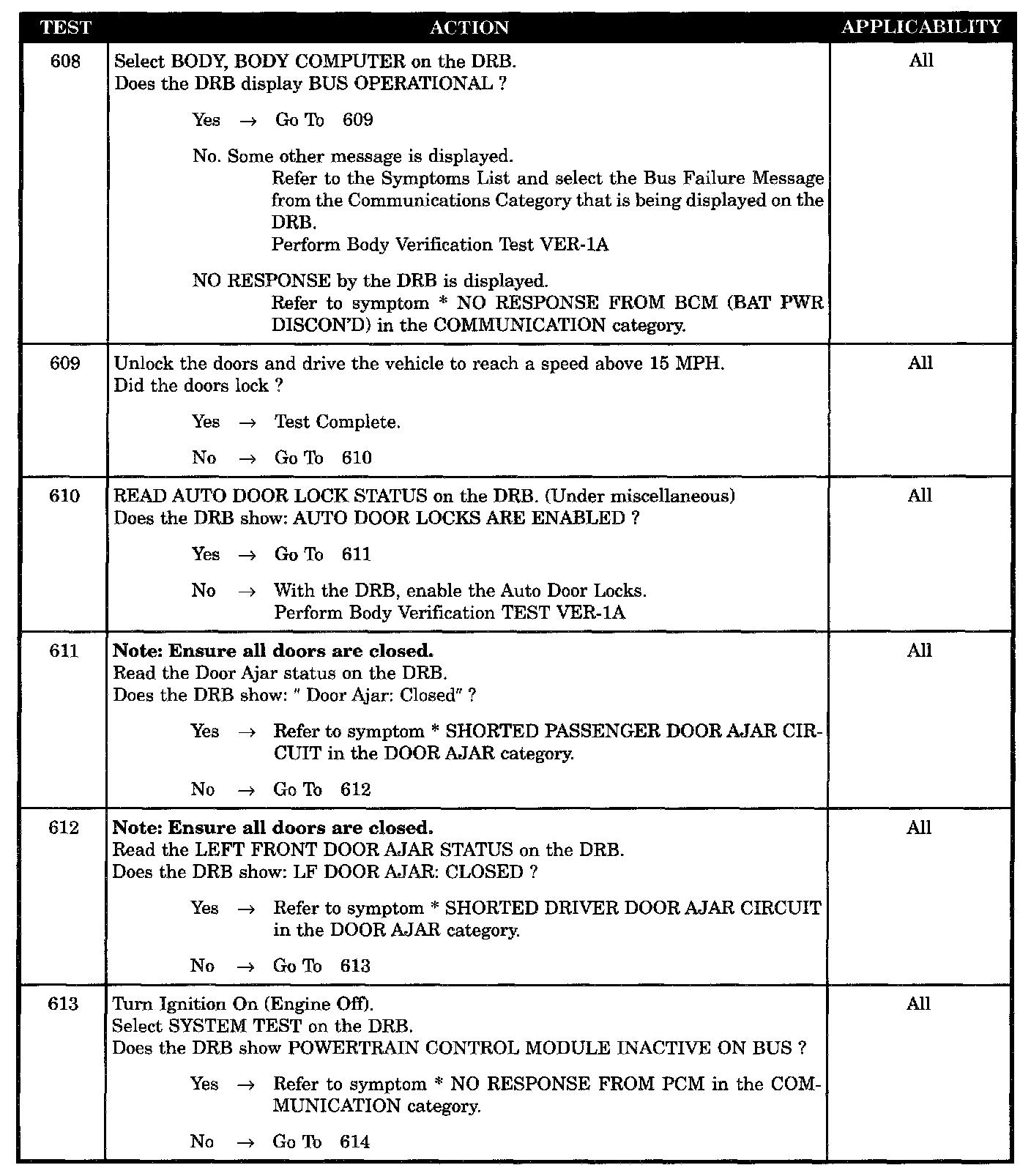

Test 608 - 613:

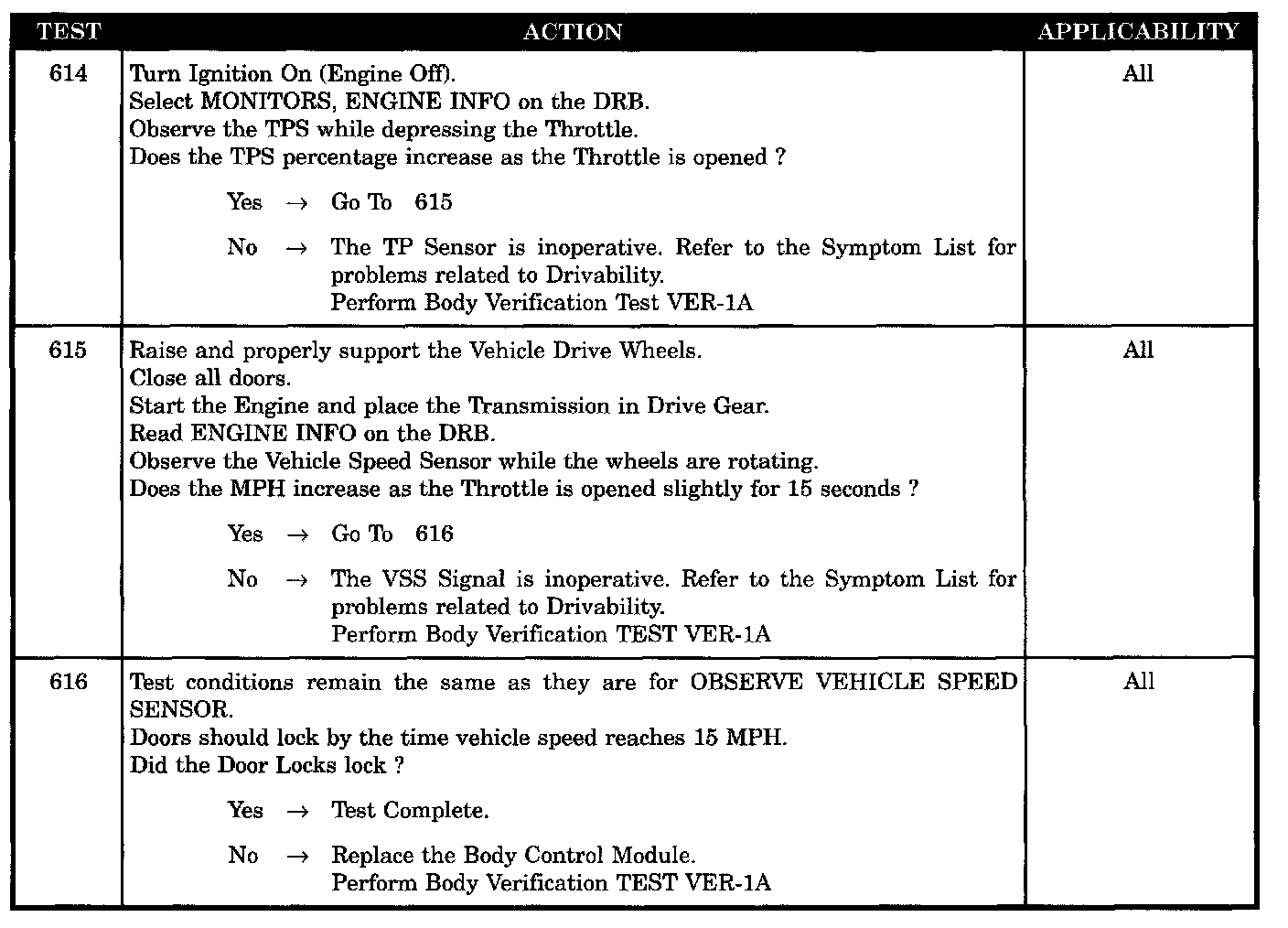

Test 614 - 616:

SYMPTOM
* AUTOMATIC (ROLLING) DOOR LOCKS DO NOT OPERATE

POSSIBLE CAUSES
- Link to body communication bus inoperative
- TPS % does not increase as throttle opens
- Auto door lock status incorrect
- Automatic door locks inoperative
- VSS signal to BCM inoperative
