Any or All Cluster Warning Lamps

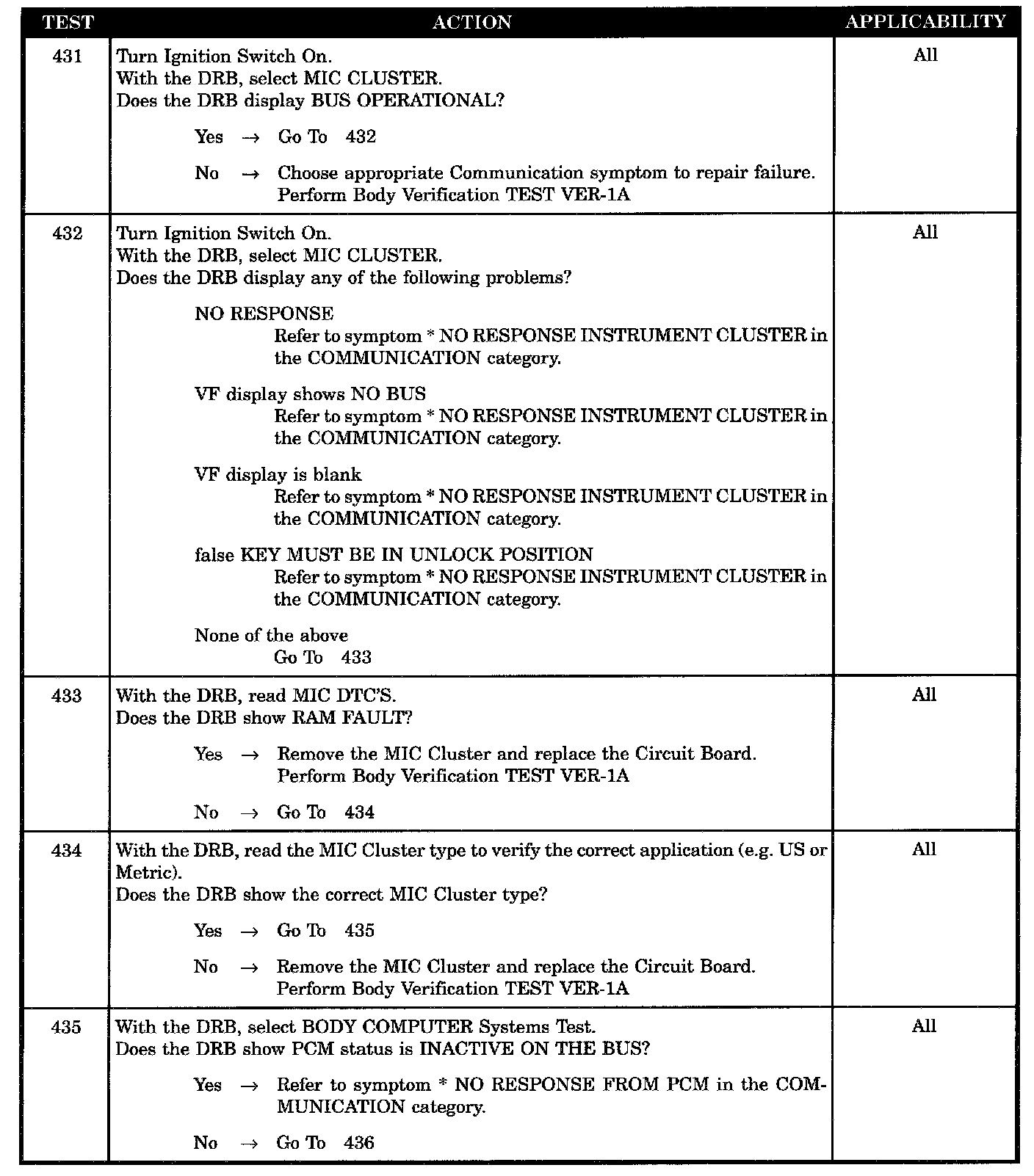

Test 431 - 435:

Test 436:

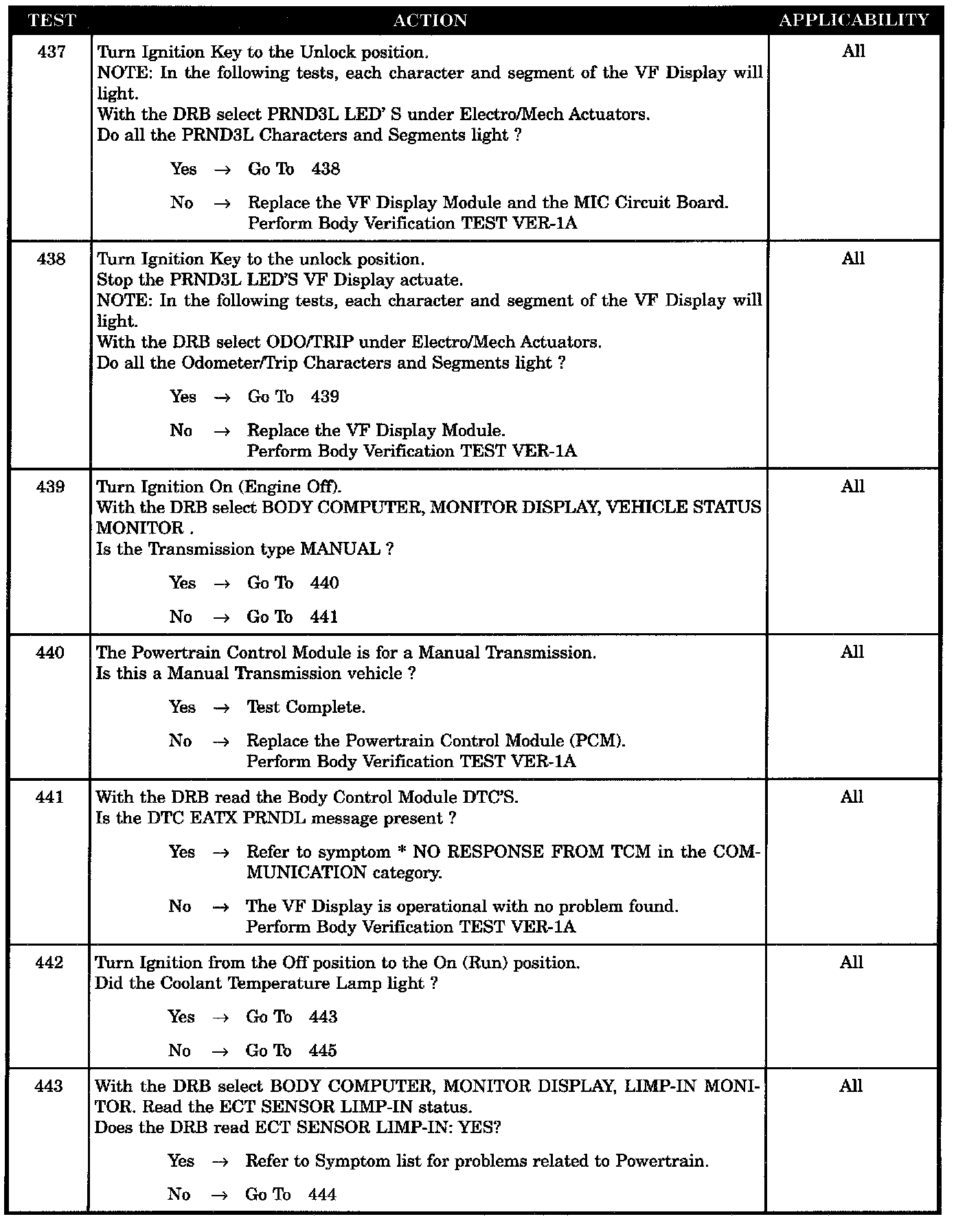

Test 437 - 443:

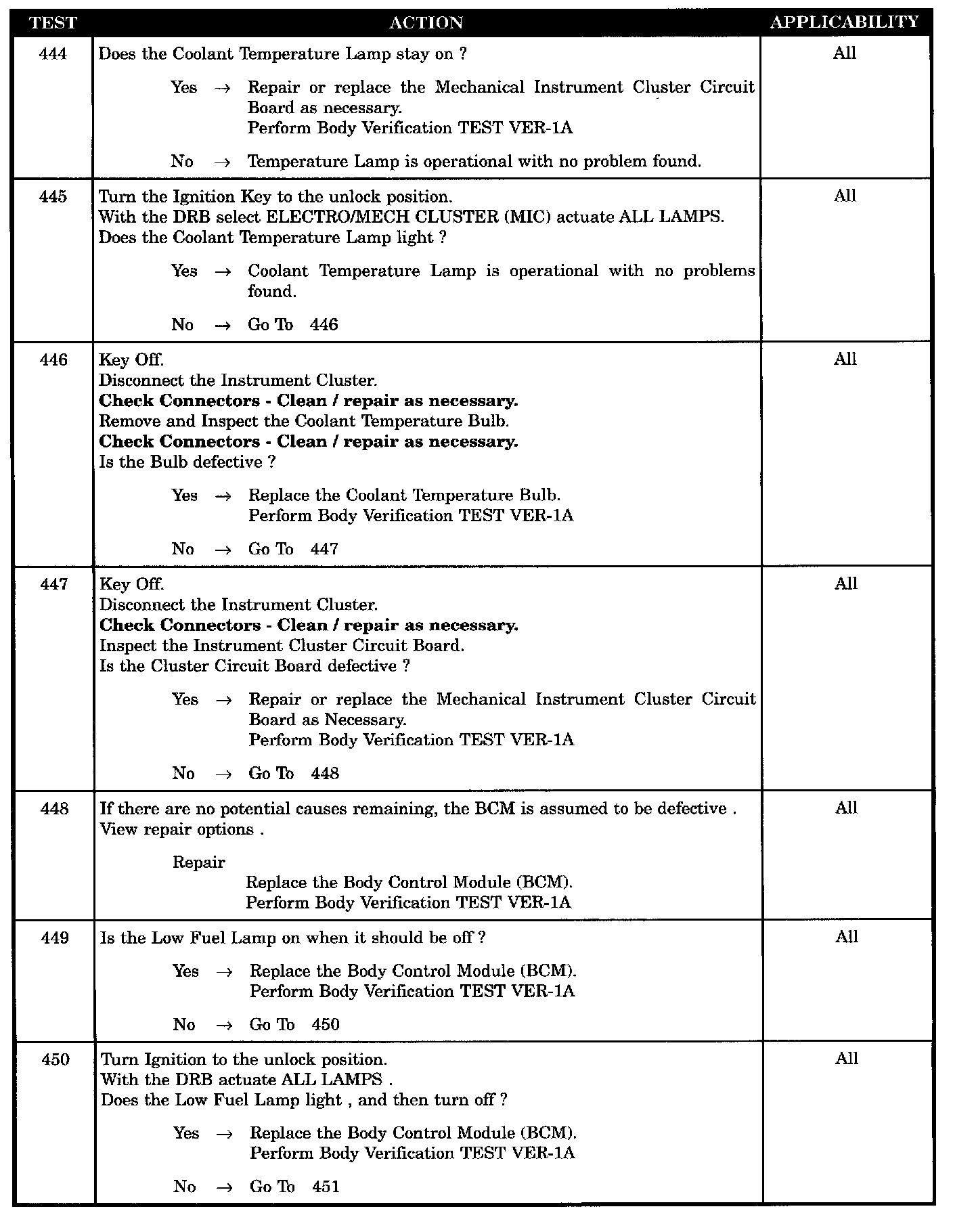

Test 444 - 450:

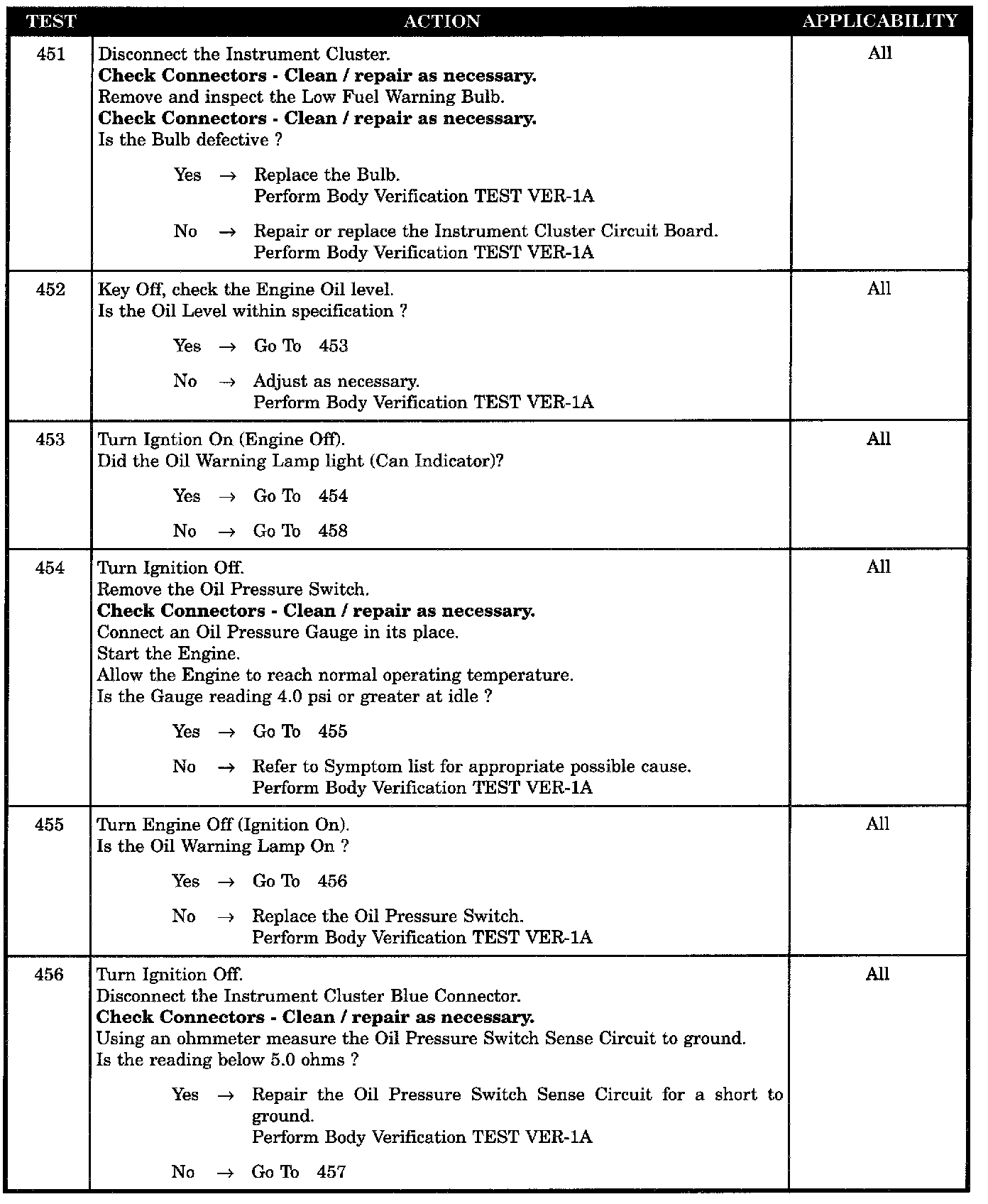

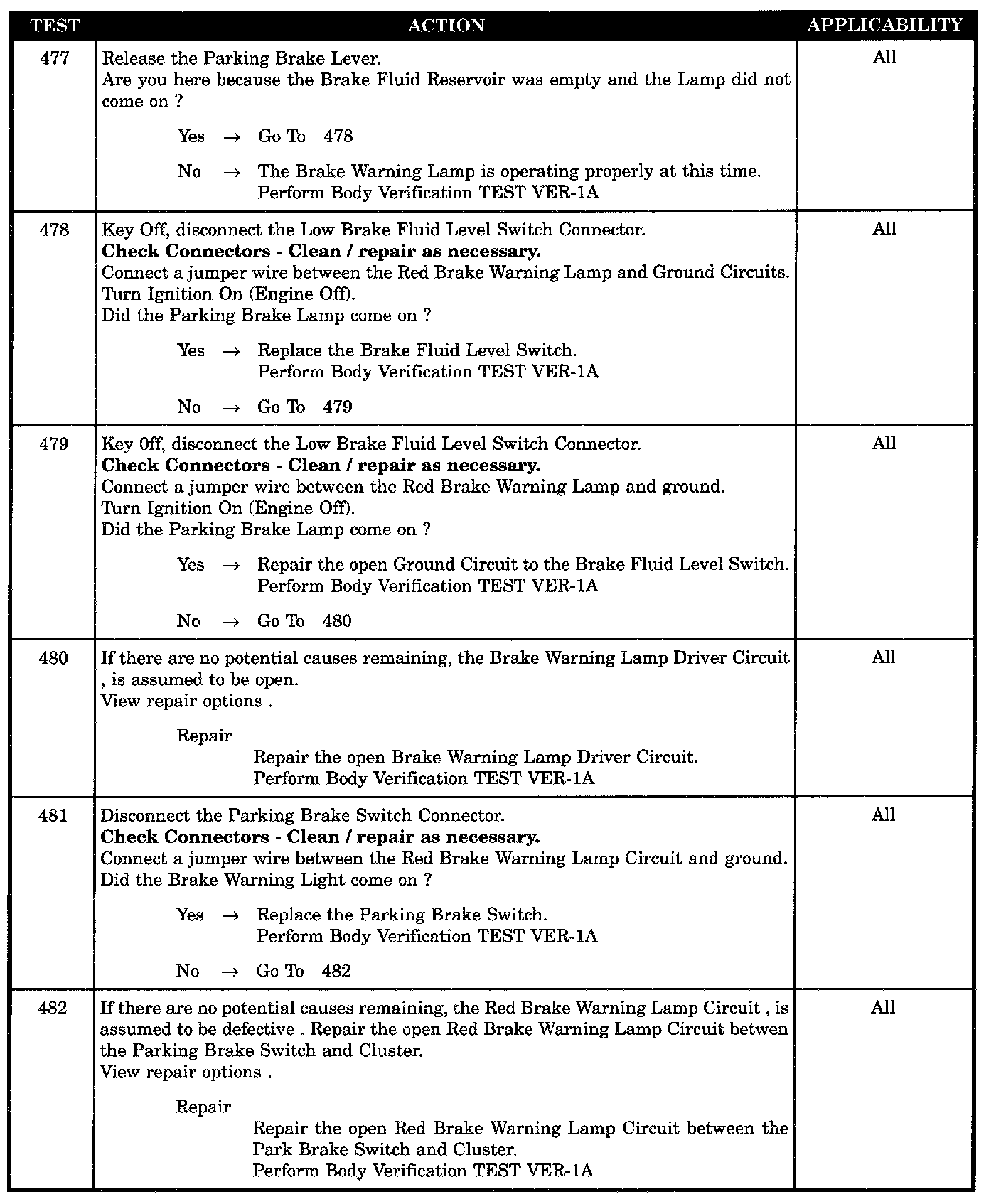

Test 451 - 456:

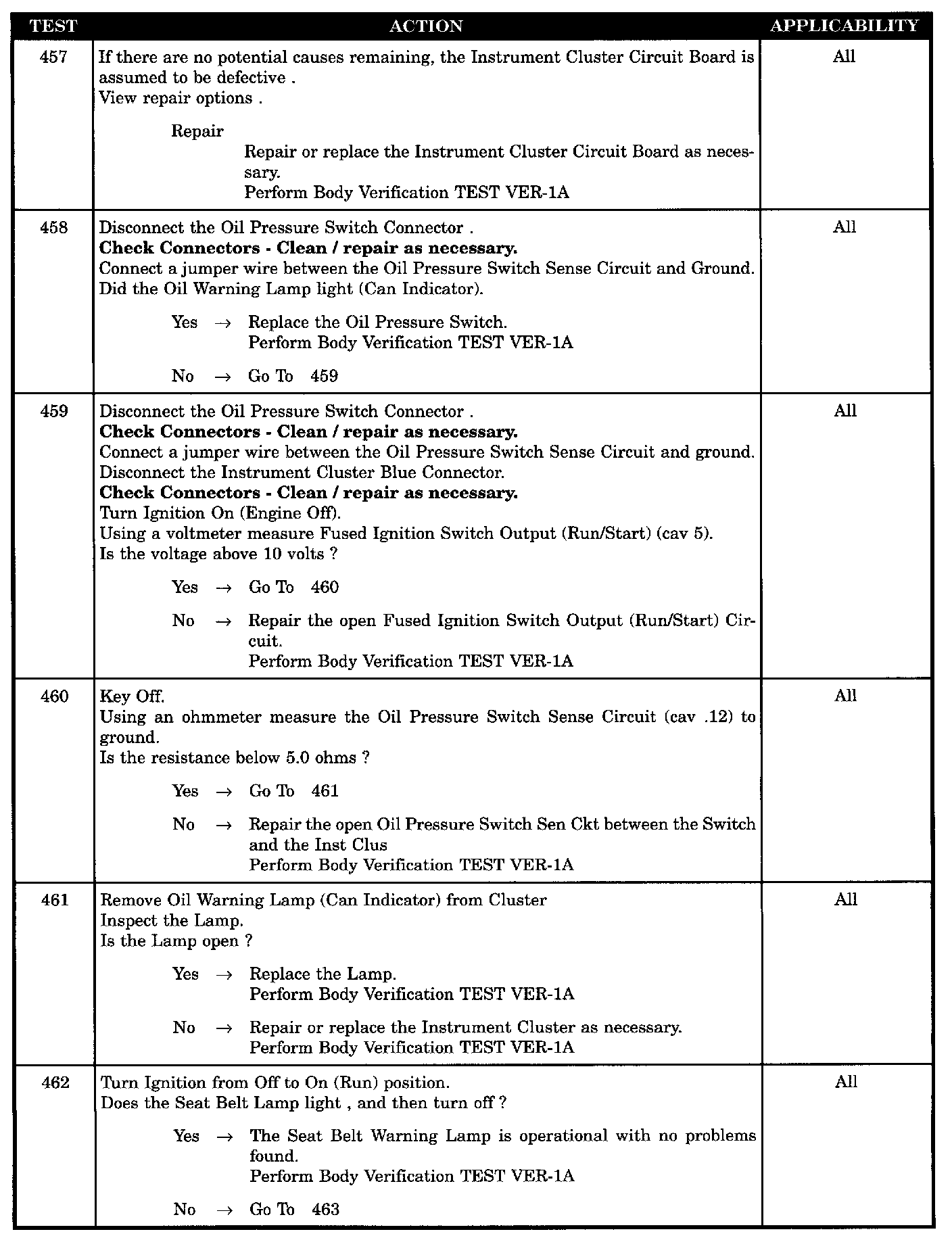

Test 457 - 462:

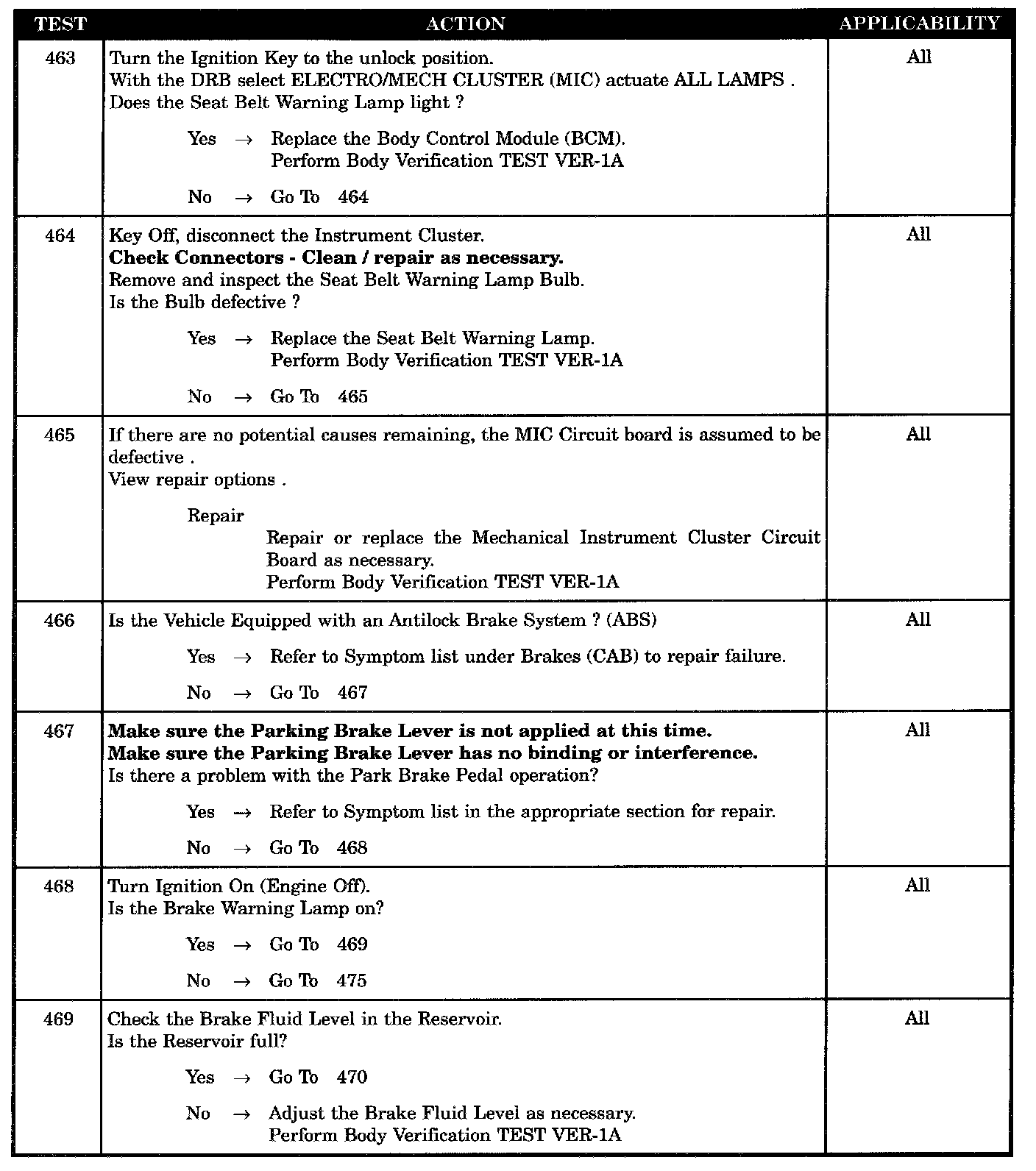

Test 463 - 469:

Test 470 - 476:

Test 477 - 482:

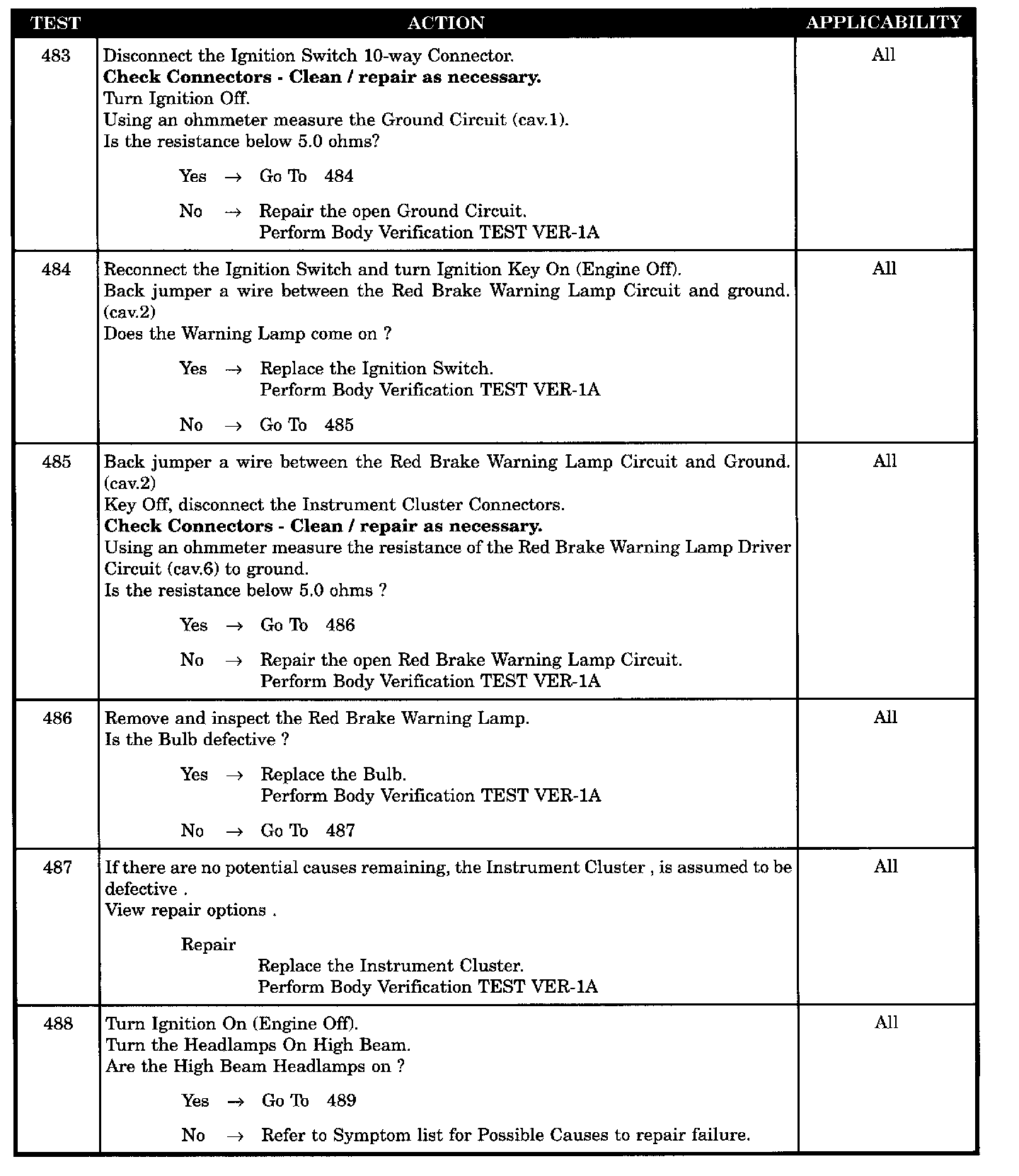

Test 483 - 488:

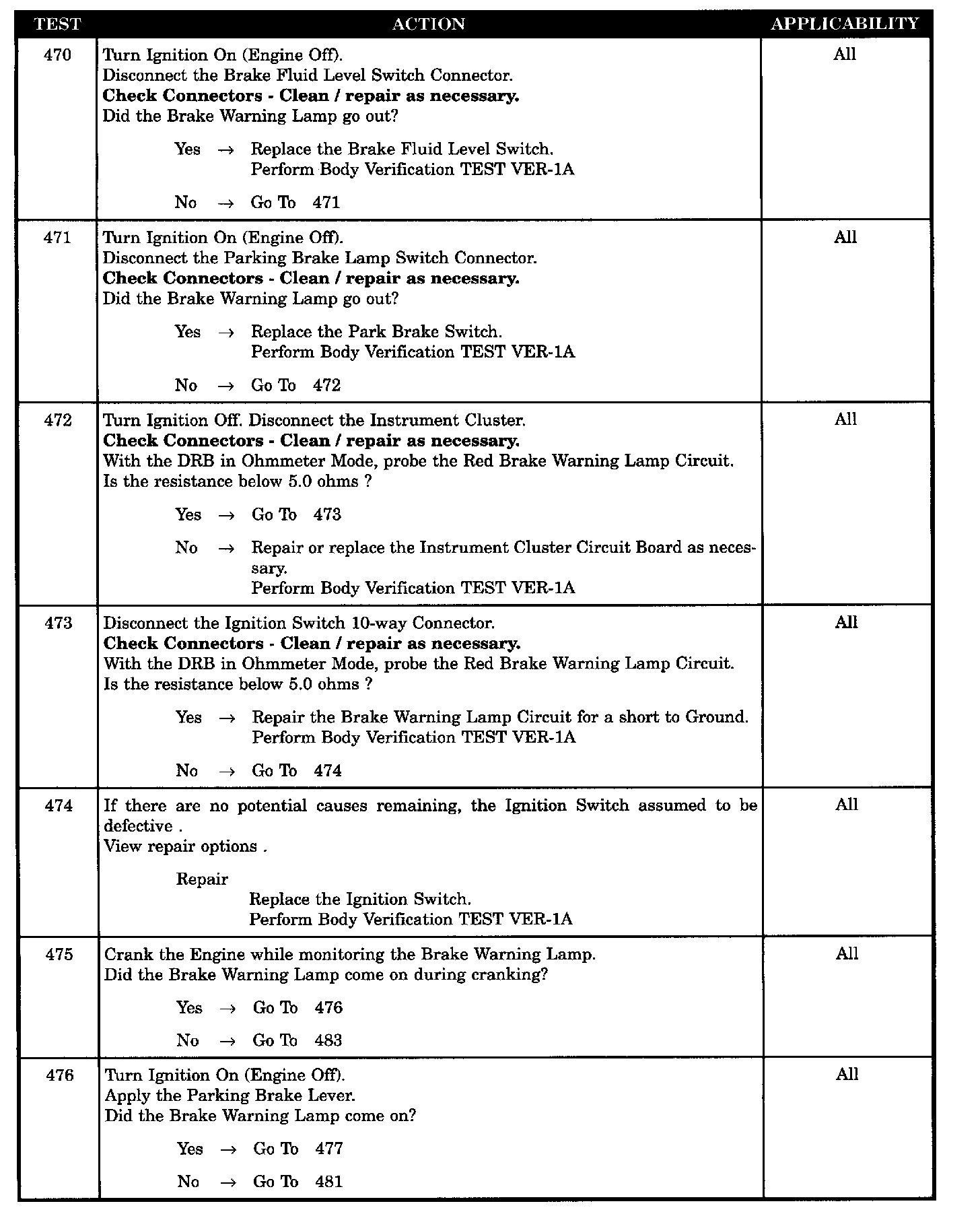

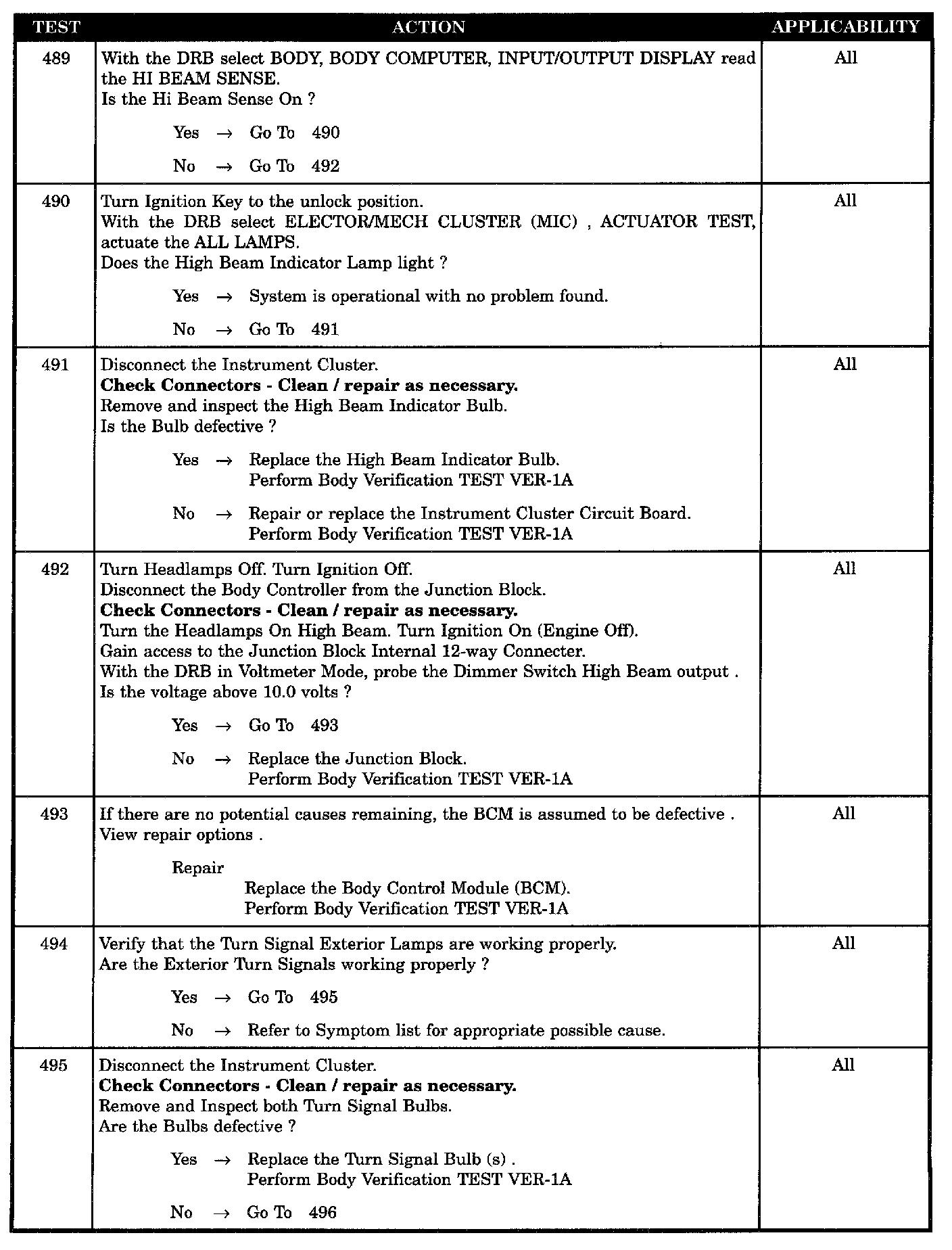

Test 489 - 495:

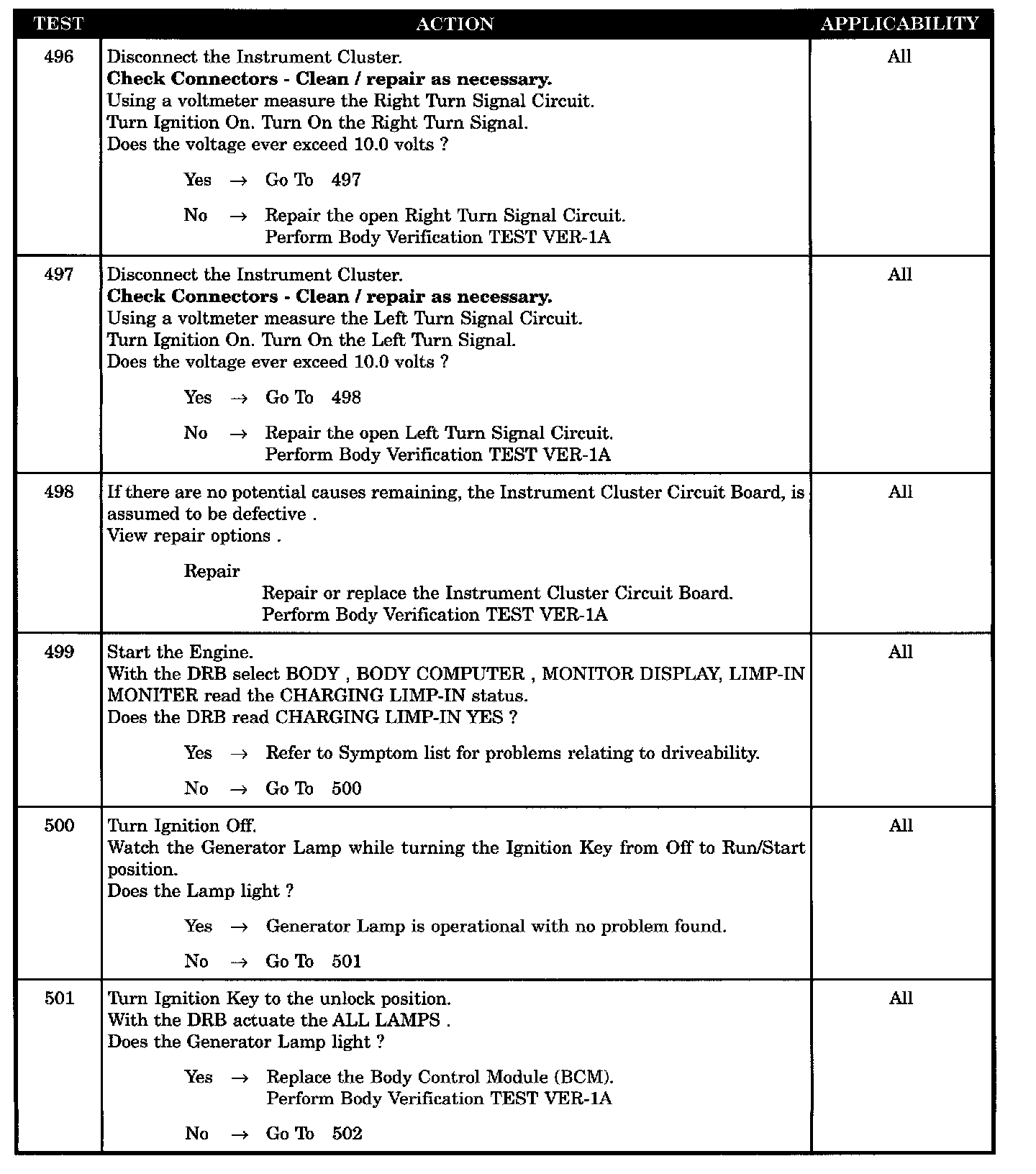

Test 496 - 501:

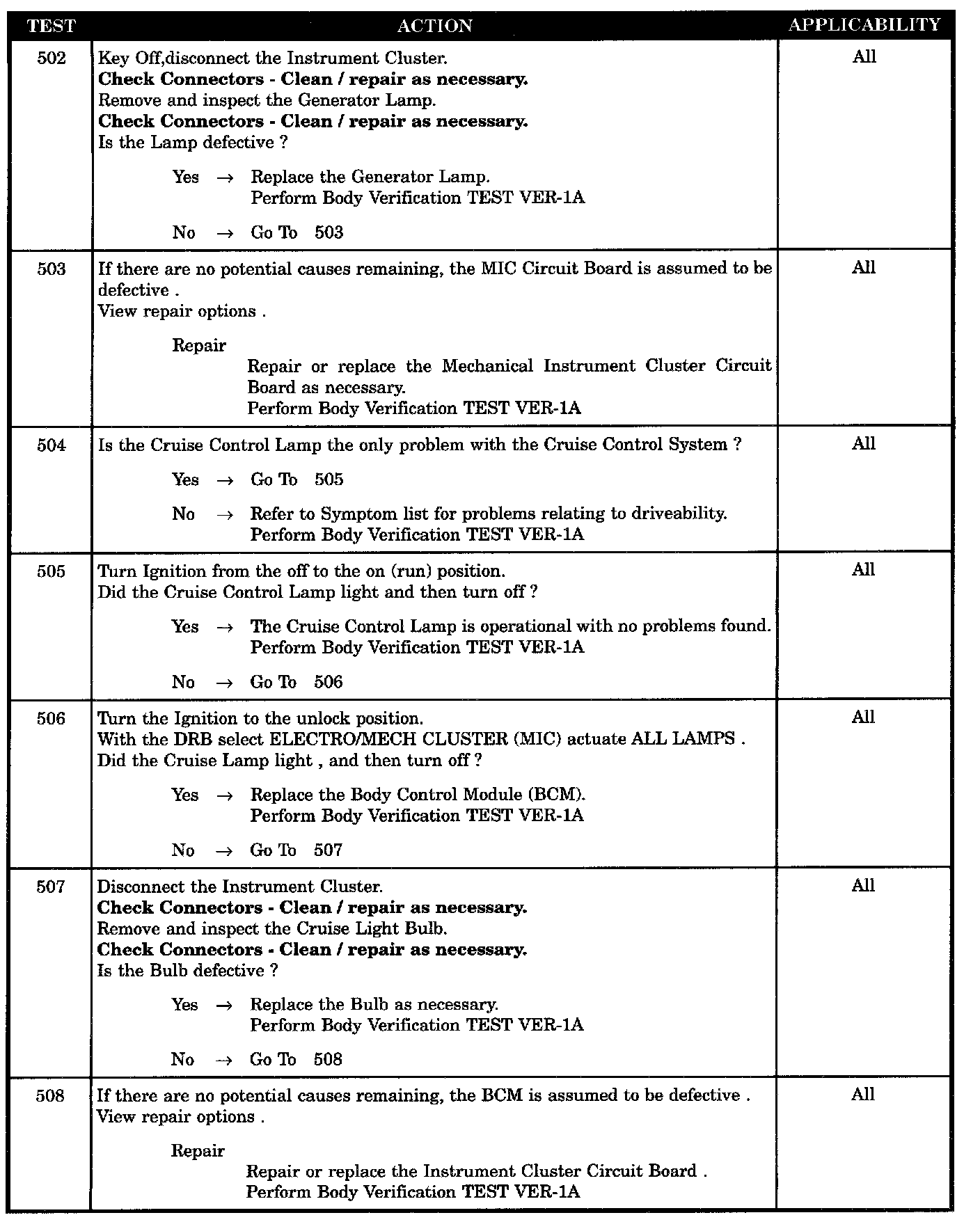

Test 502 - 508:

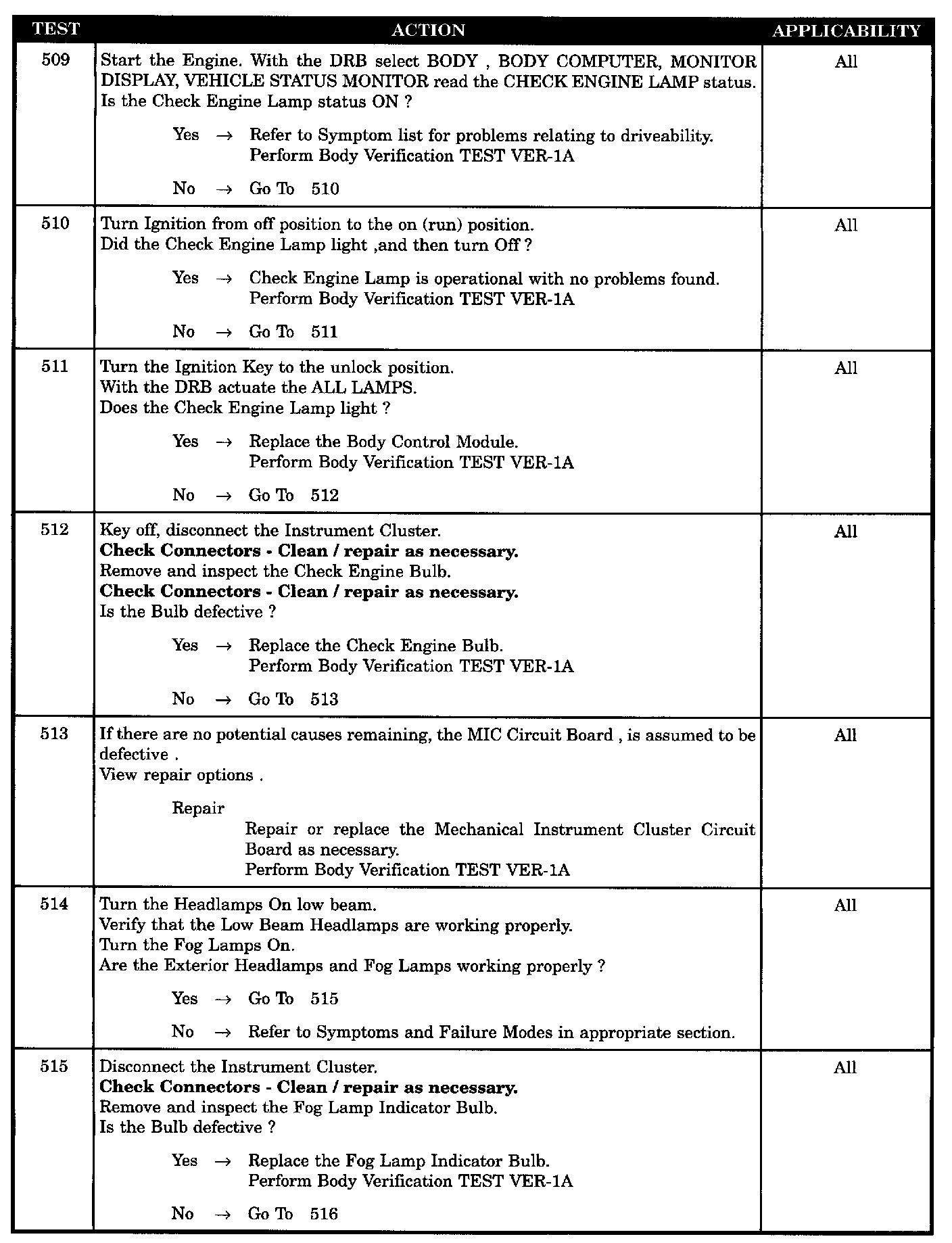

Test 509 - 515:

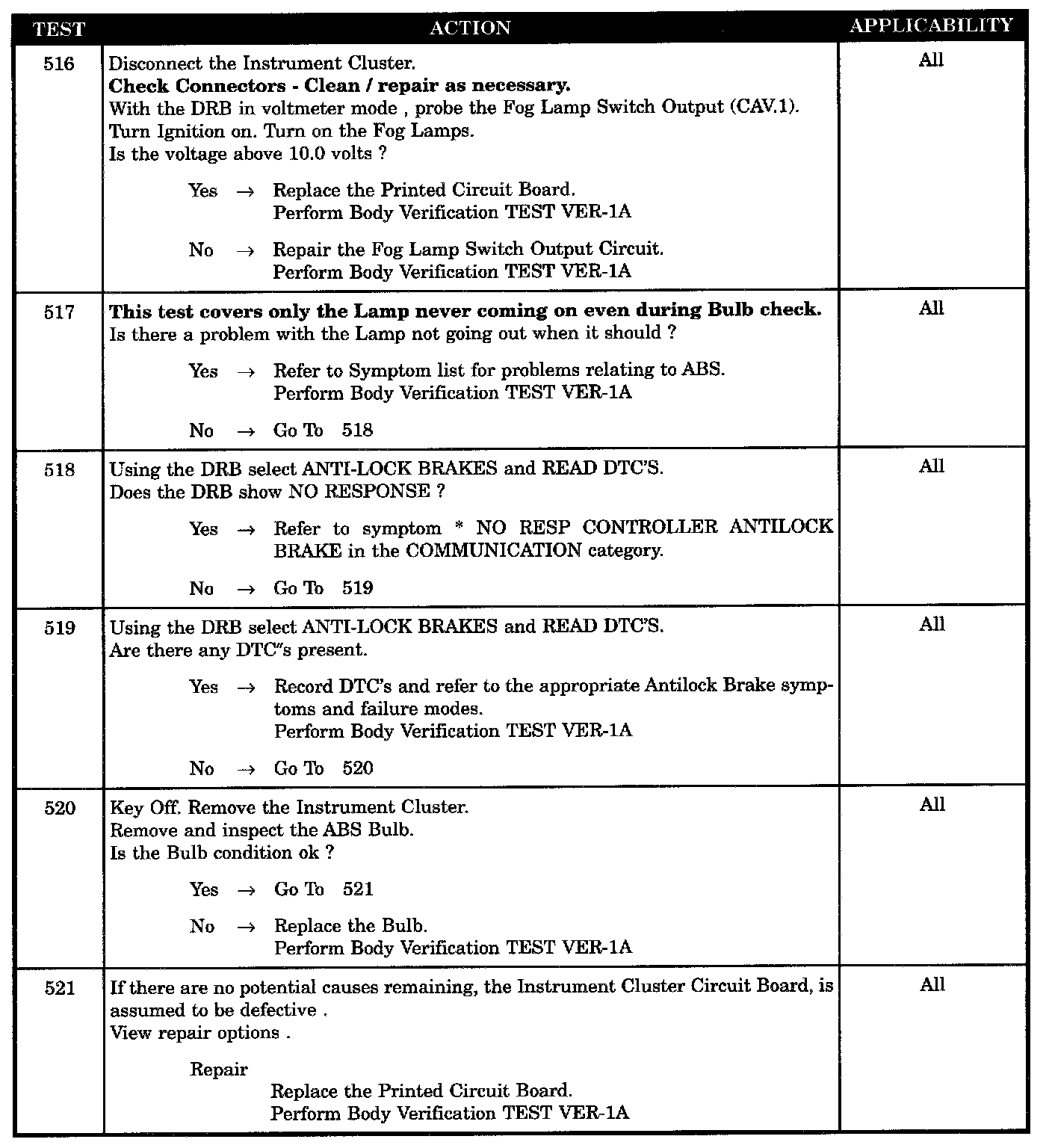

Test 516 - 521:

SYMPTOM
* ANY OR ALL CLUSTER WARNING LAMPS

POSSIBLE CAUSES
- Seat belt lamp stays on
- Turn signal lamps not working
- Exterior head/fog lamps defective
- High beam headlamps not lighting
- High beam indicator lamp not lighting
- Not ABS equipped vehicle
- Park brake operation defective
- BCM highbeam indicator lamp CKT defective
- Fused ignition switch output circuit open
- High beam indicator bulb defective
- Low fuel/lamp bulb defective
- Low oil pressure
- Oil level low
- Oil warning lamp/bulb defective
- Seatbelt warning lamp/bulb defective
- Check engine lamp status on
- Check engine lamp stays on
- Cruise control lamp stays on
- Cruise control lamp SYS failure
- DRB reads charging lamp in yes
- Generator lamp not lighting
- Junction block defective
- ABS warning lamp/bulb defective
- Brake fluid level switch GND circuit open
- Brake warning lamp driver circuit
- Brake warning lamp ground circuit open
- Check engine lamp/bulb defective
- Coolant temperature bulb defective
- Cruise control lamp/bulb defective
- Fog lamp indicator bulb defective
- Fog lamp switch output circuit defective
- Generator lamp/bulb defective
- Left turn signal circuit open
- Oil press switch sense CKT short to GND
- Oil pressure switch sense circuit open
- Red brake warning lamp/bulb defective
- Right turn signal circuit open
- Turn signal bulbs defective
- Coolant temp lamp no function
- Coolant temp lamp stays on
- DRB reads ECT sensor lamp in yes
- ABS warning lamp stays on
- Airbag warning lamp problem
- BCM seatbelt warning lamp output defective
- Defective oil pressure switch
- - DRB shows DTC'S are present
- EATX PRNDL message present
- Instrument cluster circuit board defective
- Instrument cluster defective
- MIC circuit board defective
- Brake fluid level low
- Brake fluid reservior low
- Red brake warning lamp circuit short to GND
- BCM check engine lamp output circuit DEF
- BCM coolant temperature lamp output defect
- BCM cruise control lamp output defective
- BCM generator lamp output circuit defective
- BCM low fuel lamp output defective
- Brake fluid level switch defective
- Defective BCM low fuel lamp output
- Defective brake fluid level switch
- Defective ignition switch
- Defective park brake switch
- Ignition switch defective
- Instrument cluster circuit board defective
- Instrument cluster circuit board defective
- Instrument cluster circuit board faulty
- Instrument cluster CKT BD defect
- Instrument cluster defective
- MIC circuit board defective
- MIC circuit board defective
- Park brake switch defective
- Power control module defective
- Open red brake lamp circuit
- Red brake warning lamp circuit open
- Defective MIC circuit board
- Odometer/trip characters not lighting
- PRNDL characters not lighting
- DRB displays RAM fault
- DRB shows bus operational failure
- Instrument cluster circuit board defect
- Instrument cluster circuit board defective
- MIC circuit board defective
- MIC circuit board defective
- MIC cluster mismatch
- OIL pressure switch defective
